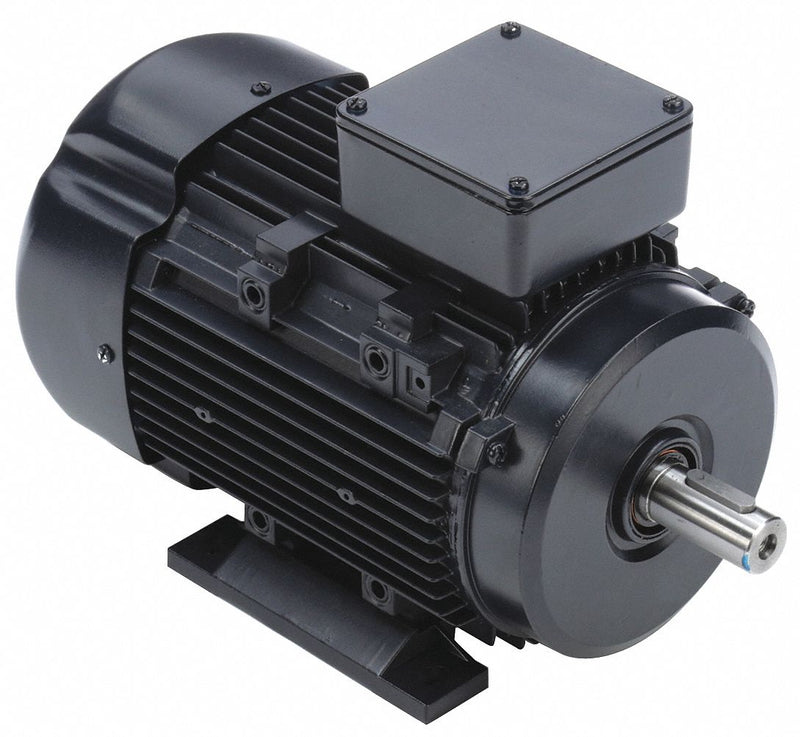

Metric Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 2; kW: 1.49; Nameplate RPM: 1745; Frame: 90L; Voltage: 230/460; Hz: 60/50; Phase: 3; Full Load Amps: 5.4/2.7; Motor Mounting Type: Rigid Base; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Cast Aluminum; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 24 mm; Shaft Length: 50 mm; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 94.5 %; CC Number: CC003A; Duty: Continuous; Standards: CE Certified, CSA Certified, UL Recognized; Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460; Green Certification or Other Recognition: NEMA Premium(R) Rated
| Item | Metric Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 2 |
| kW | 1.49 |
| Nameplate RPM | 1745 |
| Frame | 90L |
| Voltage | 230/460 |
| Hz | 60/50 |
| Phase | 3 |
| Full Load Amps | 5.4/2.7 |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Aluminum |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 24 mm |
| Shaft Length | 50 mm |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 94.5 % |
| CC Number | CC003A |
| Duty | Continuous |
| Standards | CE Certified, CSA Certified, UL Recognized |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
