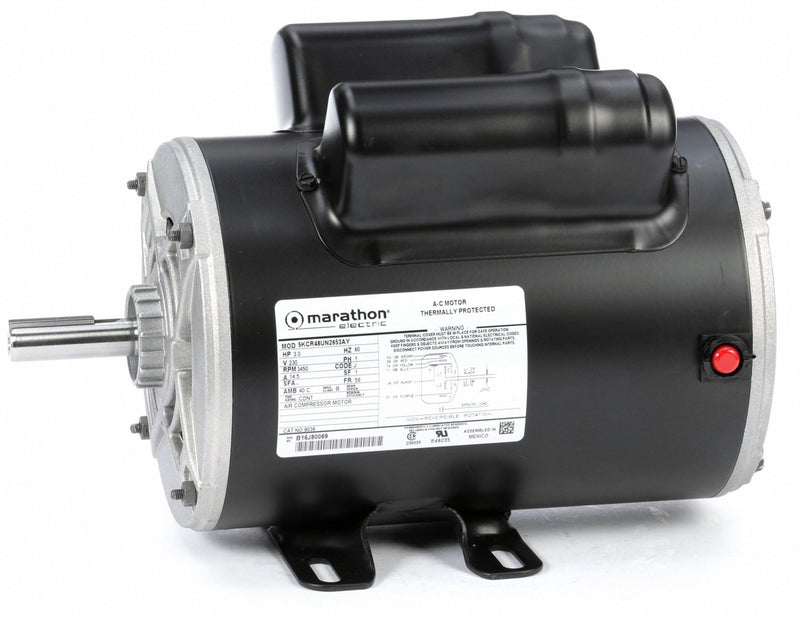

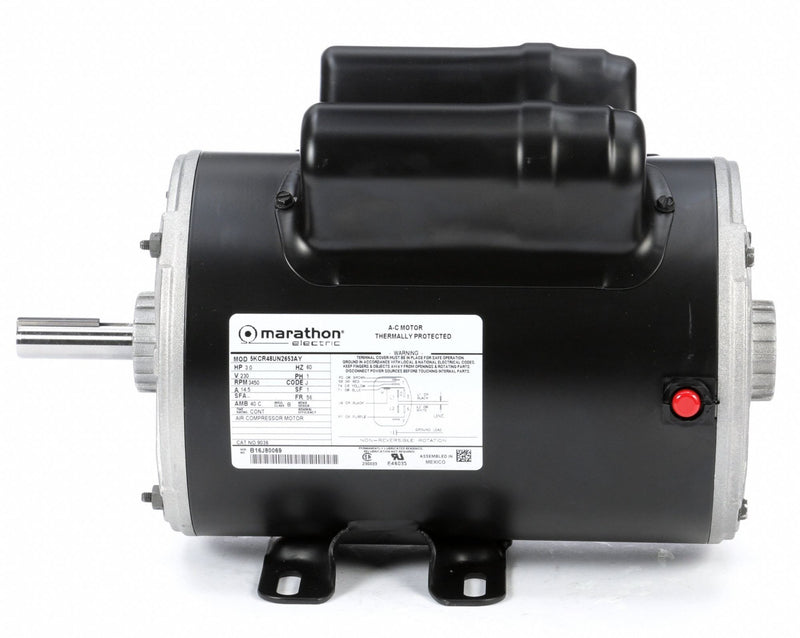

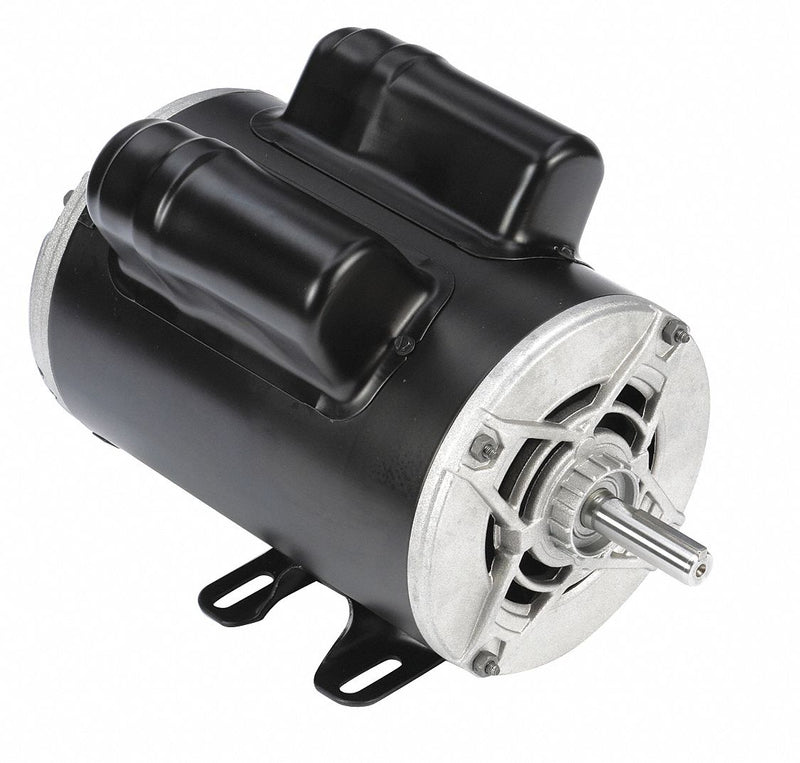

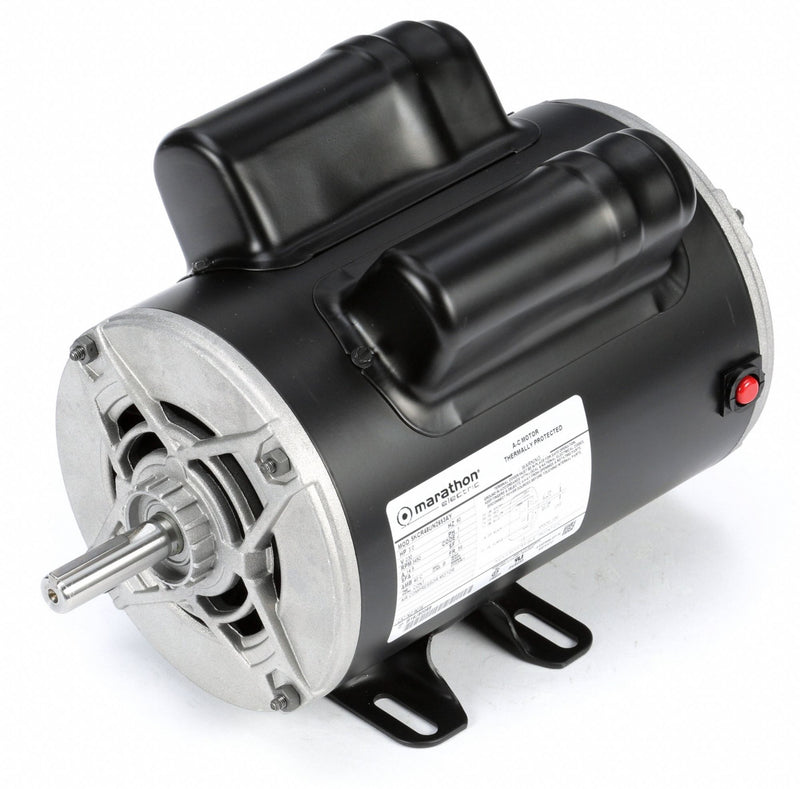

1-Phase Commercial-Duty Open Dripproof Air Compressor Motors,Type: capacitor-start Mounting: rigid welded base Max. ambient: 40C Bearings: ball,Direct replacements for selected air compressors including Dayton, Speedaire, Ingersoll-Rand, Campbell Hausfeld, Sanborn, Champion, Coleman, Quincy, and others. Mechanical features provide long life in high-tension, belt-type loads, which typically shorten motor life. High breakdown torque ensures dependable service.,UL Recognized and CSA Certified.,Note: Use on other applications voids warranty.
| Item | Commercial Duty Air Compressor Motor |
| Motor Application | Air Compressor |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| HP | 3 |
| Nameplate RPM | 3450 |
| Frame | 56 |
| Voltage | 230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 14.5 |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | Manual |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Design | Keyed |
| Overall Length | 11 15/16 in |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Duty | Continuous |
| Standards | CSA Certified, UL Recognized |
| Capacitor Included | Yes |
