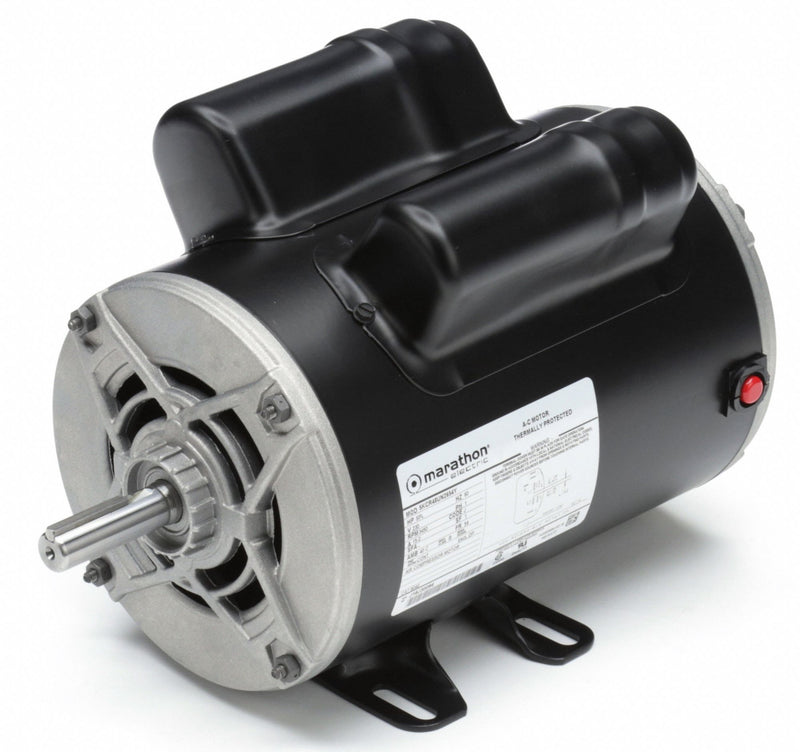

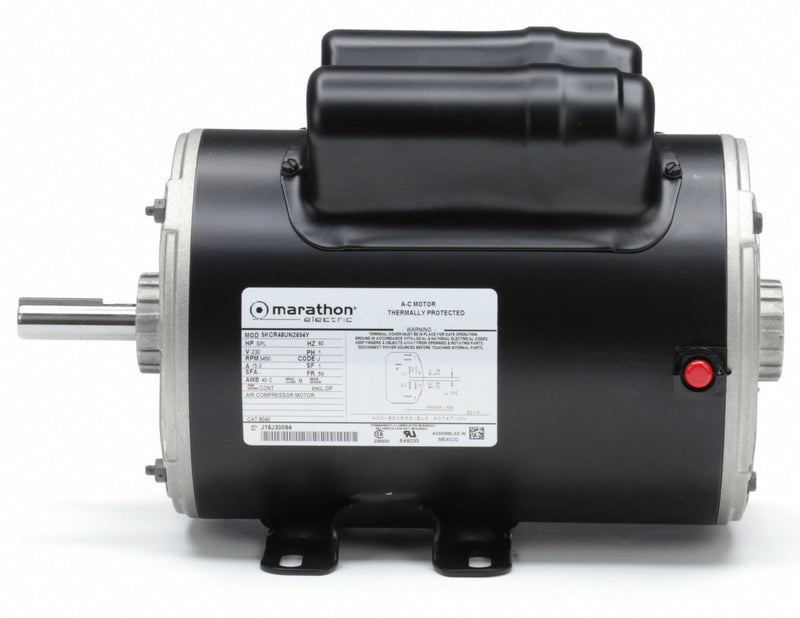

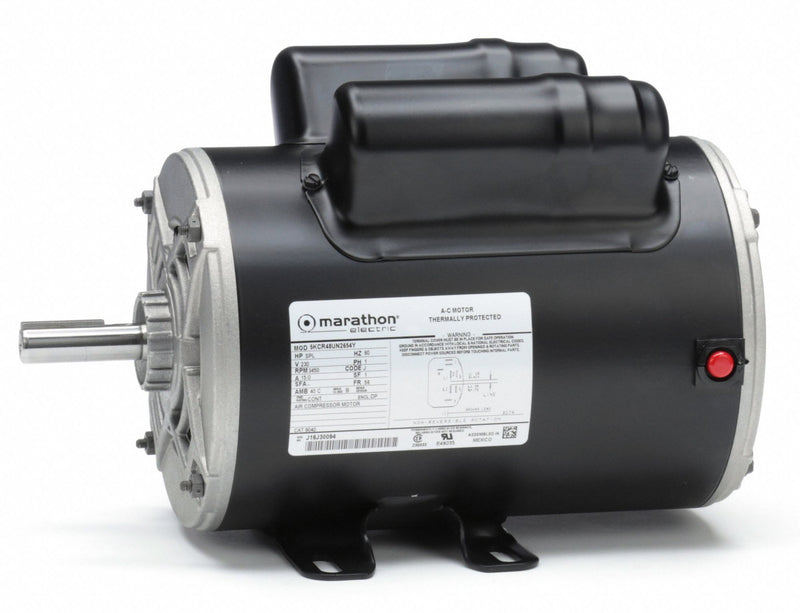

Marathon Motors 3 HP Commercial Duty Air Compressor Motor,Capacitor-Start/Run,3450 Nameplate RPM,230 Voltage - 5KCR48UN2654Y

MarathonSKU: C1556800
MPN : 5KCR48UN2654Y
Weight : 35.0 lb
filler

Price:
$668.16 $814.83

Availability : Usually Ships in 1-3 Business Days

1-Phase Commercial-Duty Open Dripproof Air Compressor Motors,Type: capacitor-start Mounting: rigid welded base Max. ambient: 40C Bearings: ball,Direct replacements for selected air compressors including Dayton, Speedaire, Ingersoll-Rand, Campbell Hausfeld, Sanborn, Champion, Coleman, Quincy, and others. Mechanical features provide long life in high-tension, belt-type loads, which typically shorten motor life. High breakdown torque ensures dependable service.,UL Recognized and CSA Certified.,Note: Use on other applications voids warranty.

ItemCommercial Duty Air Compressor Motor
Motor ApplicationAir Compressor
Motor DesignCapacitor-Start/Run
Motor Enclosure DesignOpen Dripproof
HP3
Nameplate RPM3450
Frame56
Voltage230
Hz60
Phase1
Full Load Amps15
Motor Mounting TypeRigid Base
Motor Thermal ProtectionManual
Ins. ClassB
Motor Service Factor1
Motor BearingsBall
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCCWSE
Motor Shaft DesignKeyed
Shaft Dia.5/8 in
Shaft Length1 7/8 in
DutyContinuous
StandardsCSA Certified, UL Recognized
Capacitor IncludedYes
