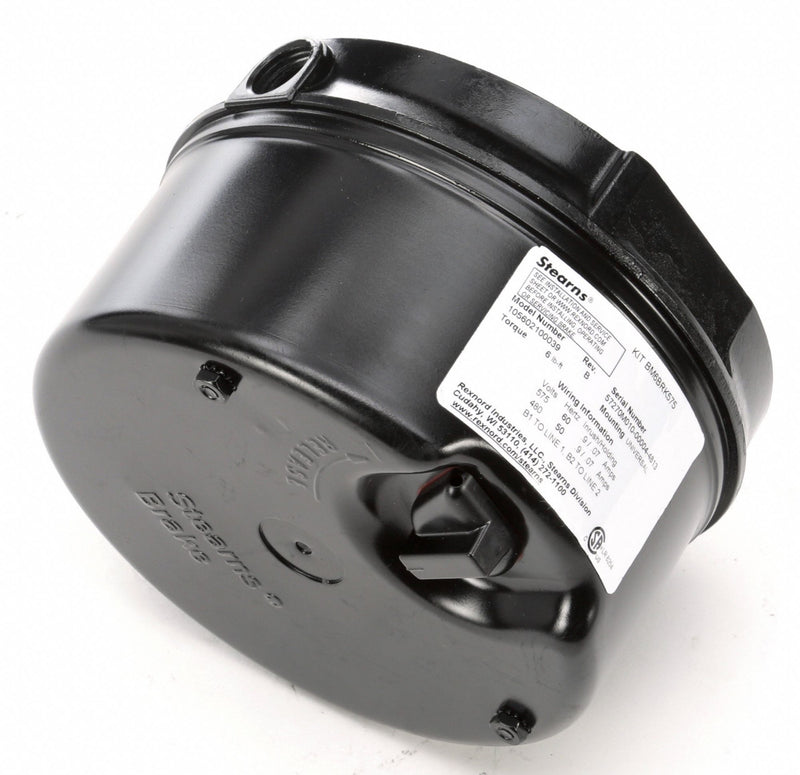

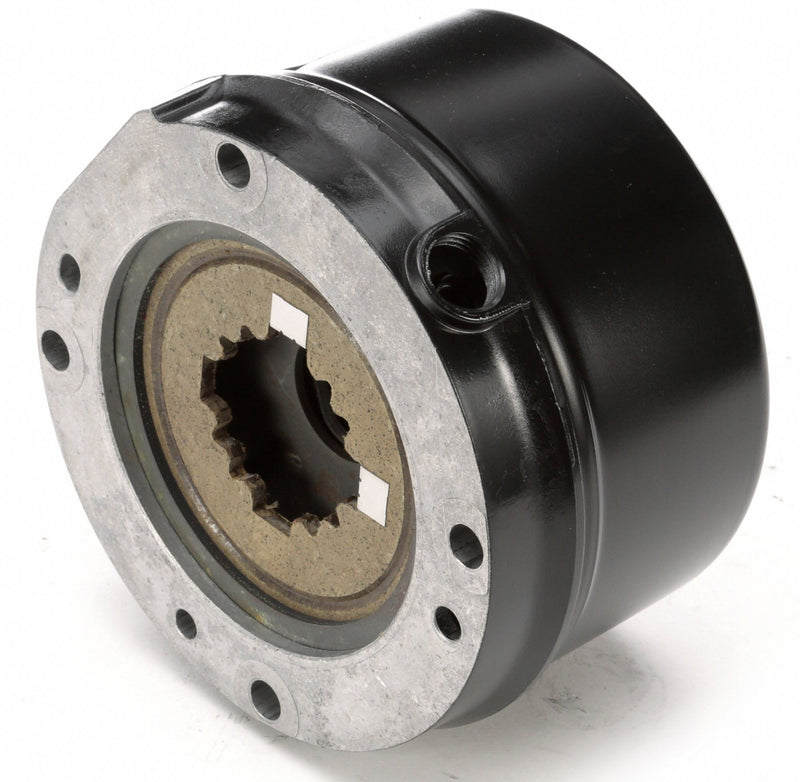

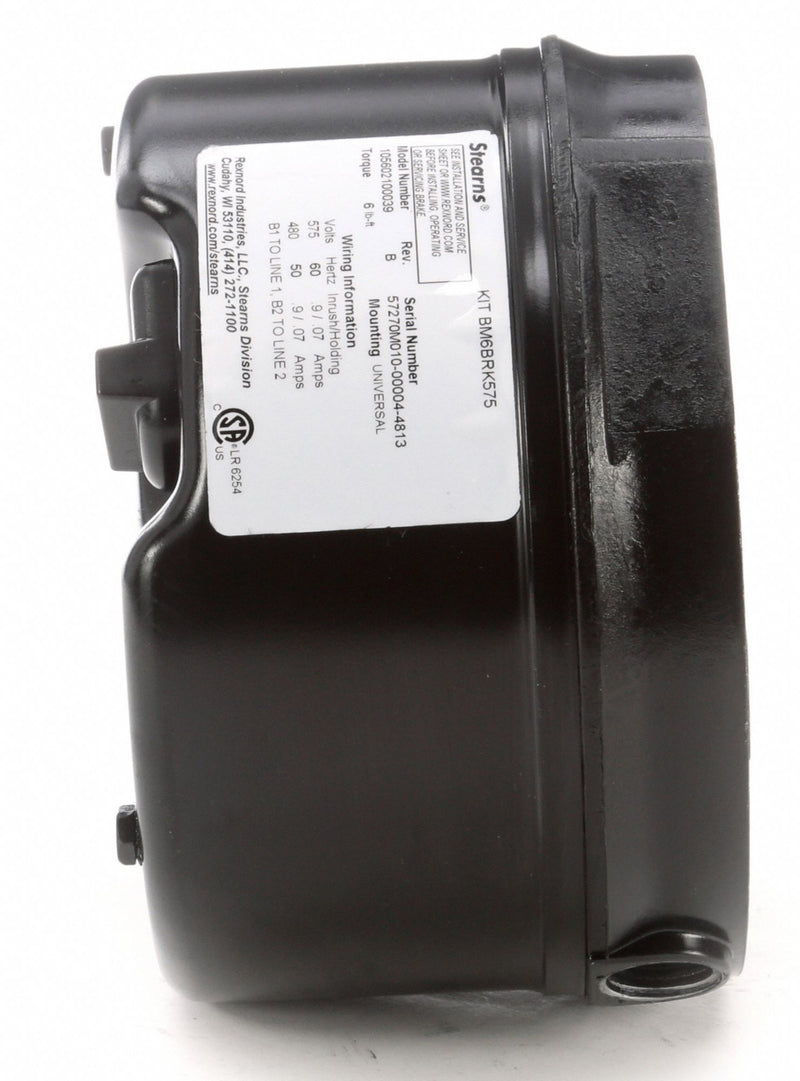

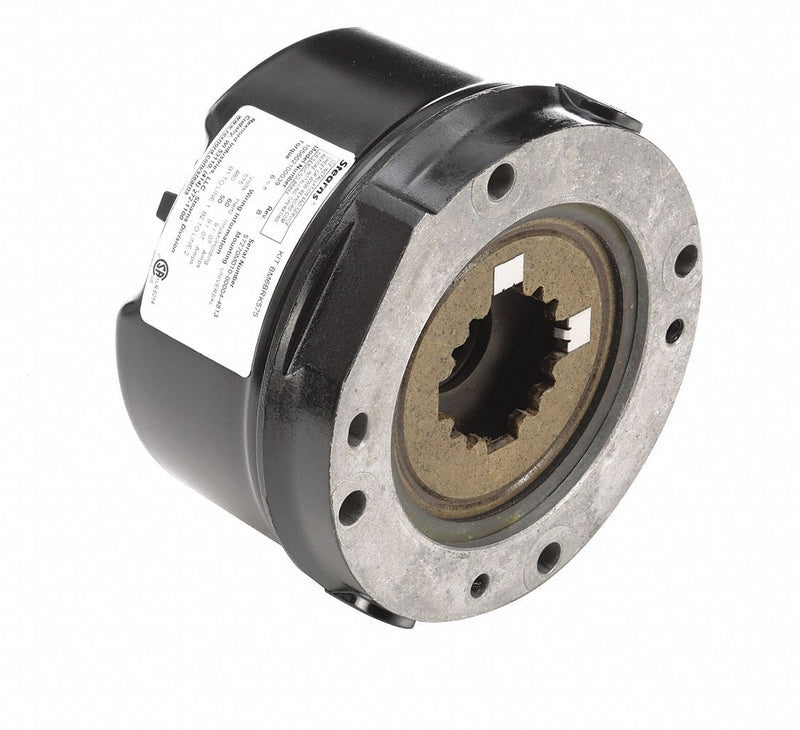

This brake kit is designed specifically for use with vector duty motors. The kit easily installs on back of the motor to convert from unit-mount to brake-mount use. Mounting hardware is included.
| Item | Motor Brake Kit |
| Static Torque | 6 lb-ft |
| For Use With | Black Max Motors |
| RPM Range | 2X Motor Base Speed |
| Voltage | 575 |
| Hz | 60/50 |
| Phase | 3 |
| Holding Amps | 0.9 |
| Inrush Amps | 0.07 |
| Mounting | Face |
| Max. Ambient Temperature | 40 Degrees C |
| Enclosure | IP23 |
| Enclosure Material | Cast Iron/Rolled Steel |
| Wire Termination | Flying Leads |
| Diameter | 6 9/16 in |
| Overall Length | 4.75-28 V DC |
| ODE Shaft Diameter | -15 Degrees to 60 Degrees C |
| Standards | CSA Certified |
| Manufacturers Warranty Length | 3 yr |
| Requires | Black Max Motor |
| Mfr. Stock No. | 105602100BNF |
| Includes | Mounting Hardware |
