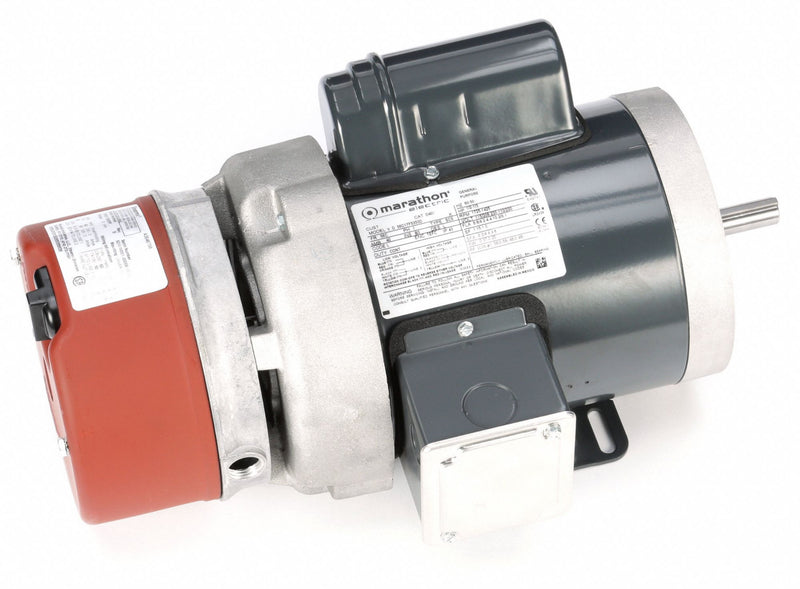

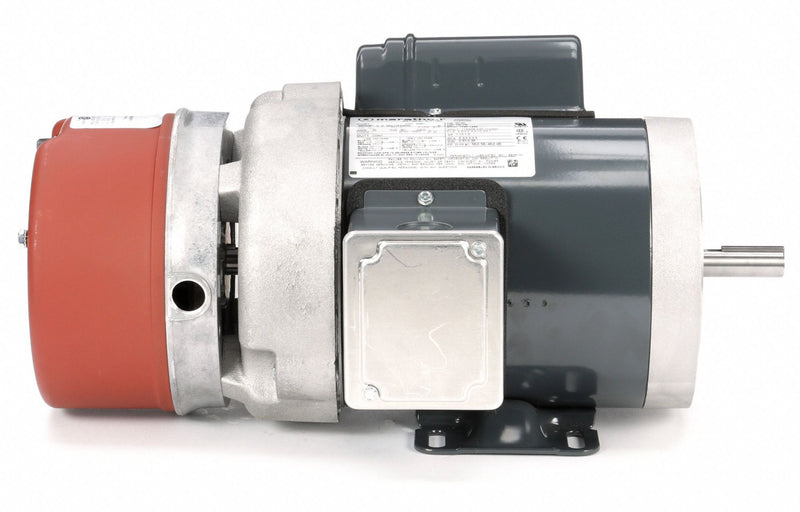

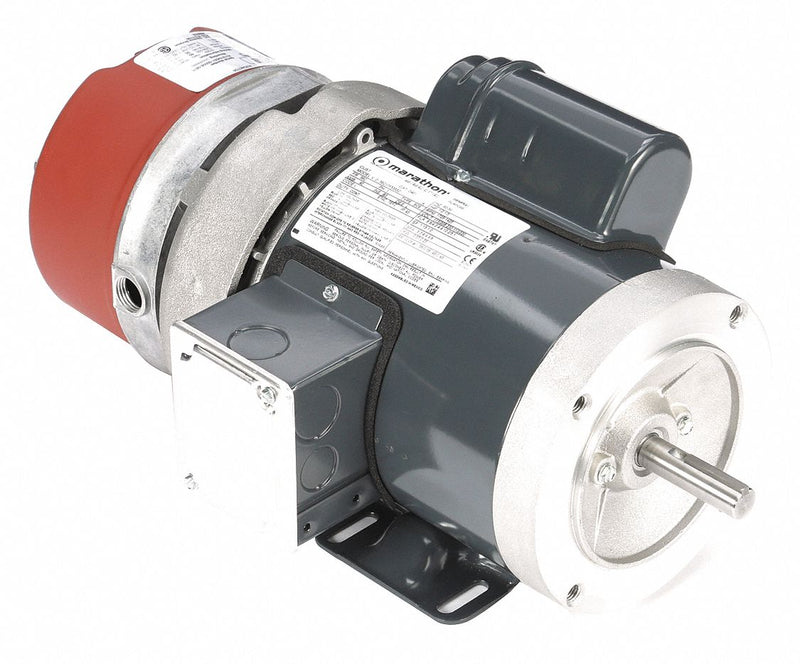

Marathon Motors 1/2 HP Brake Motor,Capacitor-Start,1725 Nameplate RPM,115/208-230 Voltage,Frame 56C - 056C17F5353

MarathonSKU: C1543899
MPN : 056C17F5353
Weight : 33.15 lb
filler

Price:
$792.55 $966.52

Availability : Usually Ships in 1-3 Business Days

Brake motor is powerful enough to hold action at a standstill in power-off state. Suitable for conveyors, index mechanisms, machine tools, and commercial and industrial overhead doors.

ItemBrake Motor
Motor ApplicationBrake Motor
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1/2
Nameplate RPM1725
Frame56C
Voltage115/208-230
Hz60
Phase1
Full Load Amps8.8/4.2-4.4
Motor Mounting TypeRigid Base
Brake Rating3 ft-lb
Motor Thermal ProtectionNone
Ins. ClassB
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Ambient Temperature40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length2 1/16 in
Length Less Shaft14 1/8 in
Nominal Efficiency66 %
Motor Efficiency GroupStandard Efficient
RPM Range1701-1800
Voltage Compatibility115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240
