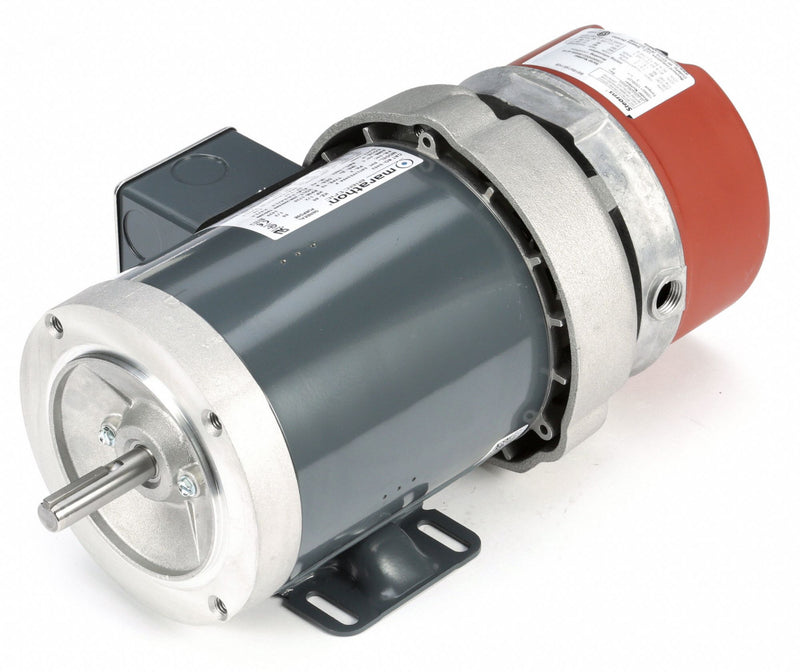

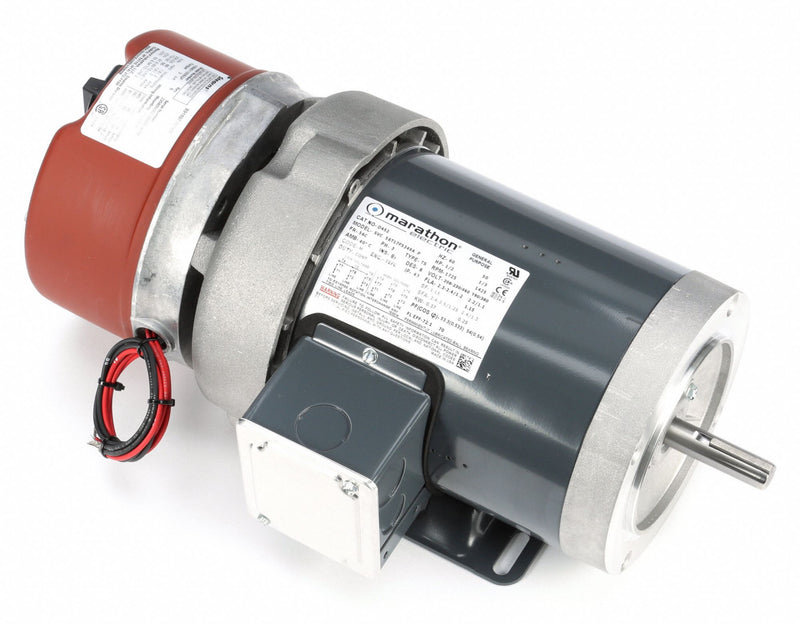

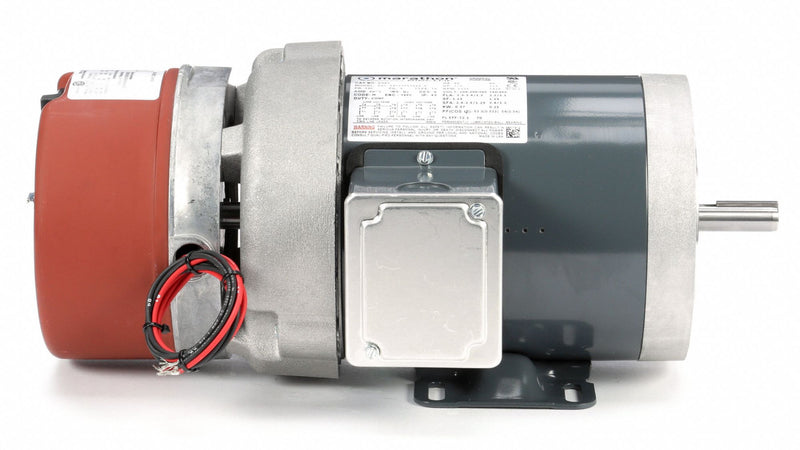

Brake motor is powerful enough to hold action at a standstill in power-off state. Suitable for conveyors, index mechanisms, machine tools, and commercial and industrial overhead doors.
| Item | Brake Motor |
| Motor Application | Brake Motor |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1/2 |
| Nameplate RPM | 1725 |
| Frame | 56C |
| Voltage | 208-230/460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 2.3-2.4/1.2 |
| Motor Mounting Type | Face |
| Brake Rating | 3 ft-lb |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Ambient Temperature | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/16 in |
| Length Less Shaft | 14 3/16 in |
| Nominal Efficiency | 72 % |
| Motor Efficiency Group | Standard Efficient |
| RPM Range | 1701-1800 |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460 |
