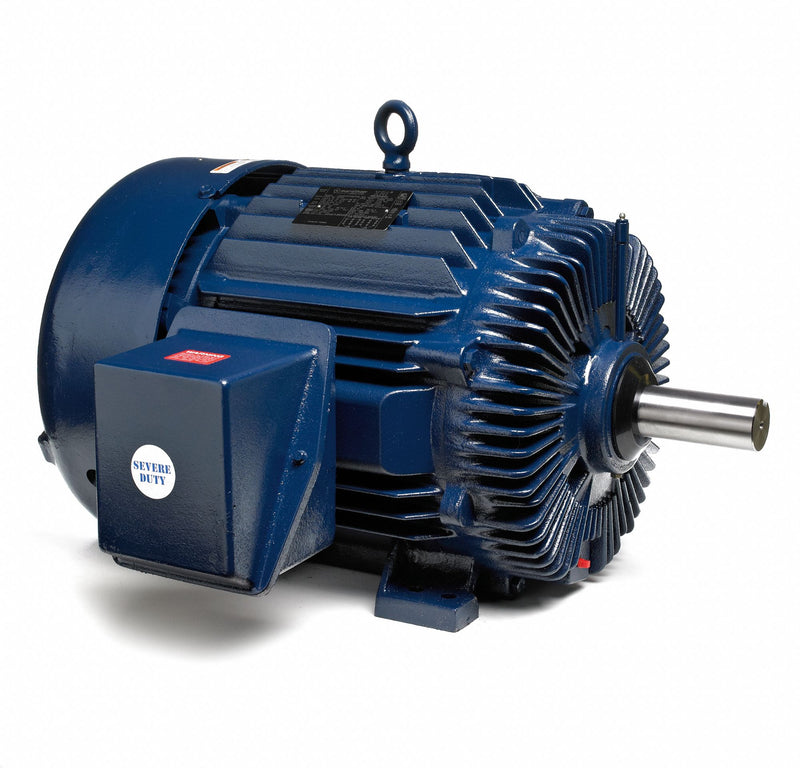

Cooling Tower Motor; Motor Application: Cooling Tower; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 125; Nameplate RPM: 1785; Frame: 444T; Motor Shaft Rotation: CW/CCW; Voltage: 220/440; Full Load Amps: 145; Phase: 3; Hz: 60/50; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Motor Thermal Protection: None; Motor Service Factor: 1.15; Ambient Temperature: 40 Degrees C; Shaft Dia.: 3 3/8 in; Shaft Length: 8 3/4 in; Length Less Shaft: 34 5/8 in; Overall Length: 43 3/8 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 86.5 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; Finish: Blue Epoxy; Standards: CSA (LR2025), IP55, UL (E49747; Warranty: 1 yr; RPM Range: 1701-1800; Voltage Compatibility: 208-230/460, 460
| Item | Cooling Tower Motor |
| Motor Application | Cooling Tower |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 125 |
| Nameplate RPM | 1785 |
| Frame | 444T |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 220/440 |
| Full Load Amps | 145 |
| Phase | 3 |
| Hz | 60/50 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 3 3/8 in |
| Shaft Length | 8 3/4 in |
| Length Less Shaft | 34 5/8 in |
| Overall Length | 43 3/8 in |
| Ins. Class | F |
| Duty | Continuous |
| Nominal Efficiency | 86.5 % |
| CC Number | CC003A |
| Motor Efficiency Group | NEMA Premium Efficient |
| Finish | Blue Epoxy |
| Standards | CSA (LR2025), IP55, UL (E49747 |
| Warranty | 1 yr |
| RPM Range | 1701-1800 |
| Voltage Compatibility | 208-230/460, 460 |
