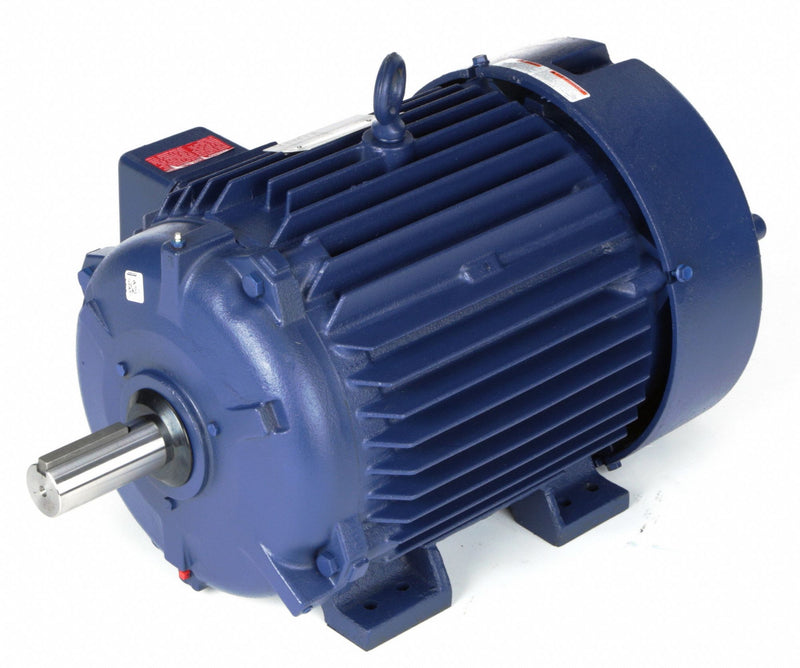

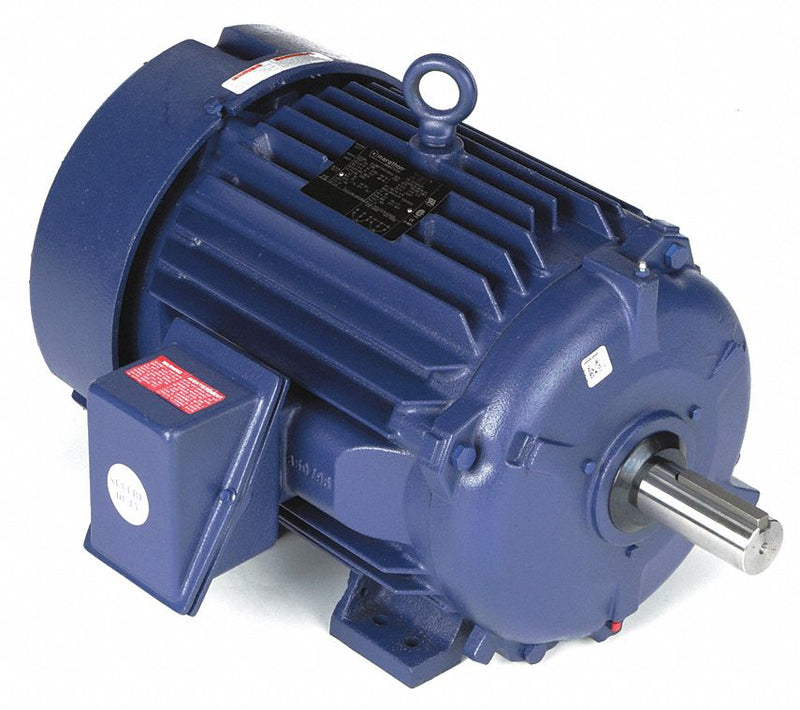

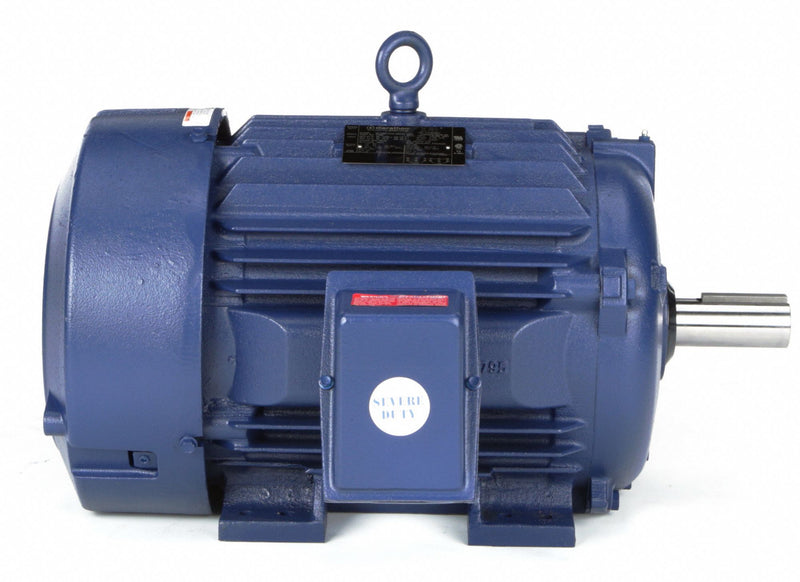

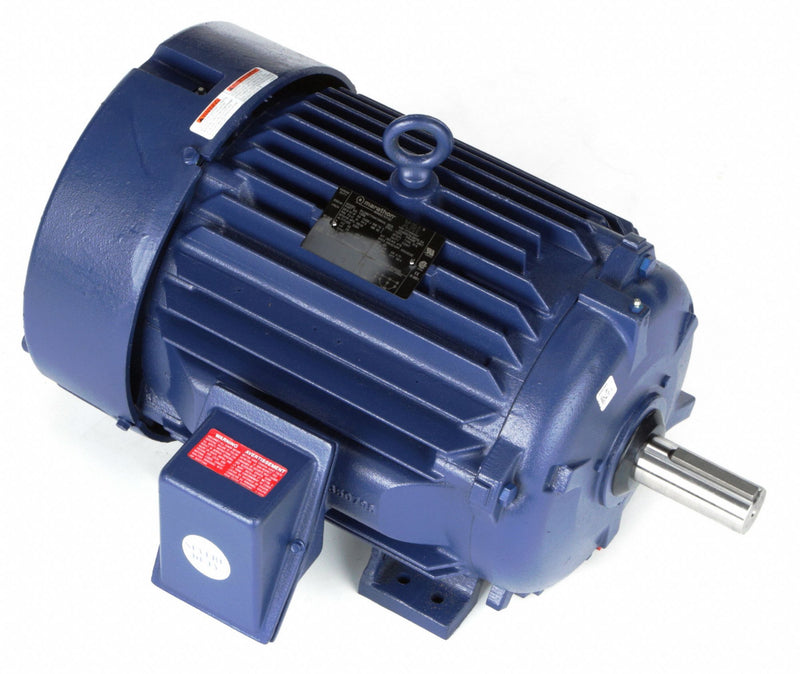

Marathon Motors 6 1/4, 25 HP Cooling Tower Motor,3-Phase,1775/880 Nameplate RPM,230/460 Voltage,Frame 286T - 286TTFNA7260

MarathonSKU: C1509125
MPN : 286TTFNA7260
Weight : 468.0 lb
filler

Price:
$5,798.83 $7,071.74

Availability : Usually Ships in 3 Business Days

Cooling Tower Motor; Motor Application: Cooling Tower; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 6 1/4, 25; Nameplate RPM: 1775/880; Frame: 286T; Motor Shaft Rotation: CW/CCW; Voltage: 230/460; Full Load Amps: 31/11; Phase: 3; Hz: 60; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Motor Thermal Protection: None; Motor Service Factor: 1.15; Ambient Temperature: 40 Degrees C; Shaft Dia.: 1 7/8 in; Shaft Length: 4 13/16 in; Length Less Shaft: 22 7/8 in; Overall Length: 27 11/16 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 95.4 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; Finish: Blue Epoxy; Standards: CSA (LR2025), UL (E49747); Warranty: 1 yr; RPM Range: 1701-1800; Voltage Compatibility: 208-230/460, 460

ItemCooling Tower Motor
Motor ApplicationCooling Tower
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP6 1/4, 25
Nameplate RPM1775/880
Frame286T
Motor Shaft RotationCW/CCW
Voltage230/460
Full Load Amps31/11
Phase3
Hz60
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor BearingsBall
Motor Frame MaterialCast Iron
Motor Thermal ProtectionNone
Motor Service Factor1.15
Ambient Temperature40 Degrees C
Shaft Dia.1 7/8 in
Shaft Length4 13/16 in
Length Less Shaft22 7/8 in
Overall Length27 11/16 in
Ins. ClassF
DutyContinuous
Nominal Efficiency95.4 %
CC NumberCC003A
Motor Efficiency GroupNEMA Premium Efficient
FinishBlue Epoxy
StandardsCSA (LR2025), UL (E49747)
Warranty1 yr
RPM Range1701-1800
Voltage Compatibility208-230/460, 460
