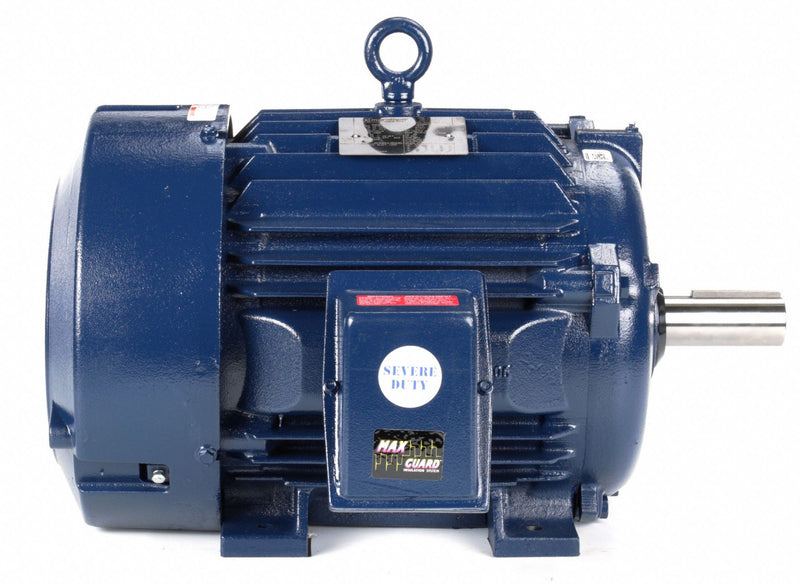

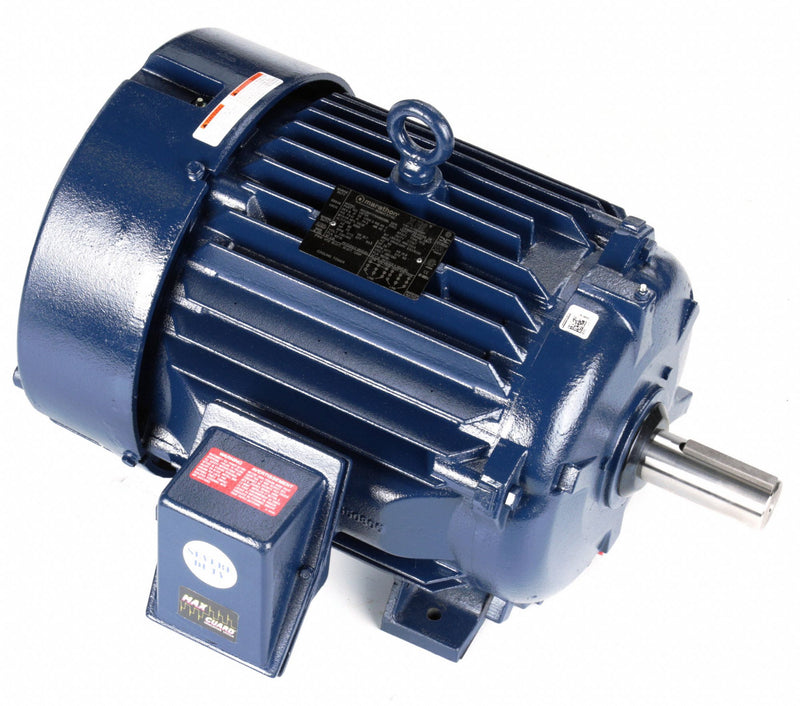

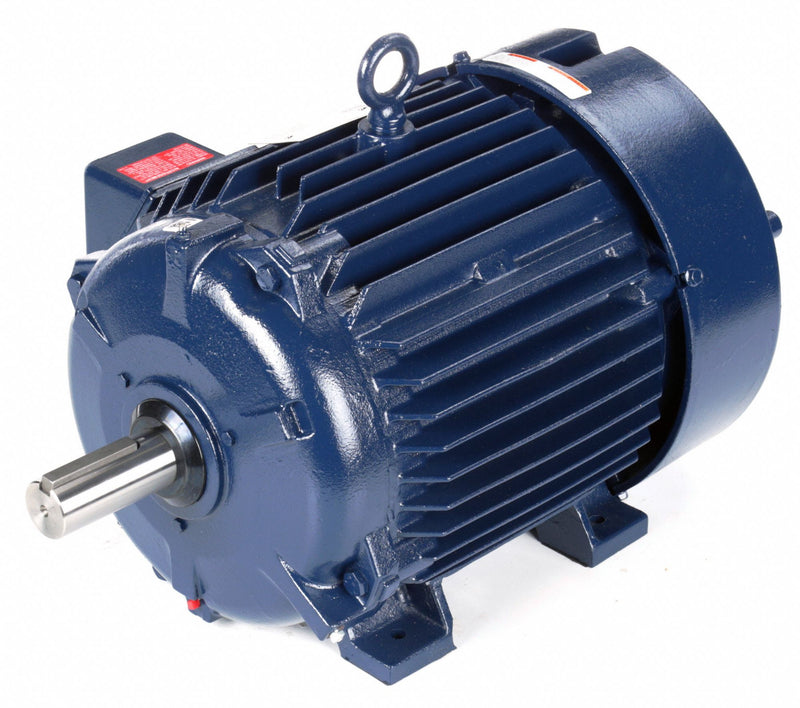

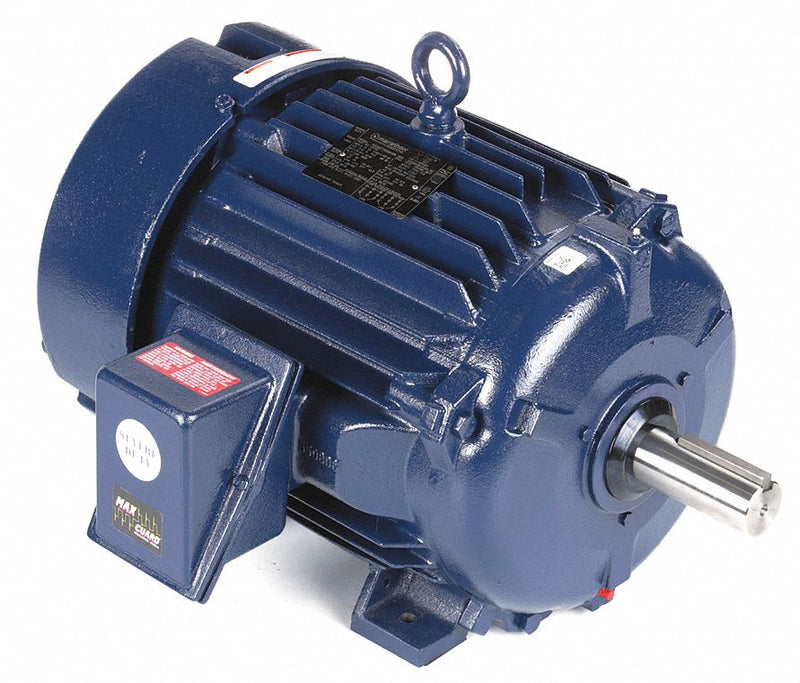

Marathon Motors 25 HP Cooling Tower Motor,3-Phase,1772 Nameplate RPM,230/460 Voltage,Frame 284T - 284TTFNA16832

MarathonSKU: C1488352
MPN : 284TTFNA16832
Weight : 468.0 lb
filler

Price:
$4,589.38 $5,596.80

Availability : Usually Ships in 1-3 Business Days

Cooling Tower Motor; Motor Application: Cooling Tower; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 25; Nameplate RPM: 1772; Frame: 284T; Motor Shaft Rotation: CW/CCW; Voltage: 230/460; Full Load Amps: 62/31; Phase: 3; Hz: 60/50; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Motor Thermal Protection: None; Motor Service Factor: 1.15; Ambient Temperature: 40 Degrees C; Shaft Dia.: 1 7/8 in; Shaft Length: 4 13/16 in; Length Less Shaft: 21 3/8 in; Overall Length: 26 3/16 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 95.4 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; Finish: Blue Epoxy; Standards: CSA (LR2025), IP55, UL (E49747; Warranty: 1 yr; RPM Range: 1701-1800; Voltage Compatibility: 220-230/460, 230/460, 460

ItemCooling Tower Motor
Motor ApplicationCooling Tower
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP25
Nameplate RPM1772
Frame284T
Motor Shaft RotationCW/CCW
Voltage230/460
Full Load Amps62/31
Phase3
Hz60/50
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor BearingsBall
Motor Frame MaterialCast Iron
Motor Thermal ProtectionNone
Motor Service Factor1.15
Ambient Temperature40 Degrees C
Shaft Dia.1 7/8 in
Shaft Length4 13/16 in
Length Less Shaft21 3/8 in
Overall Length26 3/16 in
Ins. ClassF
DutyContinuous
Nominal Efficiency95.4 %
CC NumberCC003A
Motor Efficiency GroupNEMA Premium Efficient
FinishBlue Epoxy
StandardsCSA (LR2025), IP55, UL (E49747
Warranty1 yr
RPM Range1701-1800
Voltage Compatibility220-230/460, 230/460, 460
