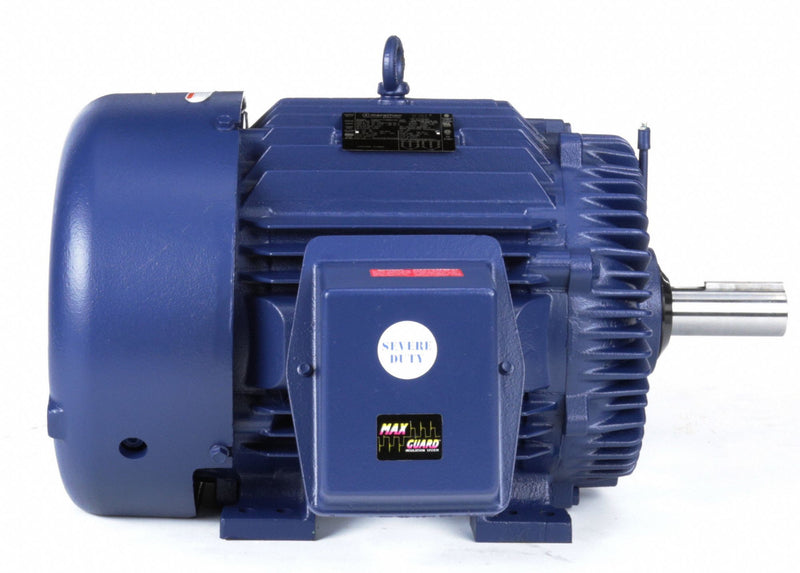

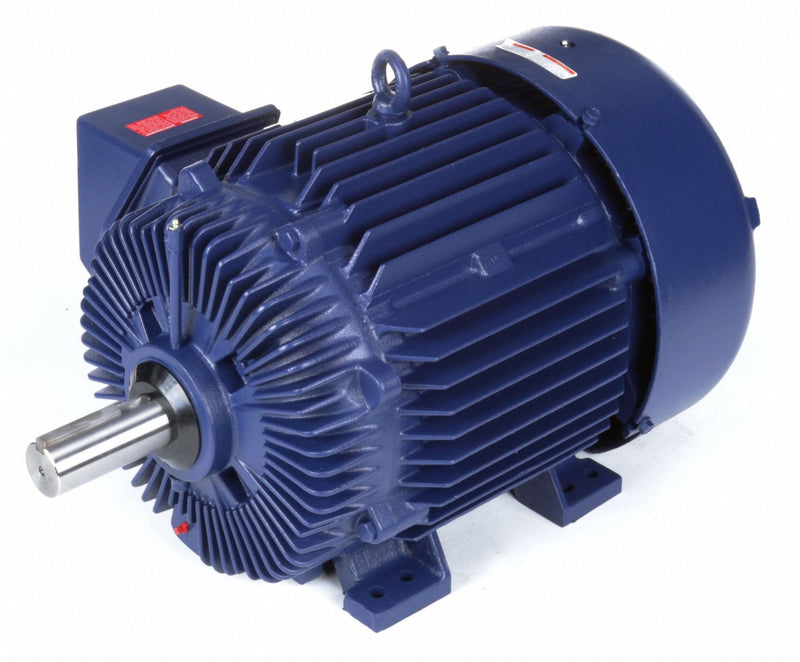

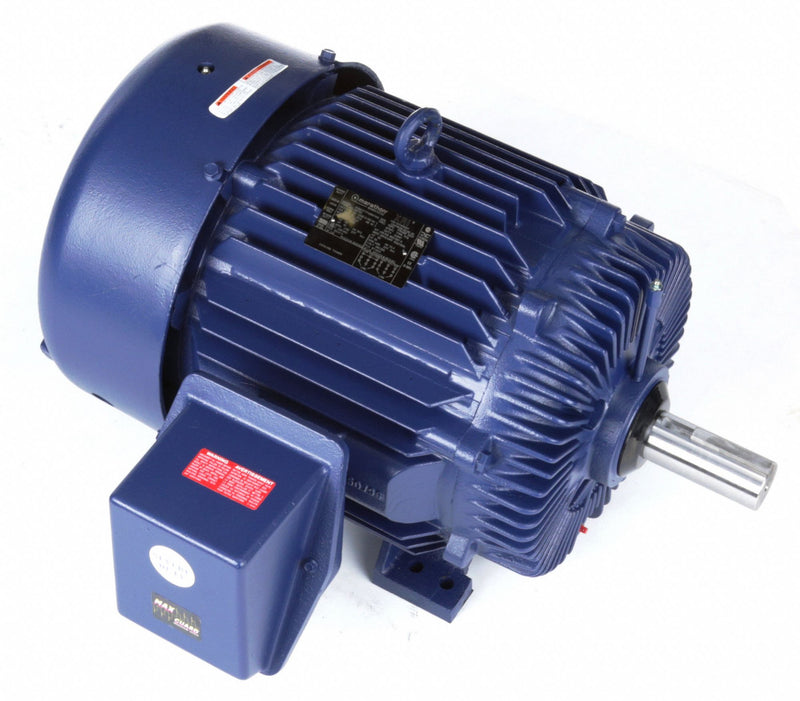

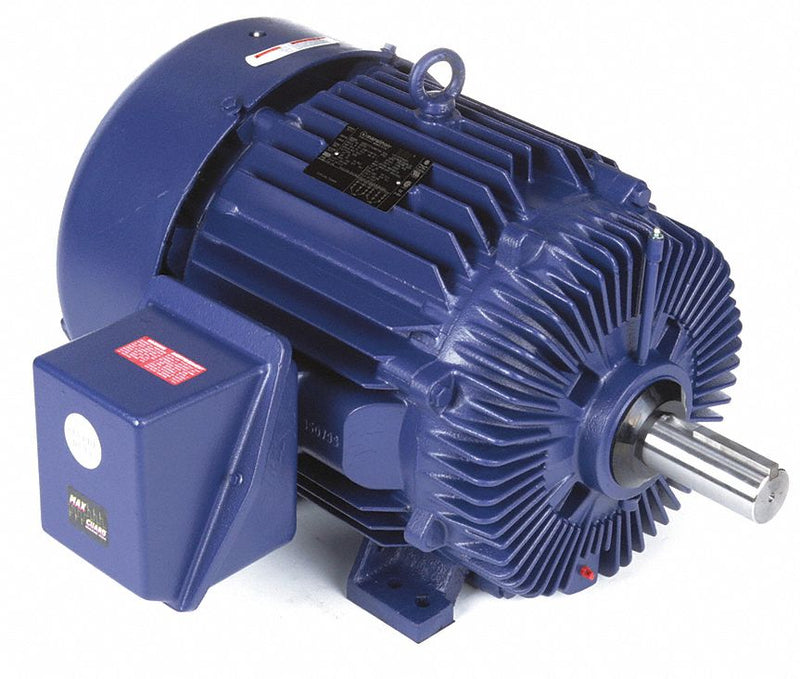

Marathon Motors 40 HP Cooling Tower Motor,3-Phase,1780 Nameplate RPM,230/460 Voltage,Frame 324T - 324TTFS16837

MarathonSKU: C1509134
MPN : 324TTFS16837
Weight : 662.0 lb
filler

Price:
$7,764.39 $9,468.77

Availability : Usually Ships in 10-15 Business Days

Cooling Tower Motor; Motor Application: Cooling Tower; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 40; Nameplate RPM: 1780; Frame: 324T; Motor Shaft Rotation: CW/CCW; Voltage: 230/460; Full Load Amps: 95/47.5; Phase: 3; Hz: 60/50; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Motor Thermal Protection: None; Motor Service Factor: 1.15; Ambient Temperature: 40 Degrees C; Shaft Dia.: 2 1/8 in; Shaft Length: 5 1/2 in; Length Less Shaft: 24 7/8 in; Overall Length: 30 3/8 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 96.2 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; Finish: Blue Epoxy; Standards: CSA (LR2025), IP55, UL (E49747; Warranty: 1 yr; RPM Range: 1701-1800; Voltage Compatibility: 220-230/460, 230/460, 460

ItemCooling Tower Motor
Motor ApplicationCooling Tower
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP40
Nameplate RPM1780
Frame324T
Motor Shaft RotationCW/CCW
Voltage230/460
Full Load Amps95/47.5
Phase3
Hz60/50
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor BearingsBall
Motor Frame MaterialCast Iron
Motor Thermal ProtectionNone
Motor Service Factor1.15
Ambient Temperature40 Degrees C
Shaft Dia.2 1/8 in
Shaft Length5 1/2 in
Length Less Shaft24 7/8 in
Overall Length30 3/8 in
Ins. ClassF
DutyContinuous
Nominal Efficiency96.2 %
CC NumberCC003A
Motor Efficiency GroupNEMA Premium Efficient
FinishBlue Epoxy
StandardsCSA (LR2025), IP55, UL (E49747
Warranty1 yr
RPM Range1701-1800
Voltage Compatibility220-230/460, 230/460, 460
