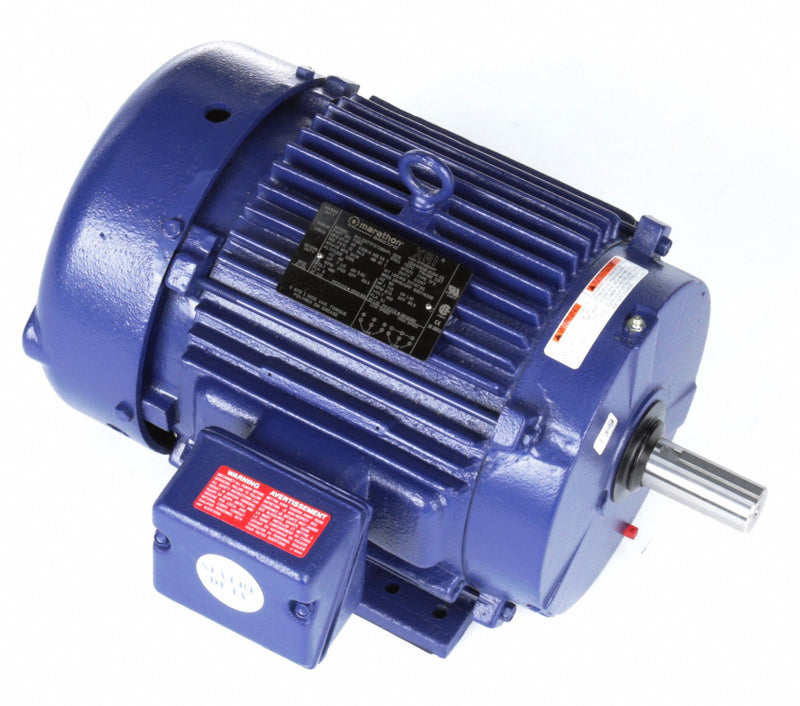

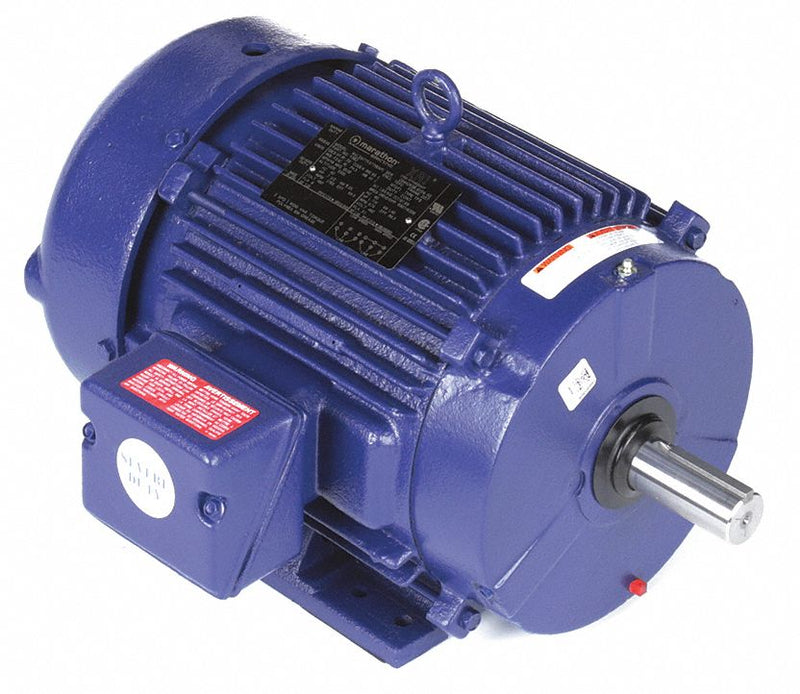

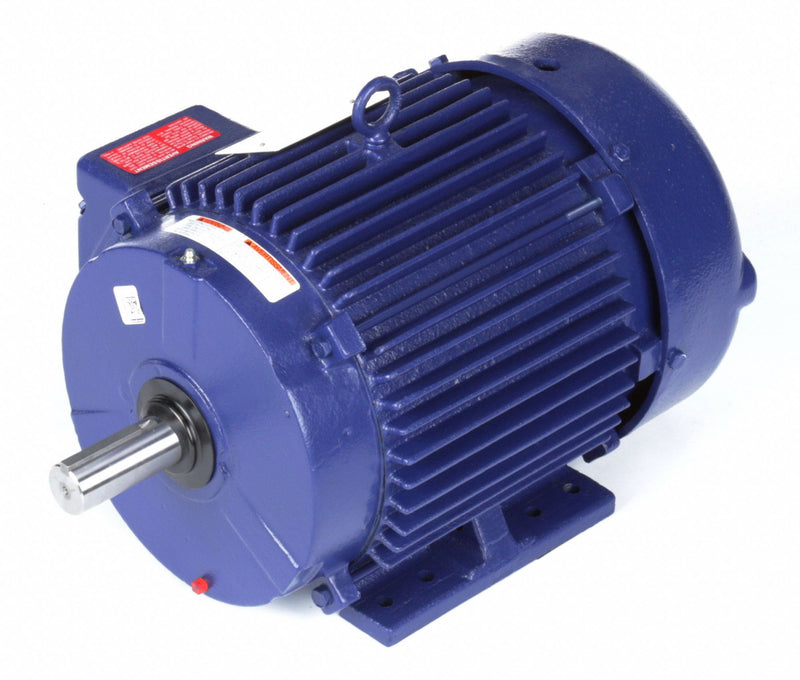

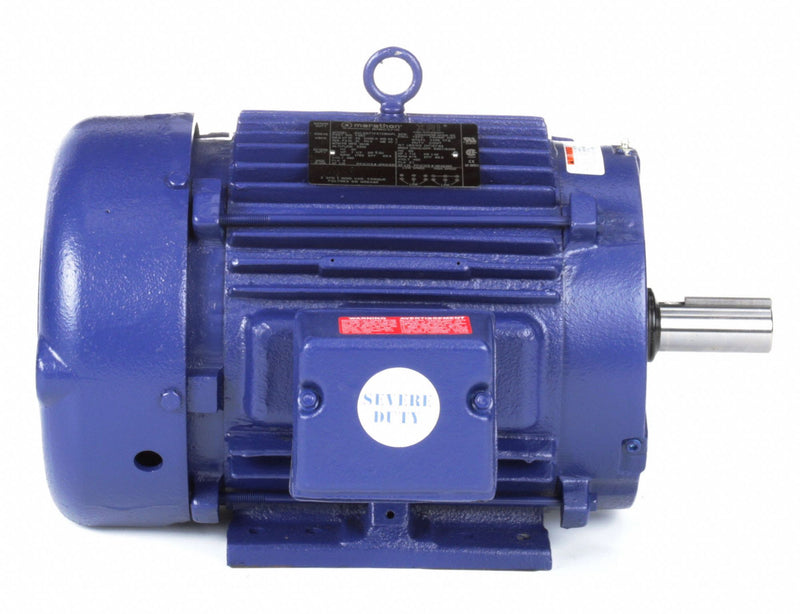

Cooling Tower Motor; Motor Application: Cooling Tower; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1 29/32, 7 1/2; Nameplate RPM: 1765/875; Frame: 215T; Motor Shaft Rotation: CW/CCW; Voltage: 460; Full Load Amps: 9/3.1; Phase: 3; Hz: 60; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Motor Thermal Protection: None; Motor Service Factor: 1.15; Ambient Temperature: 40 Degrees C; Shaft Dia.: 1 3/8 in; Shaft Length: 3 9/16 in; Length Less Shaft: 16 3/16 in; Overall Length: 19 3/4 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 90.2 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; Finish: Blue Epoxy; Standards: CSA (LR2025), UL (E49747); Warranty: 1 yr; RPM Range: 1701-1800; Voltage Compatibility: 208-230/460, 460
| Item | Cooling Tower Motor |
| Motor Application | Cooling Tower |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1 29/32, 7 1/2 |
| Nameplate RPM | 1765/875 |
| Frame | 215T |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 460 |
| Full Load Amps | 9/3.1 |
| Phase | 3 |
| Hz | 60 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 1 3/8 in |
| Shaft Length | 3 9/16 in |
| Length Less Shaft | 16 3/16 in |
| Overall Length | 19 3/4 in |
| Ins. Class | F |
| Duty | Continuous |
| Nominal Efficiency | 90.2 % |
| CC Number | CC003A |
| Motor Efficiency Group | NEMA Premium Efficient |
| Finish | Blue Epoxy |
| Standards | CSA (LR2025), UL (E49747) |
| Warranty | 1 yr |
| RPM Range | 1701-1800 |
| Voltage Compatibility | 208-230/460, 460 |
