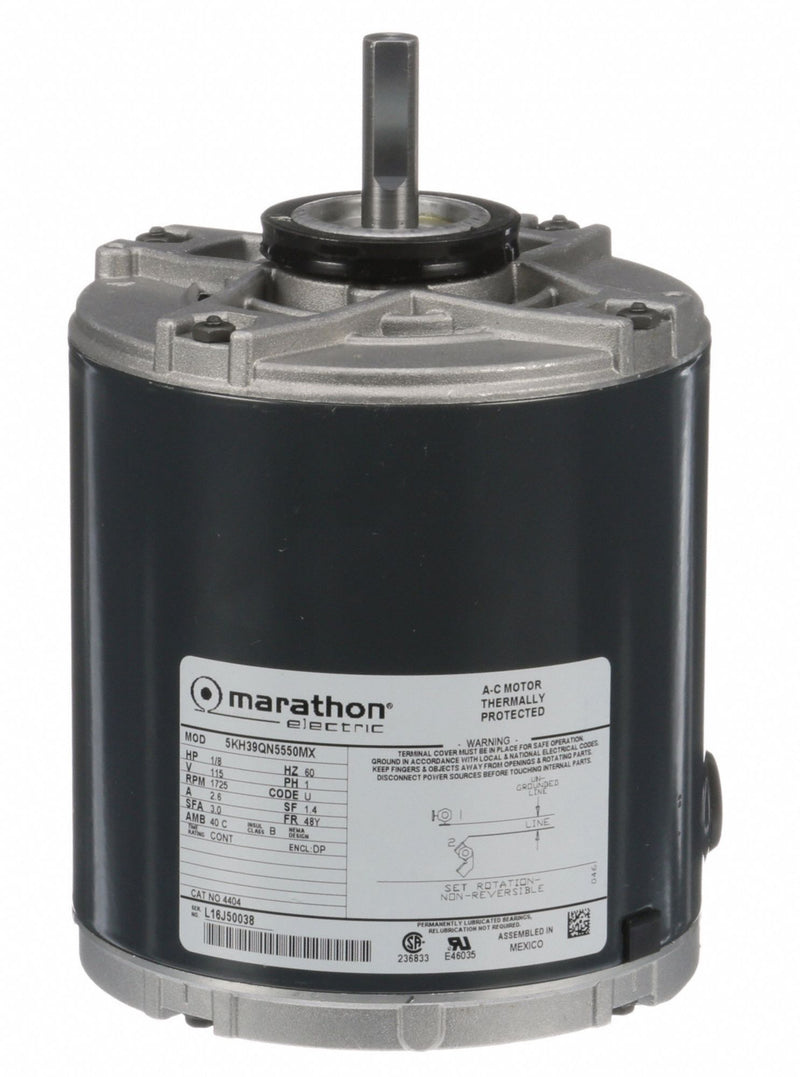

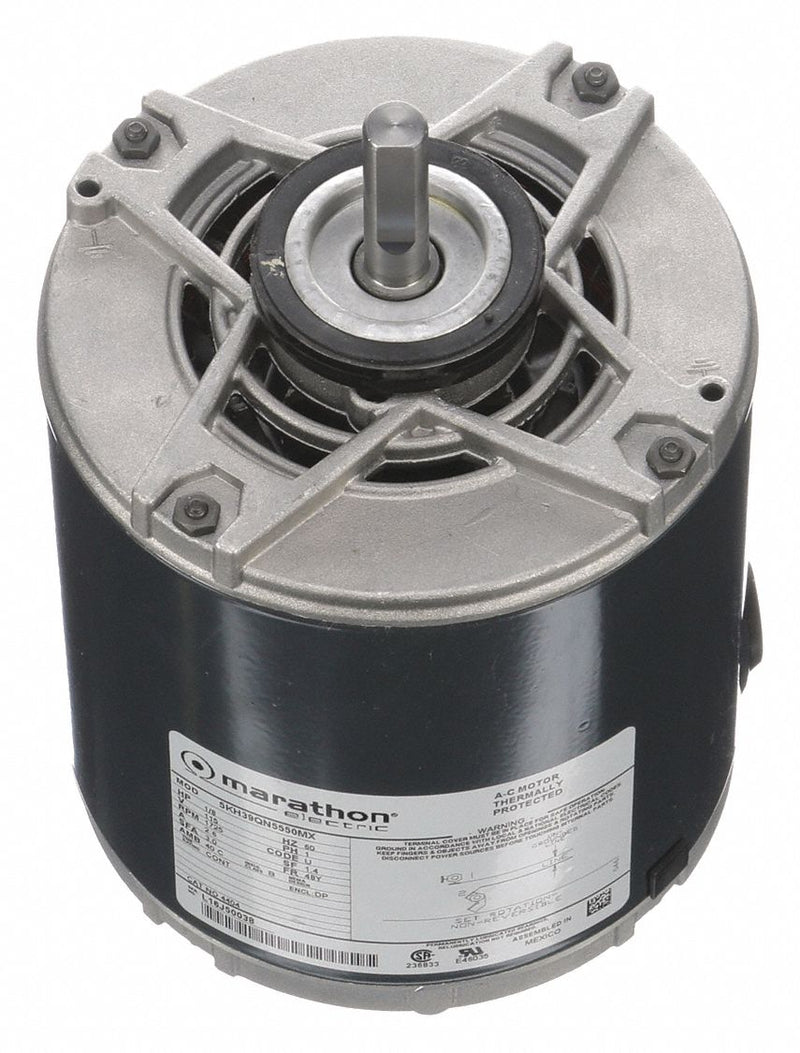

Keep air circulating with this direct drive blower motor. It features a split-phase motor, suitable for use in belt-drive and direct-drive fans and blowers, small tools, centrifugal pumps, and appliances. It also features an open dripproof enclosure to help promote good airflow while resisting the ingress of dripping water. The vents are angled to prevent water from entering the enclosure from above. The motor's shaft also turns a cooling fan to help pull air through the motor.
| Item | Direct Drive Blower Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 1/8 |
| Nameplate RPM | 1725 |
| Voltage | 115 |
| Full Load Amps | 2.6 |
| Hz | 60 |
| Phase | 1 |
| Frame | 48Y |
| Motor Service Factor | 1.4 |
| Max. Ambient Temp. | 40 Degrees C |
| Ins. Class | B |
| Duty | Continuous |
| No. of Speeds | 1 |
| Motor Mounting Type | Ring |
| Motor Mounting Position | Horizontal |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Motor Shaft Rotation | CCWLE |
| Nominal Efficiency | 51.5 % |
| Body Dia. | 5 11/16 in |
| Length Less Shaft | 7 7/16 in |
| Overall Length | 8 15/16 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 1 1/2 in |
| Motor Shaft Design | Flat |
| Capacitor Required | No |
| Resilient Ring Dia. | 2 1/4 in |
| Ring to Ring Center | 7 1/8 in |
| Standards | CSA Certified (LR2025), UL Recognized (E6312) |
| Application | Blowers, Fans and Air Circulators |
| Manufacturers Warranty Length | 1 yr |
| Voltage Compatibility | 115, 120 |
