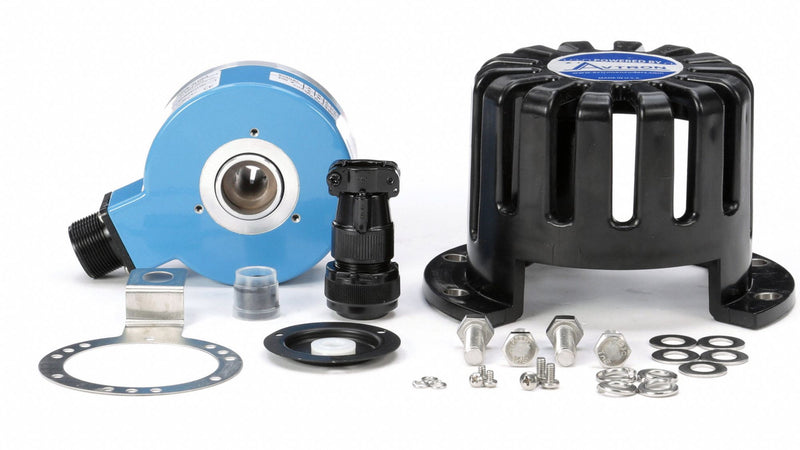

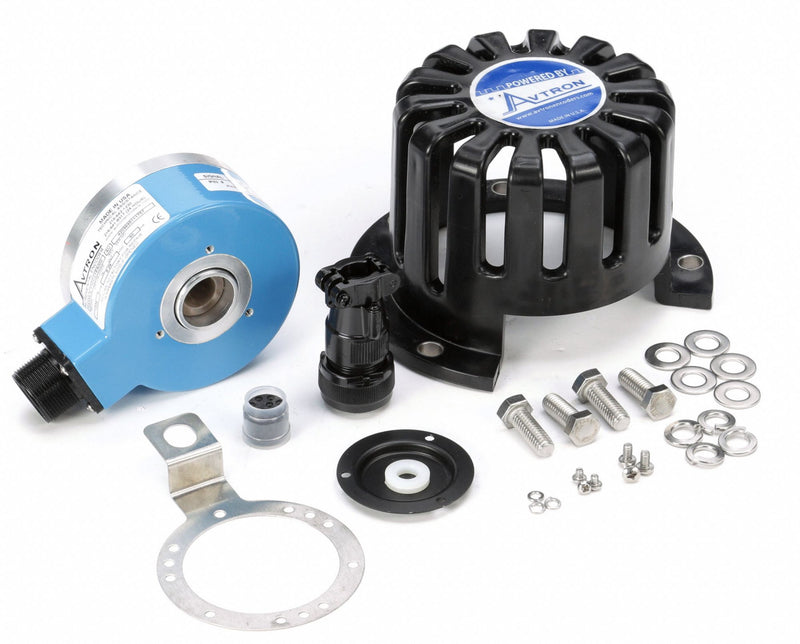

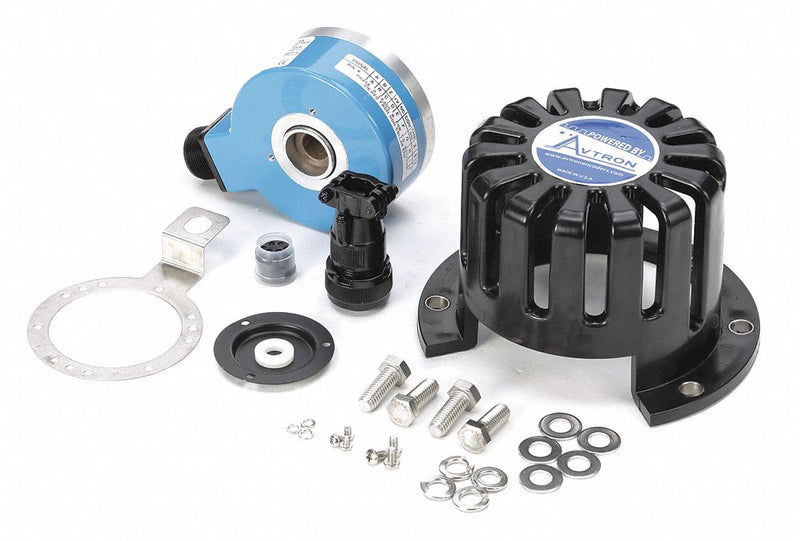

Encoders are a device placed on the end of the motor that senses the motor position and relays it to a control. This encoder kit is designed for easy installation on all Black MAX motors.
| Item | Encoder Kit |
| For Use With | Black Max Motors |
| RPM Range | 0 to 2X Motor Base RPM |
| Voltage | 5 to 26 V DC |
| Amps | 120 mA |
| Resolution | 1024 PPR |
| Mounting | Hollow Shaft |
| Enclosure | IP65 |
| Enclosure Material | Cast Aluminum |
| Max. Ambient Temperature | 100 Degrees C |
| Wire Termination | 10 Pin MS Connector |
| Diameter | 4 1/2 in |
| Overall Length | 3 5/16 in |
| ODE Shaft Diameter | 5/8 in |
| Standards | CE, cULus Recognized |
| Manufacturers Warranty Length | 3 yr |
| Requires | Black Max Motor and VFD with Encoder Capability |
| Mfr. Stock No. | KIT HS35A/B1024-NV |
| Includes | Mating MS Connector and Mounting Hardware |
