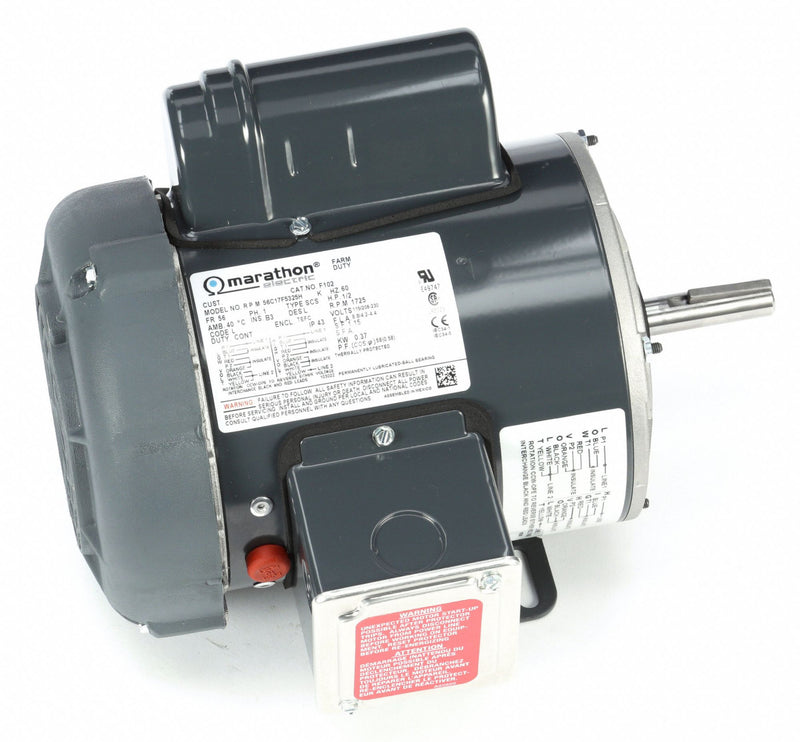

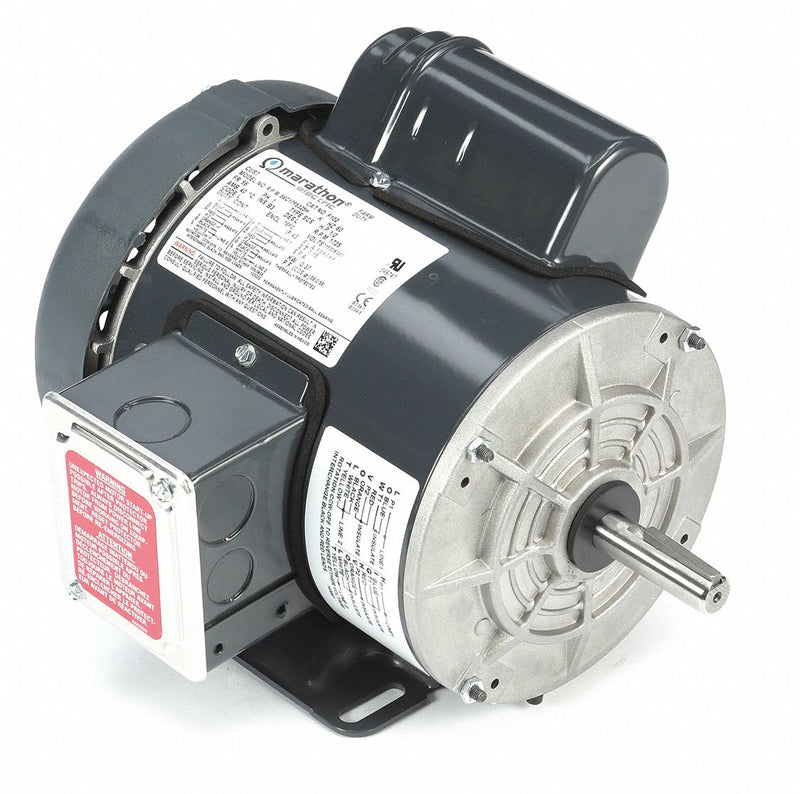

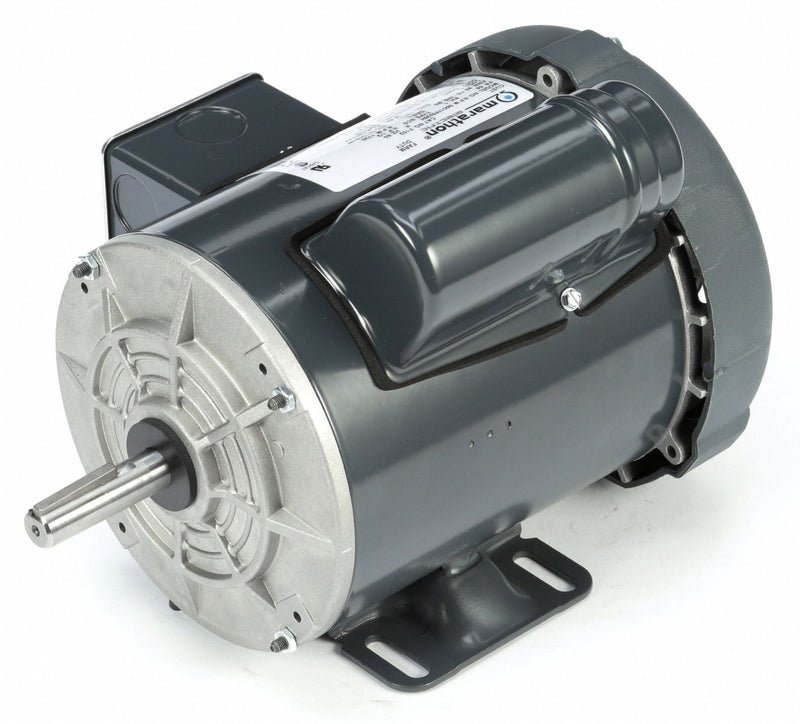

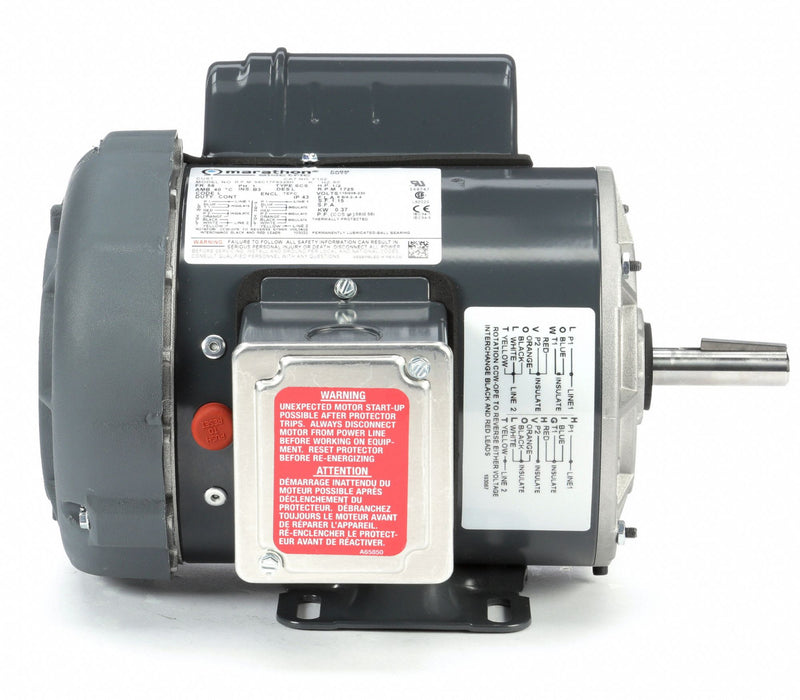

Keep your farm-duty fans moving with this capacitor-start, farm-duty motor. It features a totally enclosed, fan-cooled motor design to help keep the motor free of contamination. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor. Its ball bearings and rolled steel frame also help to provide durability and long service life.
| Item - Farm Duty Motors | High Torque Farm Duty Motor |
| Motor Application | Farm Duty |
| Motor Sub Application | High Torque |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1/2 |
| Nameplate RPM | 1725 |
| Frame | 56 |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 115/208-230 |
| Full Load Amps | 8.8/4.2-4.4 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Finish | Gray |
| Motor Thermal Protection | Manual |
| Motor Service Factor | 1.15 |
| Max. Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 5/16 in |
| Motor Shaft Design | Keyed |
| Length Less Shaft | 9 1/2 in |
| Overall Length | 11 13/16 in |
| Ins. Class | B |
| Duty | Continuous |
| Nominal Efficiency | 66 % |
| Motor Efficiency Group | Standard Efficient |
| Includes | (2) Drain Plugs, Shaft Slinger |
| Standards | UL Recognized (E49747); CSA(LR2025) |
| Item | High Torque Farm Duty Motor |
| Voltage Compatibility | 115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240 |
