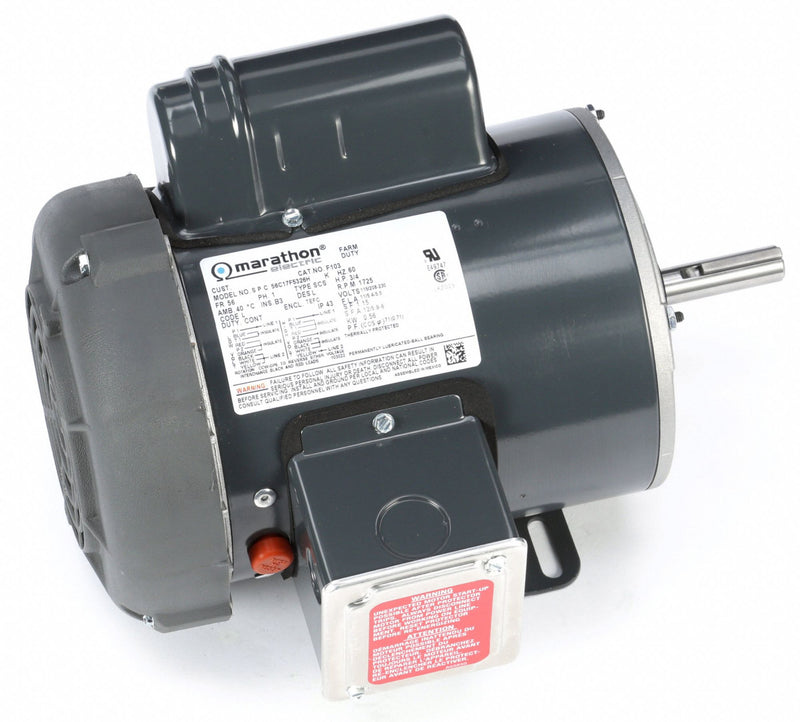

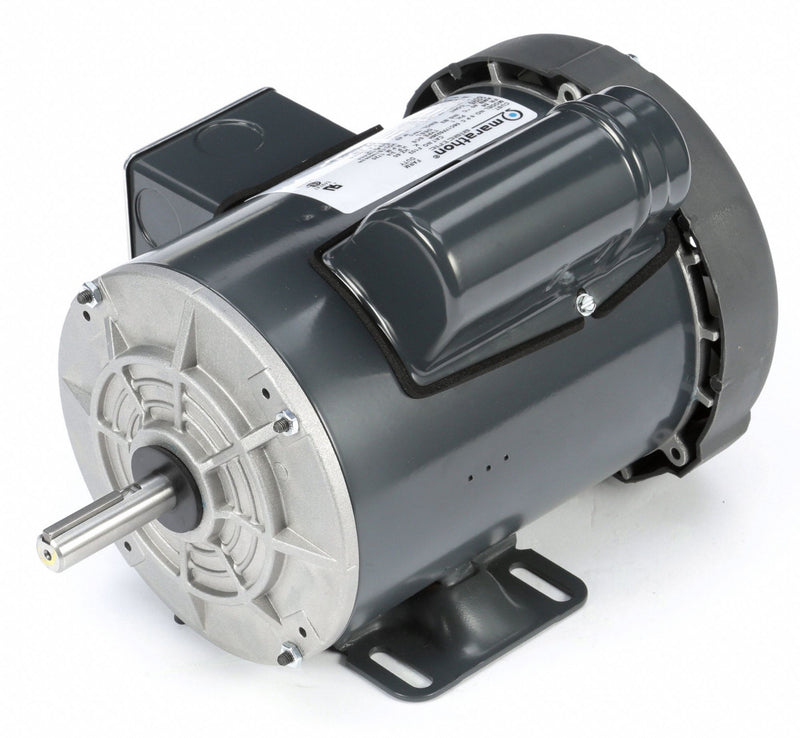

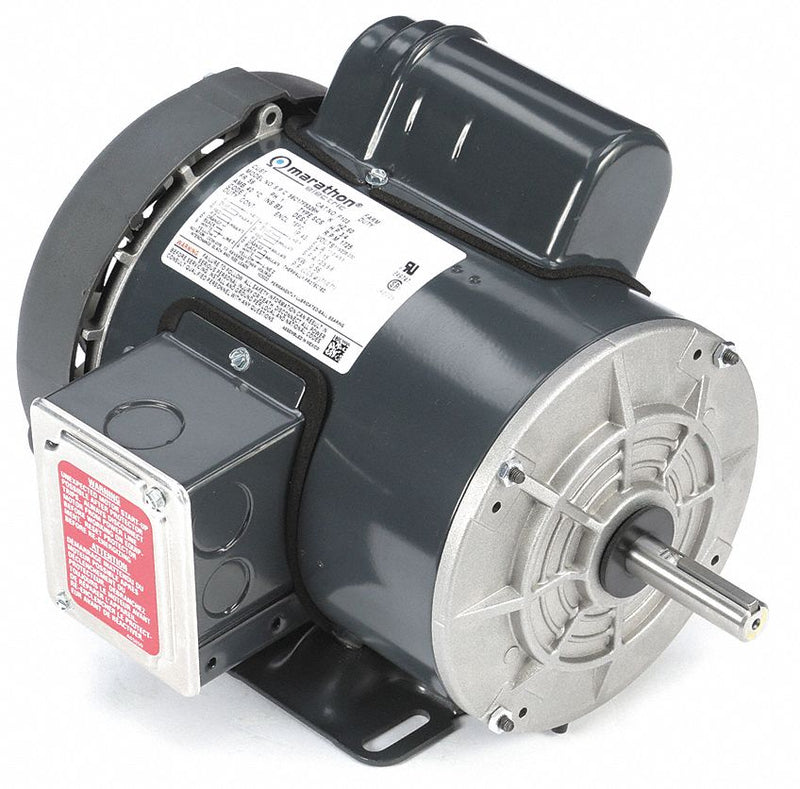

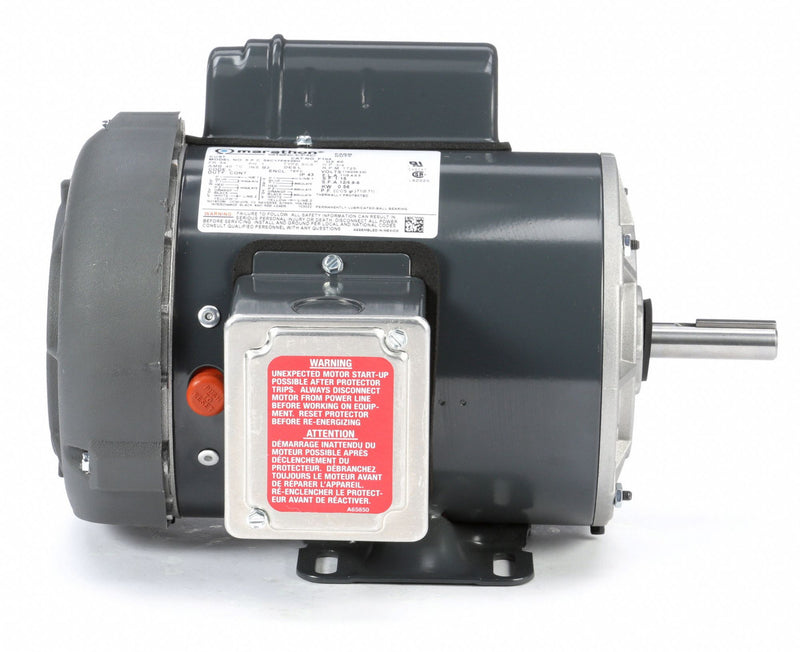

Marathon Motors 3/4 HP High Torque Farm Duty Motor,Capacitor-Start,1725 Nameplate RPM,115/208-230 Voltage - 056C17F5326

MarathonSKU: C1550069
MPN : 056C17F5326
Weight : 28.44 lb
filler

Price:
$355.60 $433.66

Availability : Usually Ships in 1-3 Business Days

Keep your farm-duty fans moving with this capacitor-start, farm-duty motor. It features a totally enclosed, fan-cooled motor design to help keep the motor free of contamination. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor. Its ball bearings and rolled steel frame also help to provide durability and long service life.

Item - Farm Duty MotorsHigh Torque Farm Duty Motor
Motor ApplicationFarm Duty
Motor Sub ApplicationHigh Torque
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP3/4
Nameplate RPM1725
Frame56
Motor Shaft RotationCW/CCW
Voltage115/208-230
Full Load Amps11/5.4-5.5
Phase1
Hz60
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor BearingsBall
Motor Frame MaterialRolled Steel
FinishGray
Motor Thermal ProtectionManual
Motor Service Factor1.15
Max. Ambient Temperature40 Degrees C
Shaft Dia.5/8 in
Shaft Length2 5/16 in
Motor Shaft DesignKeyed
Length Less Shaft10 in
Overall Length12 5/16 in
Ins. ClassB
DutyContinuous
Nominal Efficiency70.5 %
Motor Efficiency GroupStandard Efficient
Includes(2) Drain Plugs, Shaft Slinger
StandardsUL Recognized (E49747); CSA(LR2025)
ItemHigh Torque Farm Duty Motor
Voltage Compatibility115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240
