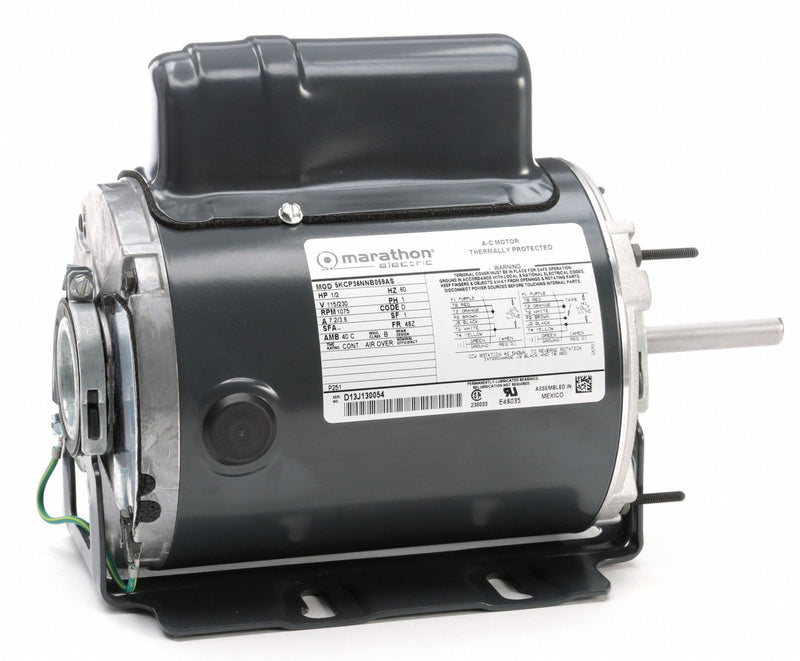

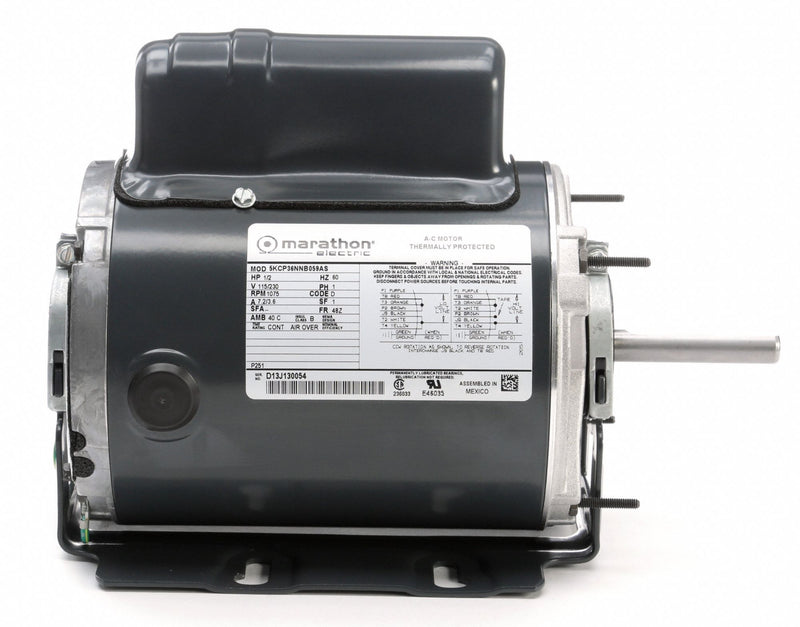

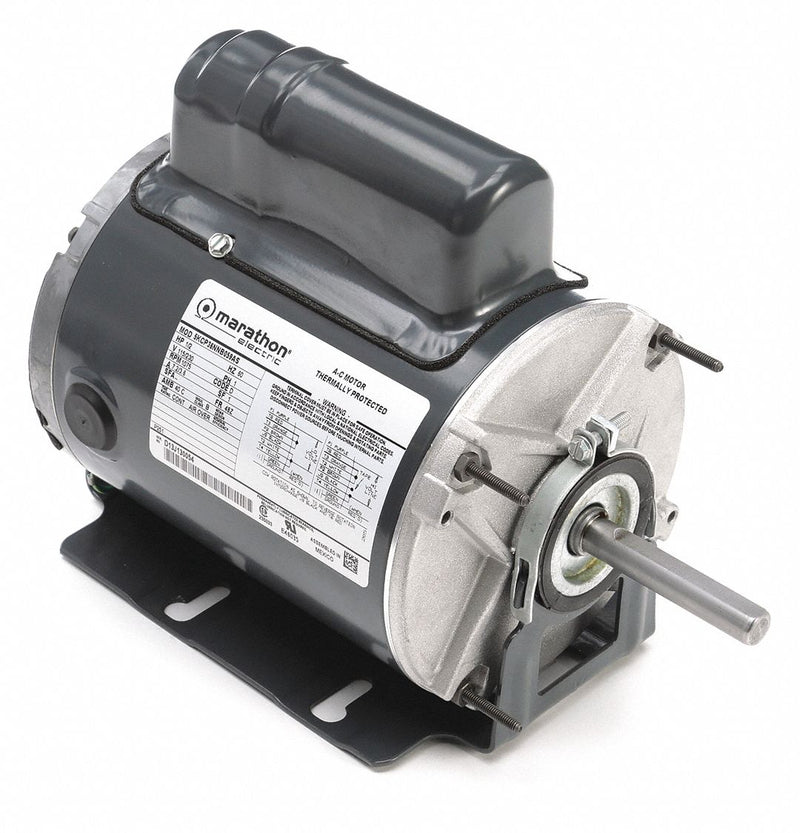

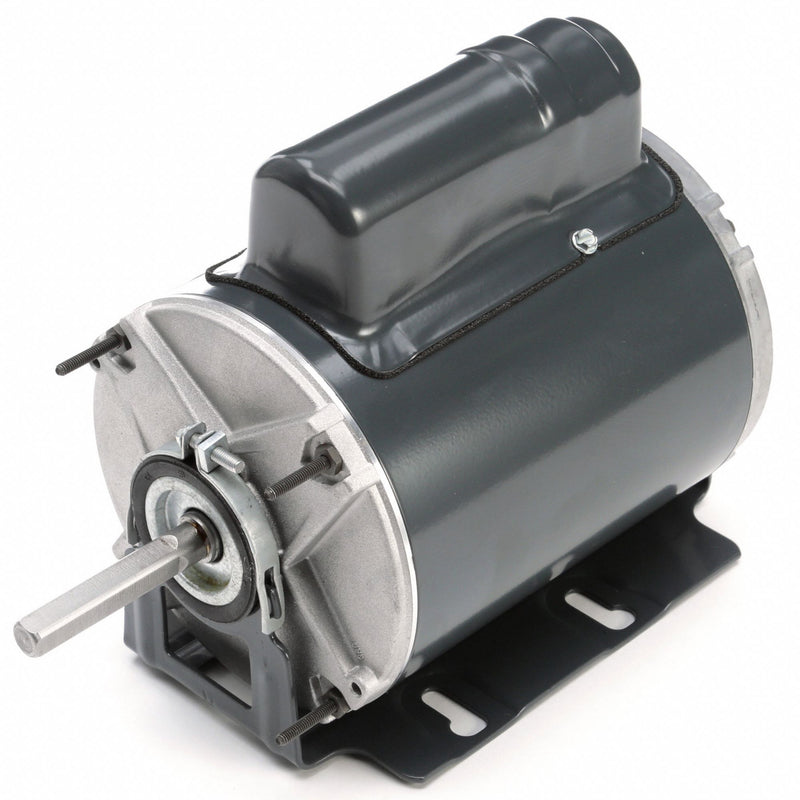

For use in high-torque installations, such as conveyors, silo unloaders, barn cleaners, compressors, and manure pumps, this motor is designed to be durable and powerful. The high-torque design enables it to start under heavy load conditions. A capacitor cover, gasketed conduit box, and rubber boot over the manual protector reset button help seal the motor against weather and contaminants. Shaft slinger included. The totally enclosed, fan-cooled motor design also helps keep the motor free of contamination. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.
| Item - Farm Duty Motors | Agricultural Fan Motor |
| Motor Application | Farm Duty |
| Motor Sub Application | Poultry/Livestock Direct Drive Fan |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| HP | 1/2 |
| Nameplate RPM | 1075 |
| Frame | 48Z |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 115/230 |
| Full Load Amps | 7.2/3.6 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Cradle Base |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1 |
| Max. Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2 1/2 in |
| Motor Shaft Design | Flat |
| Length Less Shaft | 8 1/2 in |
| Overall Length | 11 in |
| Capacitor Required | No |
| Duty | Continuous |
| Standards | CSA Certified (236833), UL Recognized (E46035) |
| Item | Agricultural Fan Motor |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
