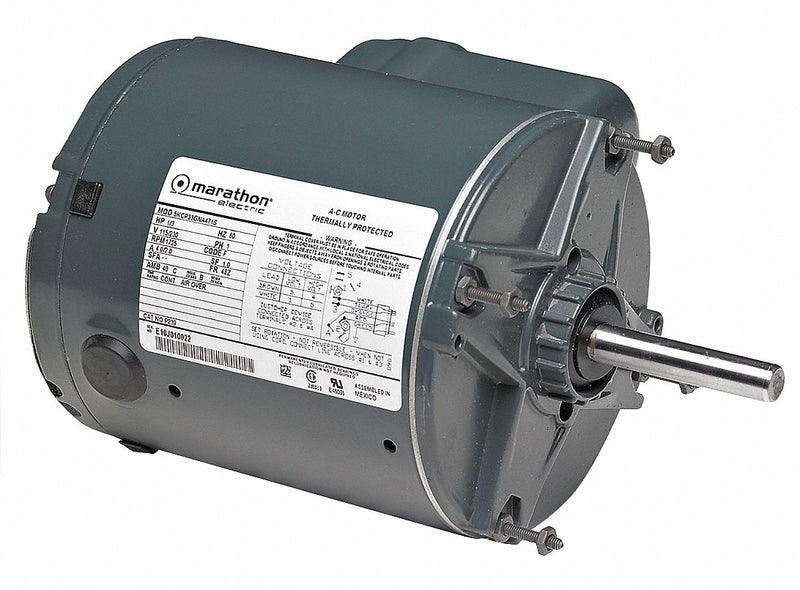

PSC Hatchery Motors Enclosure: totally enclosed air-over Stud pattern: 4 bolts, 3-5/8" square Service factor: 1.0 Insulation: Class B Max. ambient: 40C Bearings: double-sealed ball Duty: continuous 60/50 Hz, except where indicated UL Recognized and CSA Certified. Incubator Centrifugal switch trips external alarm circuit (not included) if motor stops. Shaft slinger adds protection against dirt and moisture. Shaft is 1/2" dia. x 2-1/2"L with full-length flat. 1" clamp screws for fan shroud mounting. Designed for use in Chickmaster and Jamesway hatchers.
| Item - Farm Duty Motors | Agricultural Fan Motor |
| Motor Application | Farm Duty |
| Motor Sub Application | Hatchery/Incubator Fan |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| HP | 1/3 |
| Nameplate RPM | 1725 |
| Frame | 48Z |
| Motor Shaft Rotation | CWSE |
| Voltage | 115/230 |
| Full Load Amps | 4/2 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Stud |
| Motor Bearings | Ball |
| Motor Thermal Protection | Manual |
| Motor Service Factor | 1 |
| Max. Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2 1/2 in |
| Motor Shaft Design | Flat |
| Ins. Class | B |
| Duty | Continuous |
| Includes | Shaft Slinger Prevents Dirt and Moisture From Entering Bearing System |
| Item | Agricultural Fan Motor |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
