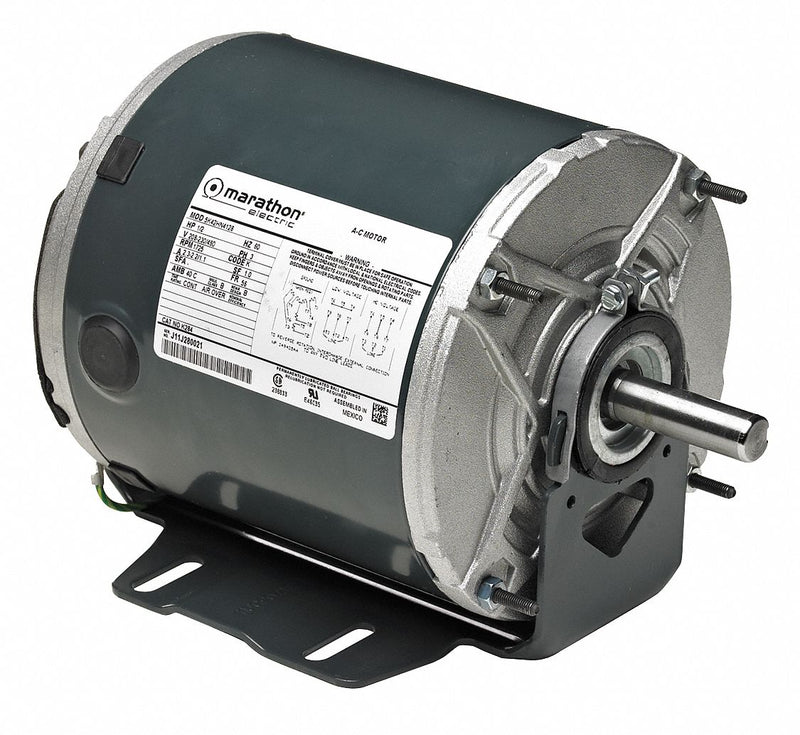

Marathon Motors 1/4 HP Agricultural Fan Motor,Permanent Split Capacitor,1625 Nameplate RPM,115/230 Voltage - 5KCP35KNB057S

MarathonSKU: C1555357
MPN : 5KCP35KNB057S
Weight : 15.5 lb
filler

Price:
$290.15 $353.84

Availability : Usually Ships in 1-3 Business Days

For use in high-torque installations, such as conveyors, silo unloaders, barn cleaners, compressors, and manure pumps, this motor is designed to be durable and powerful. The high-torque design enables it to start under heavy load conditions. A capacitor cover, gasketed conduit box, and rubber boot over the manual protector reset button help seal the motor against weather and contaminants. Shaft slinger included. The totally enclosed, fan-cooled motor design also helps keep the motor free of contamination. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.

Item - Farm Duty MotorsAgricultural Fan Motor
Motor ApplicationFarm Duty
Motor Sub ApplicationPoultry/Livestock Direct Drive Fan
Motor DesignPermanent Split Capacitor
Motor Enclosure DesignTotally Enclosed Air-Over
HP1/4
Nameplate RPM1625
Frame48Z
Motor Shaft RotationCW/CCW
Voltage115/230
Full Load Amps3.6/1.8
Phase1
Hz60
Motor Mounting TypeCradle Base
Motor BearingsBall
Motor Thermal ProtectionAuto
Motor Service Factor1
Max. Ambient Temperature40 Degrees C
Shaft Dia.1/2 in
Shaft Length2 1/2 in
Motor Shaft DesignFlat
Length Less Shaft8 1/8 in
Overall Length10 5/8 in
Ins. ClassB
Capacitor RequiredYes
DutyContinuous
StandardsCSA Certified (236833), UL Recognized (E46035)
ItemAgricultural Fan Motor
Voltage Compatibility115, 115/230, 120, 120/240, 230, 240
