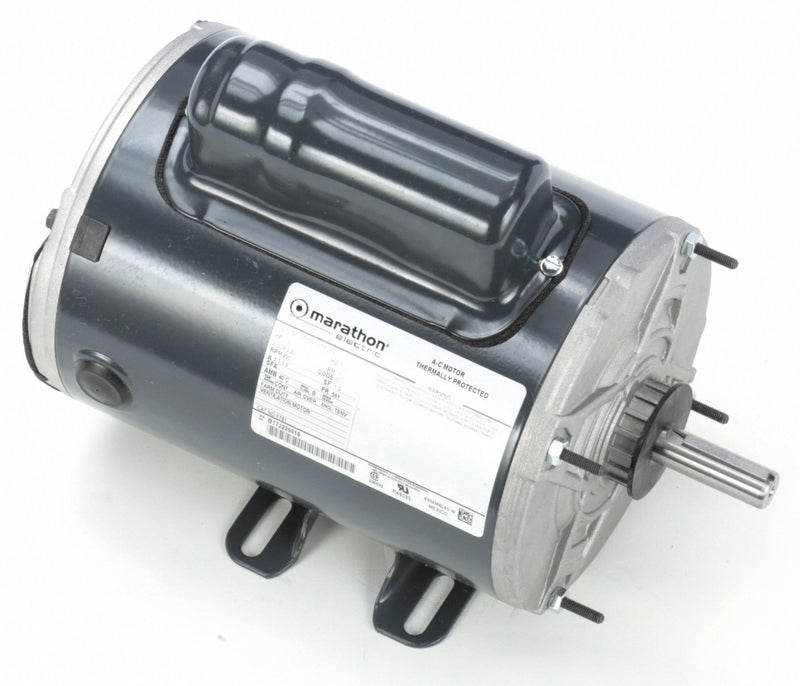

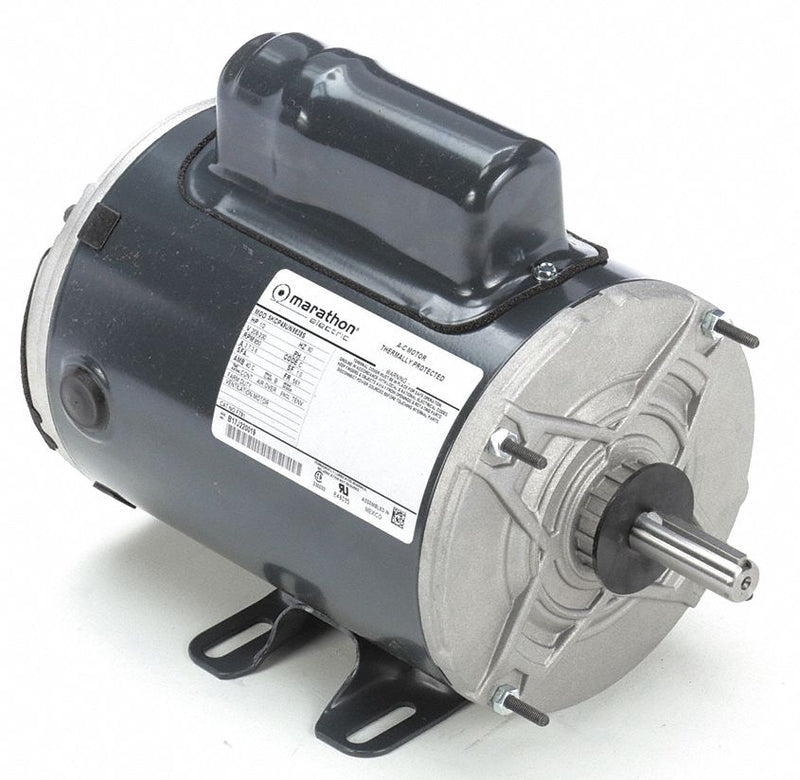

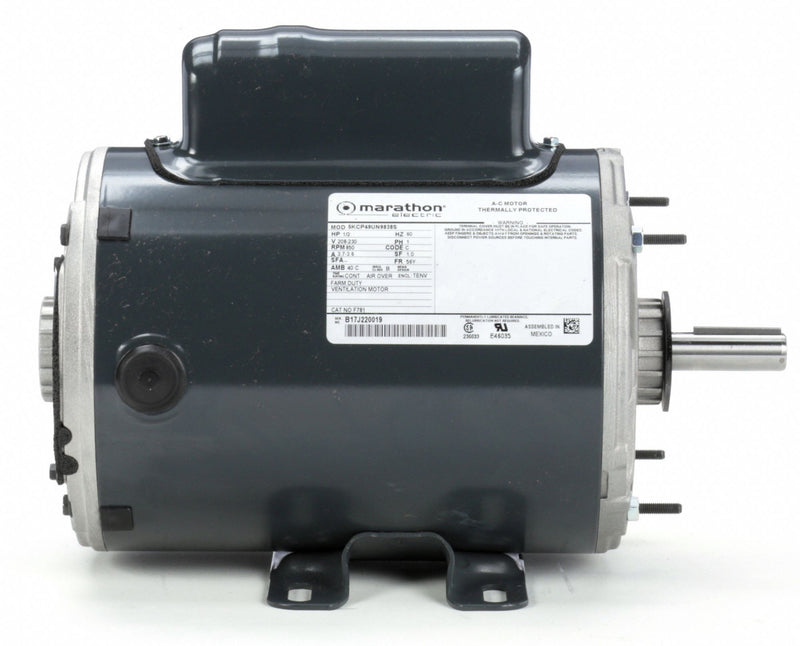

Keep air moving through your poultry barn with this poultry fan motor. It features a totally enclosed, nonventilated enclosure design, which resists dampness and airborne particles to help prevent motor contamination. It also offers durability and long service life with ball bearings and a rolled steel frame.
| Item - Farm Duty Motors | Agricultural Fan Motor |
| Motor Application | Farm Duty |
| Motor Sub Application | Poultry/Livestock Belt Drive Fan |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| HP | 1/2 |
| Nameplate RPM | 850 |
| Frame | 56Y |
| Motor Shaft Rotation | CCWLE |
| Voltage | 208-230 |
| Full Load Amps | 3.7-3.6 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Finish | Gray |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1 |
| Max. Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Motor Shaft Design | Keyed |
| Length Less Shaft | 10 in |
| Overall Length | 11 15/16 in |
| Ins. Class | B |
| Duty | Continuous |
| Nominal Efficiency | 57.5 % |
| Motor Efficiency Group | Standard Efficient |
| Standards | CSA Certified (MC236833), UL Recognized (E14133) |
| Item | Agricultural Fan Motor |
| Voltage Compatibility | 115/208-230, 208-230, 208-240 |
