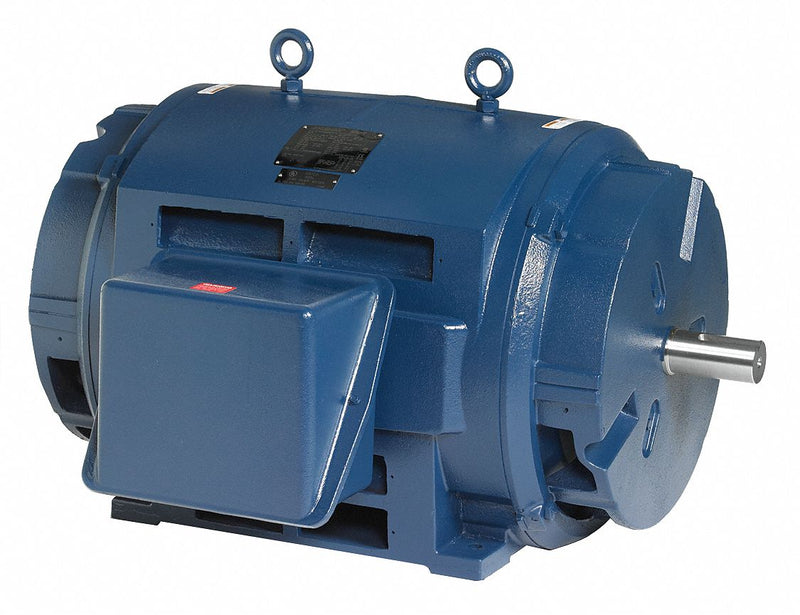

Marathon Motors 300 HP Fire Pump Motor, 3-Phase, 1780 Nameplate RPM, 460 Voltage, 447TS Frame - 447TSTDN7026

MarathonSKU: C1517118
MPN : 447TSTDN7026
Weight : 1994.0 lb

filler

Price:
$28,599.00 $46,127.42

Availability : Usually Ships in 3-5 Business Days

This pump is designed to power fire sprinkler systems. The three-phase, open dripproof motor is UL listed and CSA certified to help facilities comply with safety standards.

ItemFire Pump Motor
Motor ApplicationPump
Motor Sub ApplicationFire Pump
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP300
Nameplate RPM1780
Frame447TS
Voltage460
Hz60/50
Phase3
Full Load Amps345
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
No. of Speeds1
Motor Service Factor1.15
Motor BearingsBall
Motor Thermal ProtectionNone
Motor Shaft RotationCW/CCW
Max. Ambient Temp.50 Degrees C
Length Less Shaft34 3/4 in
Shaft Dia.2 3/8 in
Shaft Length4 3/4 in
Overall Length39 1/2 in
Motor Shaft DesignKeyed
Ins. ClassF
StandardsCSA Certified, UL Listed (EX5190)
Nominal Efficiency95.5 %
Motor Efficiency GroupEnergy Efficient
Voltage Compatibility208-230/460, 460
