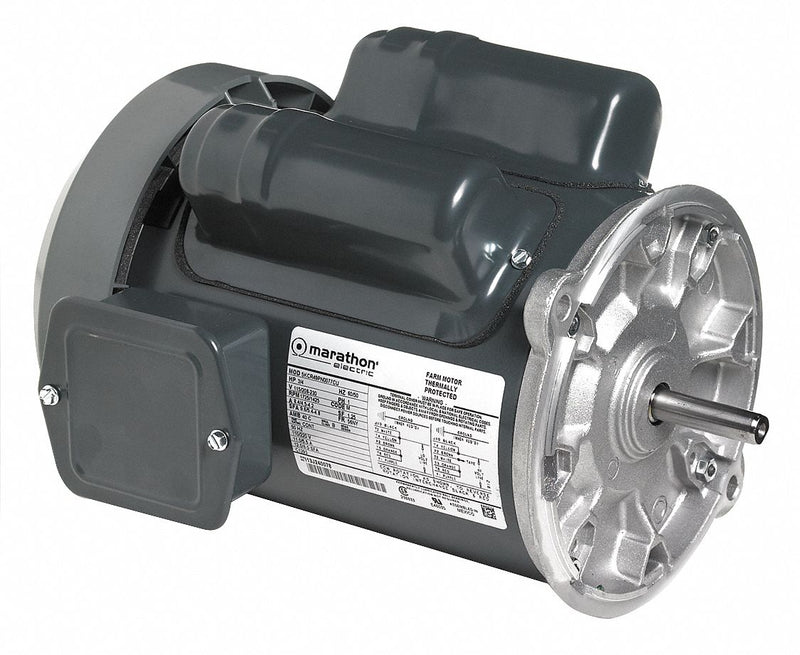

Marathon Motors 1-1/2 HP Auger Drive Motor,Capacitor-Start,1725 Nameplate RPM,115/230 Voltage,Frame 56NZ - 056B17F15516

MarathonSKU: C1522879
MPN : 056B17F15516
Weight : 44.6 lb


$550.60 $671.46

Availability : Usually Ships in 43 Business Days

For use in high-torque installations, such as conveyors, silo unloaders, barn cleaners, compressors, and manure pumps, this motor is designed to be durable and powerful. The high-torque design enables it to start under heavy load conditions. A capacitor cover, gasketed conduit box, and rubber boot over the manual protector reset button help seal the motor against weather and contaminants. Shaft slinger included. The totally enclosed, fan-cooled motor design also helps keep the motor free of contamination. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.

Item - Farm Duty MotorsAuger Drive Motor
Motor ApplicationFarm Duty
Motor Sub ApplicationAuger
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Nameplate RPM1725
Motor Shaft RotationCW/CCW
Full Load Amps15.2/7.6
Motor Mounting TypeFace
Motor BearingsBall
Motor Frame MaterialRolled Steel
Motor Thermal ProtectionManual
Motor Service Factor1
Max. Ambient Temperature40 Degrees C
Shaft Dia.5/8 in
Shaft Length2 1/16 in
Motor Shaft DesignKeyed
Ins. ClassF
StandardsCSA, UL
ItemAuger Drive Motor
Voltage Compatibility115, 115/230, 120, 120/240, 230, 240
