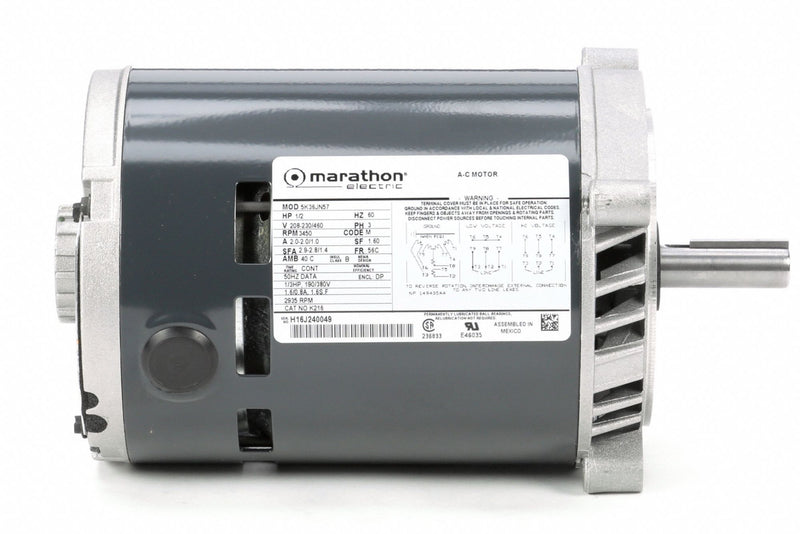

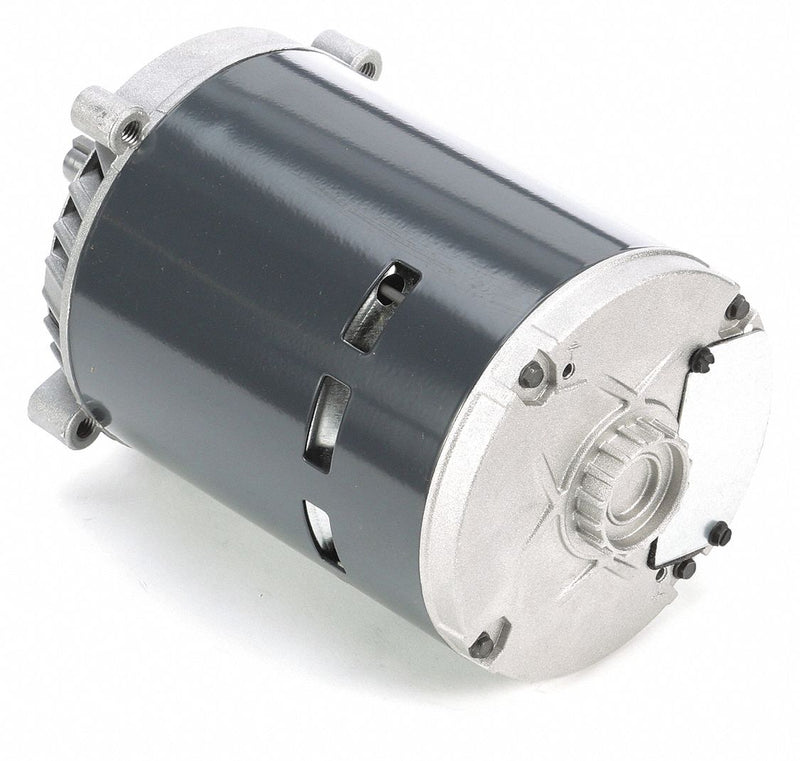

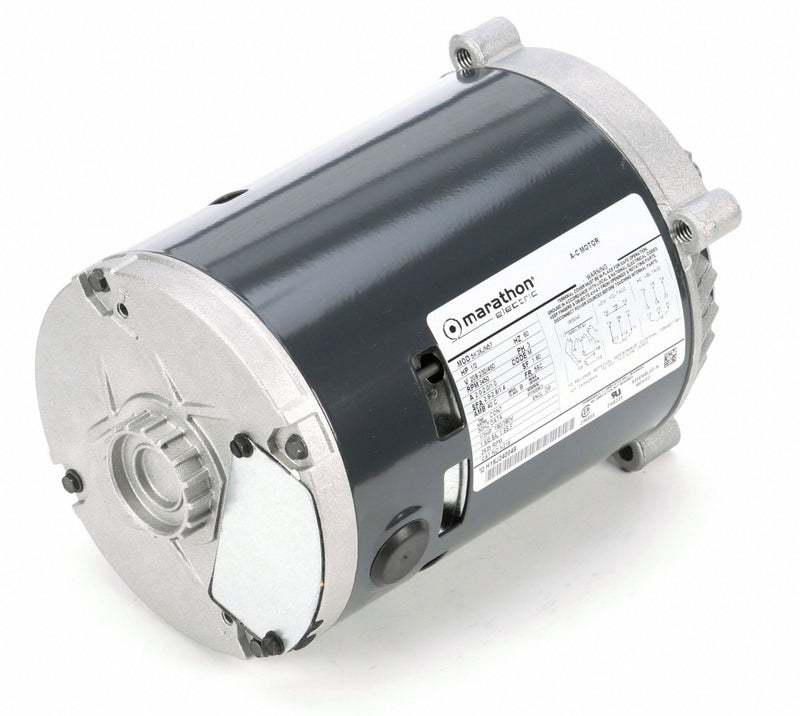

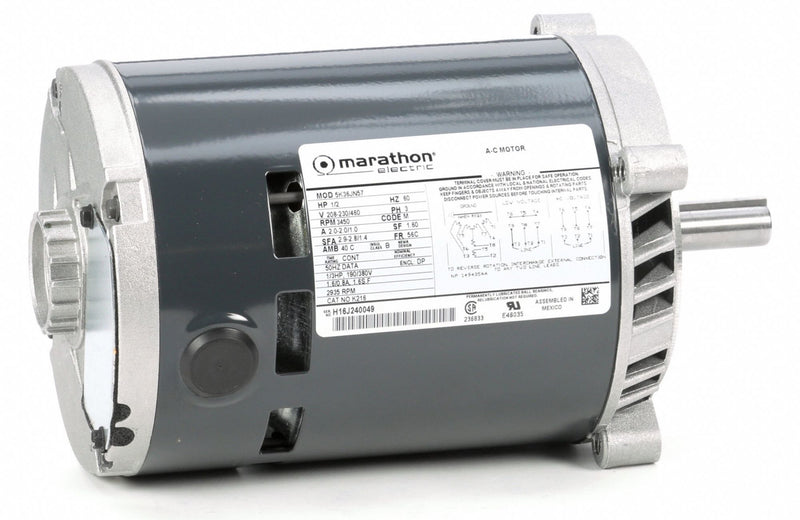

Marathon Motors 1/2 HP, General Purpose Motor, 3-Phase, 3450 Nameplate RPM, 230/460 Voltage, 56C Frame - 5K36JN57

MarathonSKU: C1566837
MPN : 5K36JN57
Weight : 15.25 lb
filler

Price:
$199.59 $243.40

Availability : Usually Ships in 1-3 Business Days

3-phase motor is for clean, dry, nonhazardous applications in pumps, speed reducers, machine tools, and other shaft-end mounted industrial equipment.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP1/2
Nameplate RPM3450
Frame56C
Voltage230/460
Hz60
Phase3
Full Load Amps2/1
No. of Speeds1
Motor Mounting TypeFace
Motor Mounting PositionAll Angle
Motor Thermal ProtectionNone
Ins. ClassB
Motor Service Factor1.6
Motor BearingsBall
Motor Frame MaterialSteel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Overall Length10 5/16 in
Motor Shaft DesignKeyed
StandardsCSA (MC236833), UL (E46035)
DutyContinuous
Motor Efficiency GroupStandard Efficient
Nominal Efficiency69.8 %
Manufacturers Warranty Length1 yr
