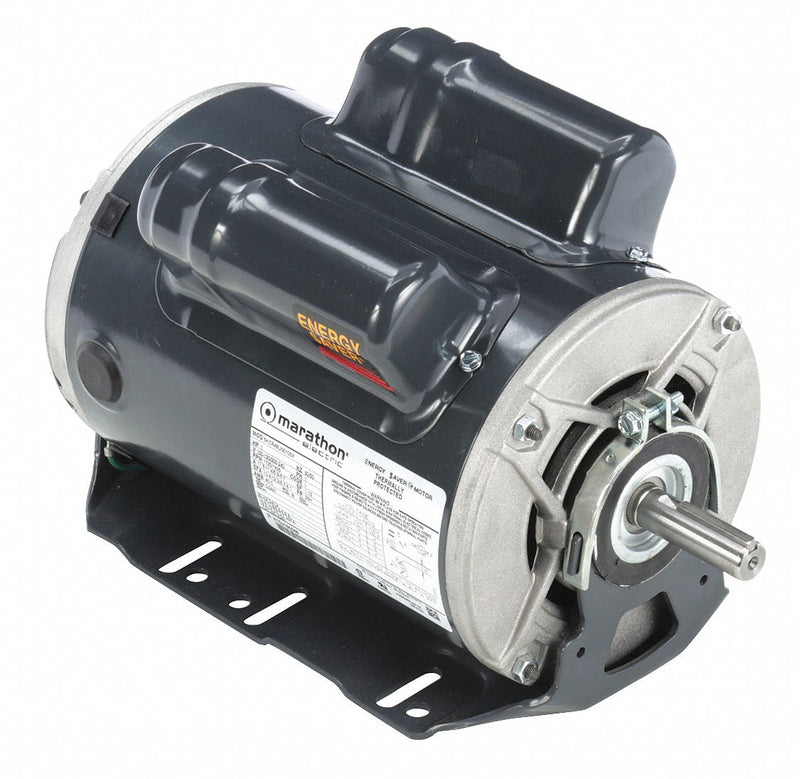

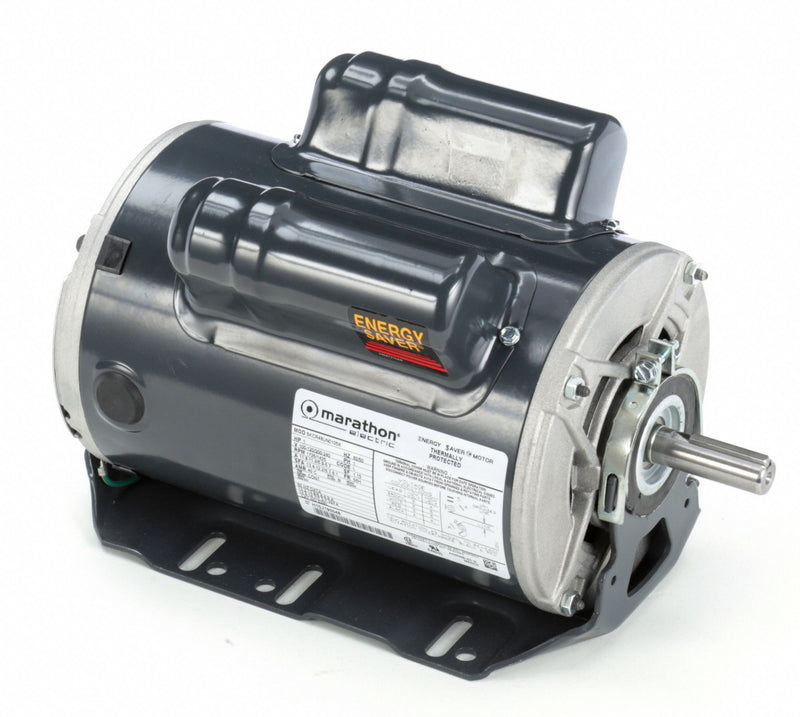

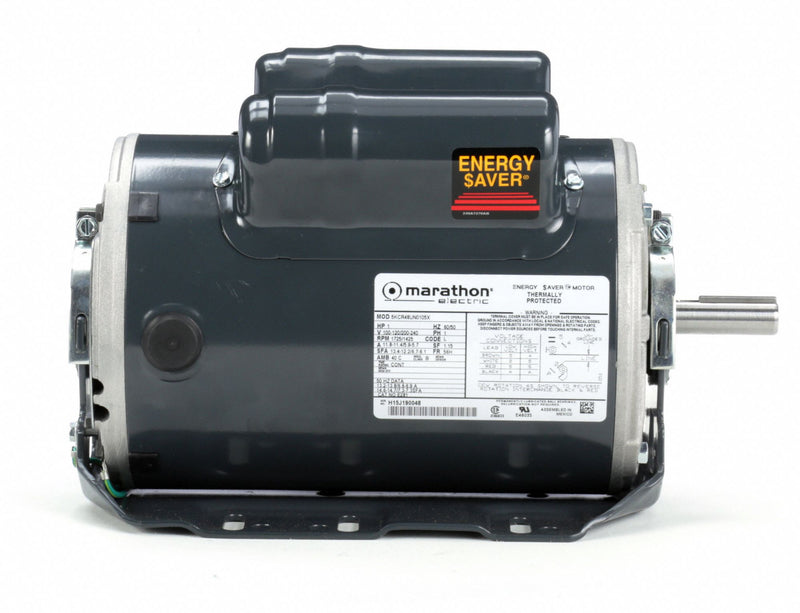

Marathon Motors 1 HP, General Purpose Motor, Capacitor-Start/Run, 1725 Nameplate RPM, 120/240 Voltage - 5KCR48UN0105X

MarathonSKU: C1545606
MPN : 5KCR48UN0105X
Weight : 39.8 lb

filler

Price:
$414.23 $668.11

Availability : Usually Ships in 1-3 Business Days

Open dripproof motor is for use in clean, dry, and nonhazardous applications including fans, blowers, pumps, printing equipment, and other business machines.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start/Run
Motor Enclosure DesignOpen Dripproof
HP1
Nameplate RPM1725
Frame56H
Voltage120/240
Hz60/50
Phase1
Full Load Amps11.8-11.4/5.9-5.7
No. of Speeds1
Motor Mounting TypeCradle Base
Motor Mounting PositionAll Angle
Motor Thermal ProtectionAuto
Ins. ClassB
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialSteel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Overall Length12 11/16 in
Motor Shaft DesignKeyed
StandardsCSA (MC236833), UL (E14133)
DutyContinuous
Motor Efficiency GroupStandard Efficient
Nominal Efficiency77.4 %
Manufacturers Warranty Length1 yr
