Marathon Motors 1/2 HP Hazardous Location Motor,3-Phase,1725 Nameplate RPM,230/460 Voltage,Frame 56C - 056T17G15536

MarathonSKU: C1546672
MPN : 056T17G15536
Weight : 27.6 lb
filler

Price:
$590.63 $720.28

Availability : Usually Ships in 1-3 Business Days

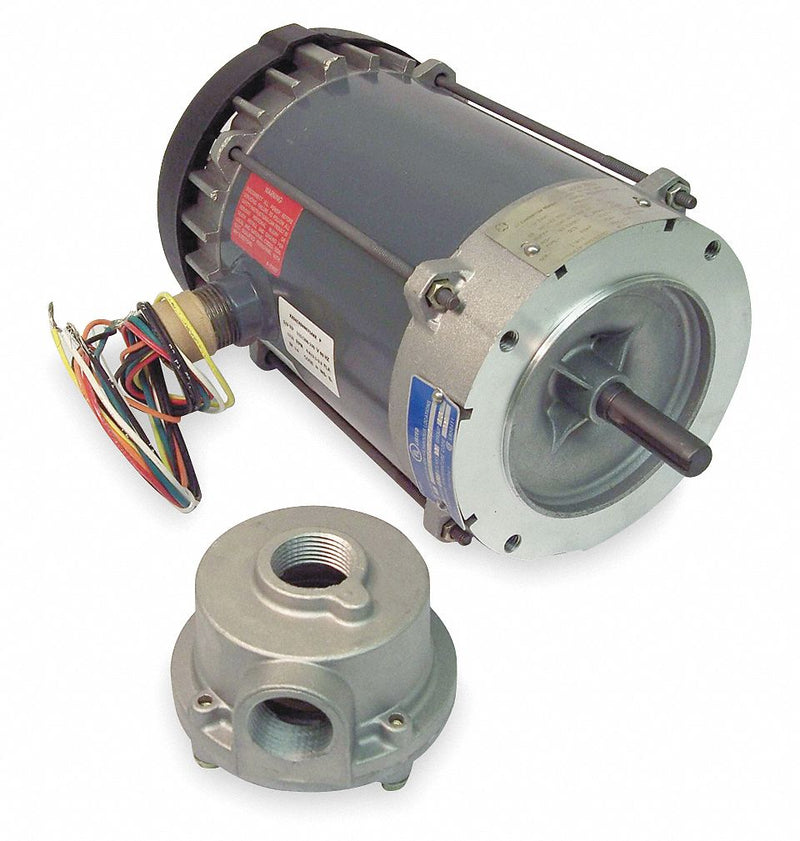

Use this 3-phase, 56 frame motor to power fans, blowers, pumps, or air compressors in hazardous locations. Includes unmounted conduit box.

ItemHazardous Location Motor
Motor ApplicationHazardous Location
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1/2
Nameplate RPM1725
Frame56C
NEMA DesignB
Motor Shaft RotationCW/CCW
Voltage230/460
Full Load Amps2.4/1.2
Phase3
Hz60/50
Motor Mounting TypeFace
Motor BearingsBall
Motor Frame MaterialRolled Steel
Motor Thermal ProtectionAuto
Motor Service Factor1
Hazardous Location Class1 C,D / 2 E,F,G
Max. Ambient Temp.40 Degrees C
Temp. CodeT3B
Motor Shaft DesignKeyed
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft12 5/64 in
Overall Length13 15/16 in
Lead Length6 in
Ins. ClassB
DutyContinuous
Nominal Efficiency85.5 %
Motor Efficiency GroupStandard Efficient
IncludesConduit Box (Unmounted), Leads Through 1 in NPT Nipple
StandardsUL Listed (E12044), CSA Certified (LR47504)
