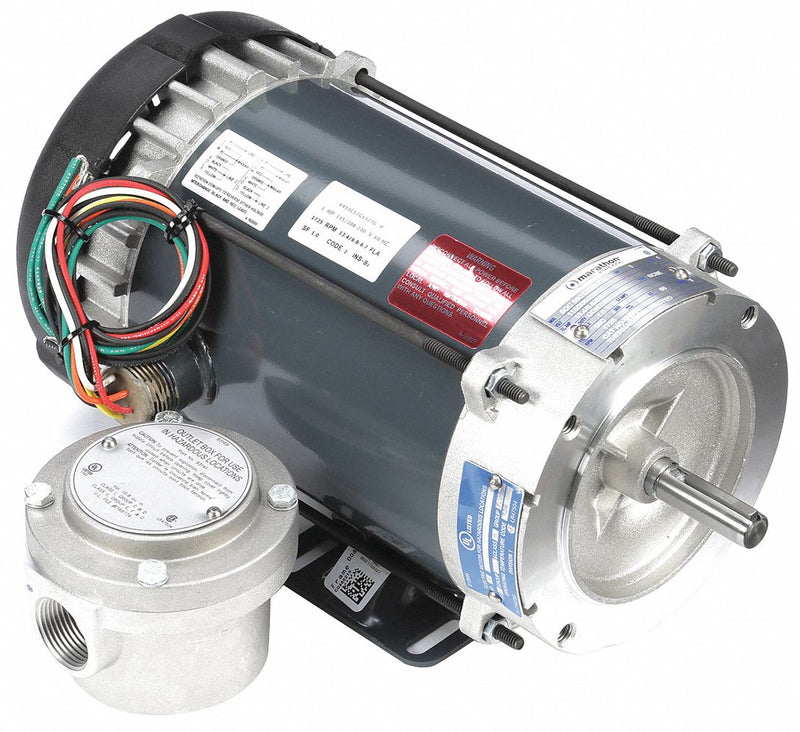

Marathon Motors 1 HP Hazardous Location Motor,Capacitor-Start,1725 Nameplate RPM,115/208-230 Voltage,Frame 56C - 056C17G5327

MarathonSKU: C1552045
MPN : 056C17G5327
Weight : 35.16 lb

filler

Price:
$855.25 $1,042.99

Availability : Usually Ships in 1-3 Business Days

1-phase hazardous location motor has a sturdy rolled-steel frame and meets the National Electrical Code for hazardous locations. Unmounted conduit box is included with all 56-frame motors. Use to power fans, blowers, pumps, or air compressors in areas that meet the National Electrical Code for hazardous locations.

ItemHazardous Location Motor
Motor ApplicationHazardous Location
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1
Nameplate RPM1725
Frame56C
NEMA DesignN
Motor Shaft RotationCW/CCW
Voltage115/208-230
Full Load Amps13.4/6.8-6.7
Phase1
Hz60
Motor Mounting TypeFace/Base
Motor BearingsBall
Motor Frame MaterialRolled Steel
Motor Thermal ProtectionAuto
Motor Service Factor1
Hazardous Location Class1 C,D / 2 F,G
Max. Ambient Temp.40 Degrees C
Temp. CodeT3B
Motor Shaft DesignKeyed
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft12 3/8 in
Overall Length14 7/16 in
Lead Length18 in
Ins. ClassB
DutyContinuous
Nominal Efficiency72 %
Motor Efficiency GroupStandard Efficient
Includes(8) Leads through 1 in NPT Nipple
StandardsCSA Certified (LR47504), UL Listed (E12044)
