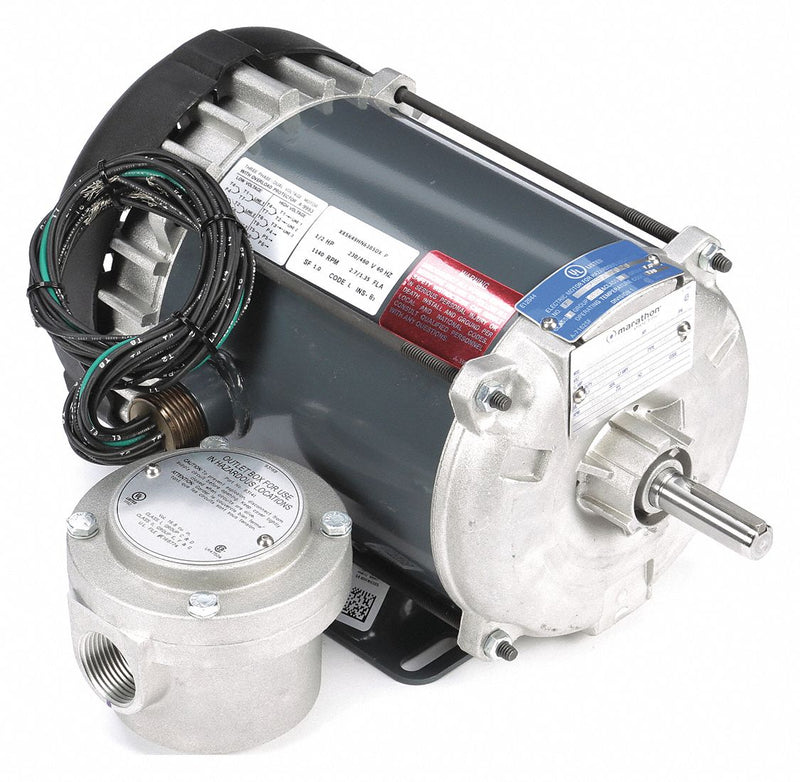

This 3-Phase Hazardous Location Motor is suitable for use in hazardous location applications.
| Item | Hazardous Location Motor |
| Motor Application | Hazardous Location |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Hazardous Location |
| HP | 1/2 |
| Nameplate RPM | 1140 |
| Frame | 56 |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 230/460 |
| Full Load Amps | 2.7/1.3 |
| Phase | 3 |
| Hz | 60 |
| Motor Mounting Type | Rigid Base |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1 |
| Hazardous Location Class | 1 C,D / 2 F,G |
| Max. Ambient Temp. | 40 Degrees C |
| Temp. Code | T3B |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 11 9/16 in |
| Overall Length | 13 7/16 in |
| Ins. Class | B |
| Duty | Continuous |
| Nominal Efficiency | 68 % |
| Motor Efficiency Group | Standard Efficient |
| Includes | (12)-18 in Leads. Through. 1 in NPT Nipple |
| Standards | UL Listed (E12044); CSA Certified (LR47504) |
