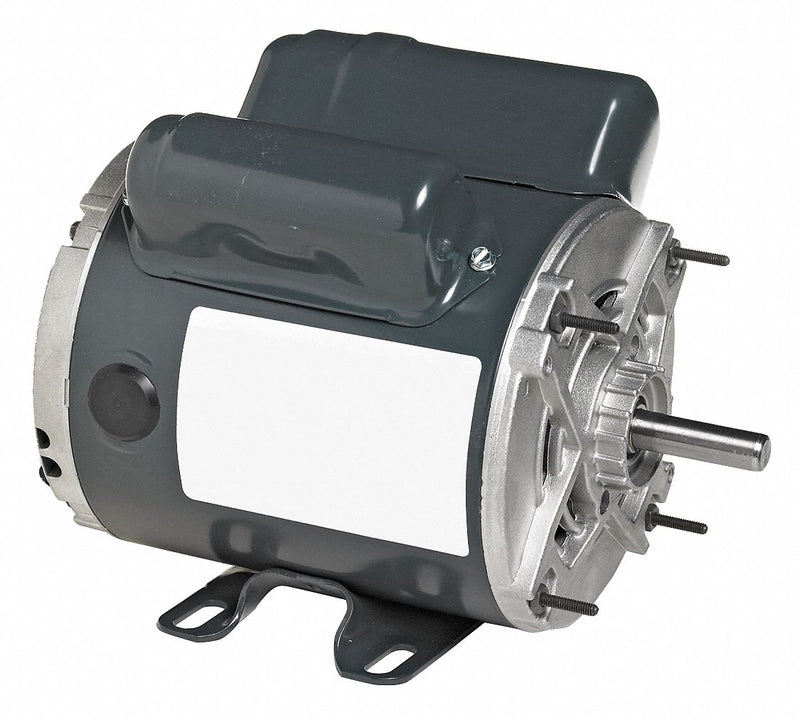

Instant reverse motor feature electronic reversing with no moving parts required. Designed for mechanical doors, gates, hoists, and other equipment requiring remote control instant reversibility.
| Item | Instant Reverse Motor |
| Motor Application | Garage/Gate Opener |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| HP | 1 |
| Nameplate RPM | 1725 |
| Frame | 56 |
| Voltage | 115/230 |
| Full Load Amps | 13.6/6.8 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | All Angle |
| Motor Bearings | Ball |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Ambient Temperature | 40 Degrees C |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Ins. Class | B |
| Number of Wires | 6 |
| Application | Cranes, For Door Operators, Gates and Remote Control Instant Reversibility, Hoists, Machine Tools |
| Standards | CSA Certified, UL Recognized, and CE Certified |
| RPM Range | 1701-1800 |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
