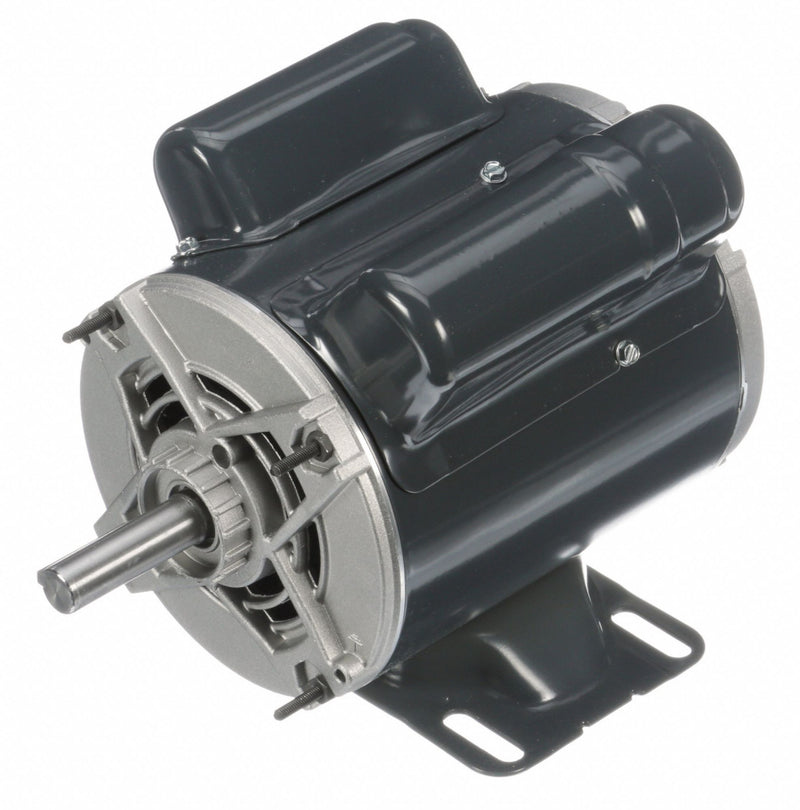

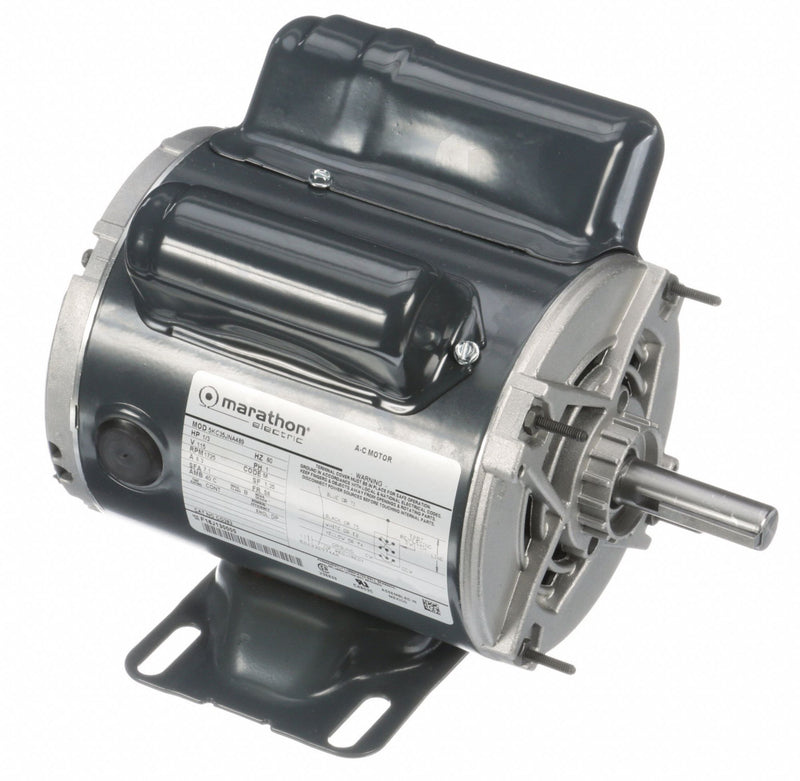

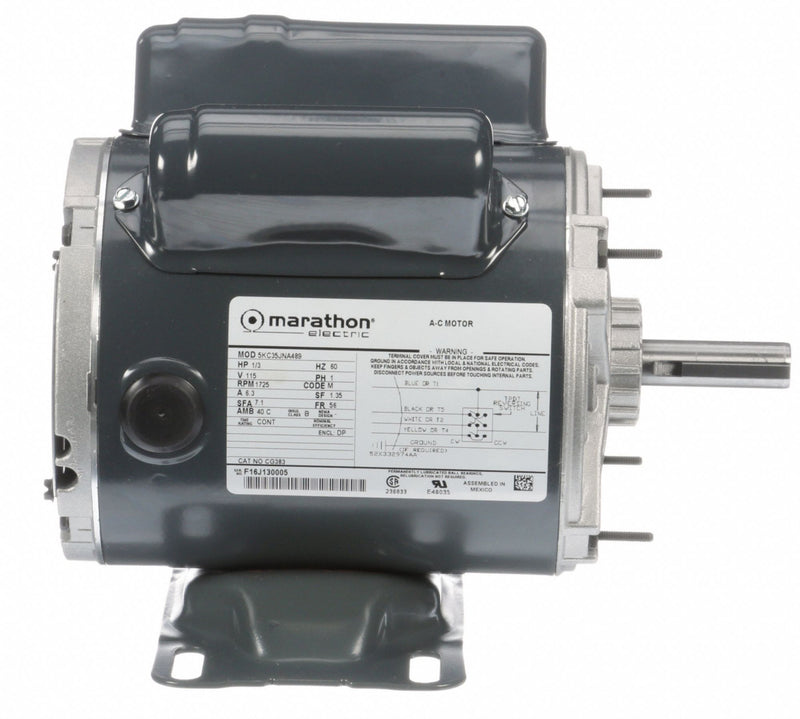

Marathon Motors 1/3 HP Instant Reverse Motor,Capacitor-Start,1725 Nameplate RPM,115 Voltage,Frame 56 - 5KC35JNA489

MarathonSKU: C1565633
MPN : 5KC35JNA489
Weight : 17.0 lb

filler

Price:
$606.70 $739.88

Availability : Usually Ships in 3-5 Business Days

Instant reverse motor feature electronic reversing with no moving parts required. Designed for mechanical doors, gates, hoists, and other equipment requiring remote control instant reversibility.

ItemInstant Reverse Motor
Motor ApplicationGarage/Gate Opener
Motor DesignCapacitor-Start
Motor Enclosure DesignOpen Dripproof
HP1/3
Nameplate RPM1725
Frame56
Voltage115
Full Load Amps6.3
Phase1
Hz60
Motor Mounting TypeRigid Base
Motor Mounting PositionAll Angle
Motor BearingsBall
Motor Thermal ProtectionNone
Motor Service Factor1.35
Ambient Temperature40 Degrees C
Motor Shaft DesignKeyed
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Ins. ClassB
Number of Wires4
ApplicationCranes, For Door Operators, Gates and Remote Control Instant Reversibility, Hoists, Machine Tools
StandardsCSA Certified, UL Recognized, and CE Certified
RPM Range1701-1800
Voltage Compatibility115, 120
