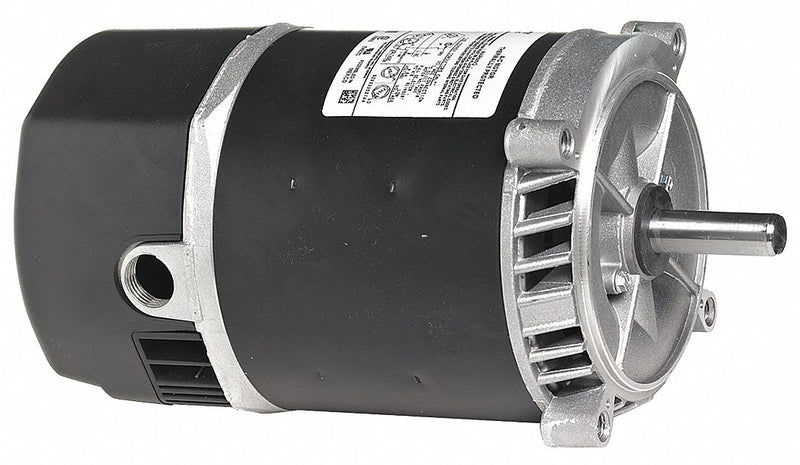

Jet Pump Motor; Motor Application: Pump; Motor Sub Application: Jet Pump; Motor Design: Capacitor-Start; Motor Enclosure Design: Open Dripproof; HP: 3/4; Nameplate RPM: 3450; Frame: 56C; Motor Shaft Rotation: CCWSE; Voltage: 115/230; Full Load Amps: 13/6.5; Phase: 1; Hz: 60; Motor Mounting Type: Face; Motor Mounting Position: All Angle; Motor Bearings: Ball; Motor Thermal Protection: Auto; Motor Service Factor: 1.5; Max. Ambient Temp.: 50 Degrees C; Shaft Dia.: 5/8 in; Shaft Length: 2 3/8 in; Motor Shaft Design: Keyed; Shaft Material: Stainless Steel; Overall Length: 13 1/2 in; Body Dia.: 5 5/8 in; Ins. Class: B; Duty: Continuous; Motor Efficiency Group: Standard Efficient; Nominal Efficiency: 70 %; Standards: CSA Certified (MC236833), UL Recognized (E14133); Voltage Compatibility: 115, 115/230, 120, 120/240, 230, 240
| Item | Jet Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Jet Pump |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| HP | 3/4 |
| Nameplate RPM | 3450 |
| Frame | 56C |
| Motor Shaft Rotation | CCWSE |
| Voltage | 115/230 |
| Full Load Amps | 13/6.5 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Face |
| Motor Mounting Position | All Angle |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1.5 |
| Max. Ambient Temp. | 50 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 3/8 in |
| Motor Shaft Design | Keyed |
| Shaft Material | Stainless Steel |
| Overall Length | 13 1/2 in |
| Body Dia. | 5 5/8 in |
| Ins. Class | B |
| Duty | Continuous |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 70 % |
| Standards | CSA Certified (MC236833), UL Recognized (E14133) |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
