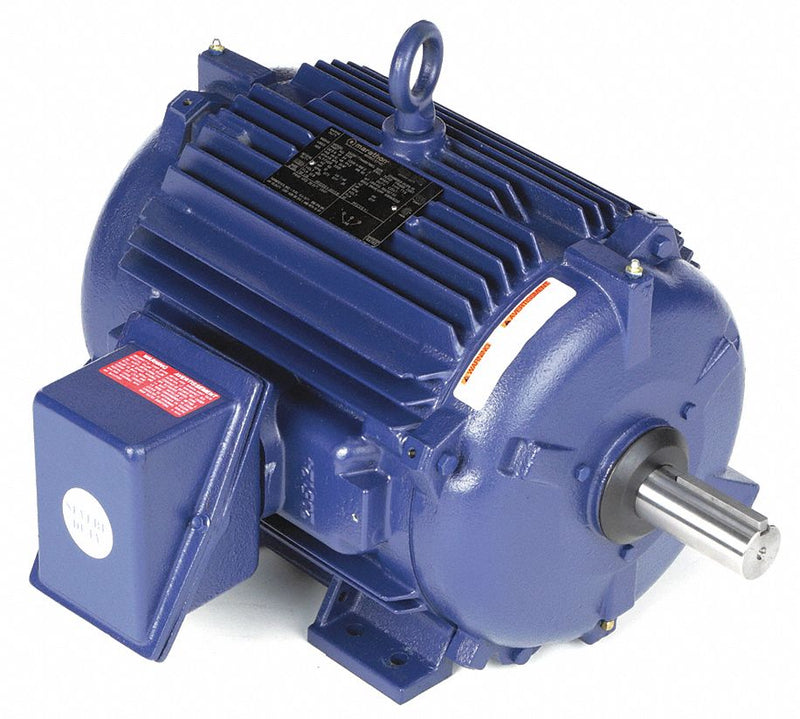

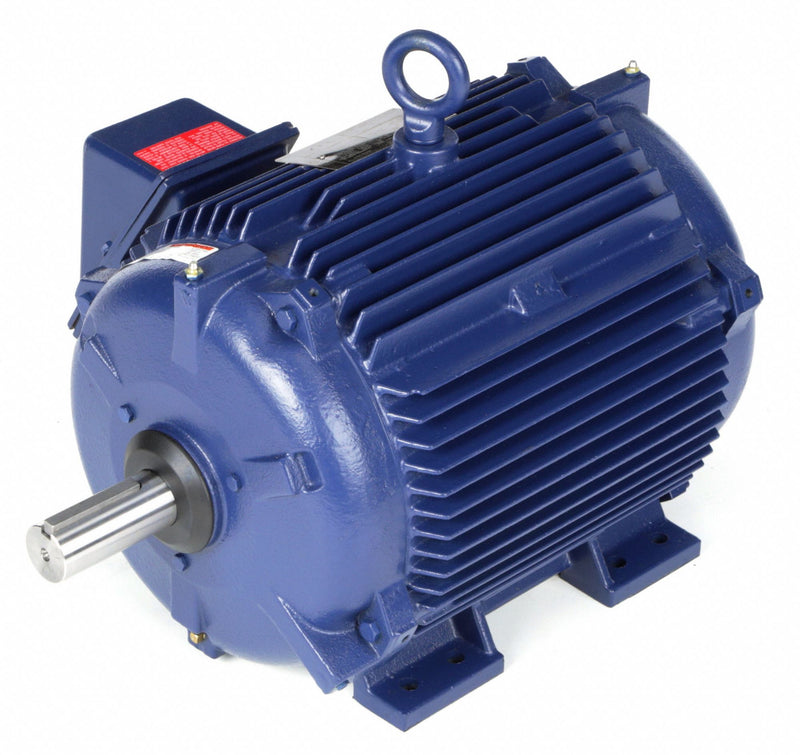

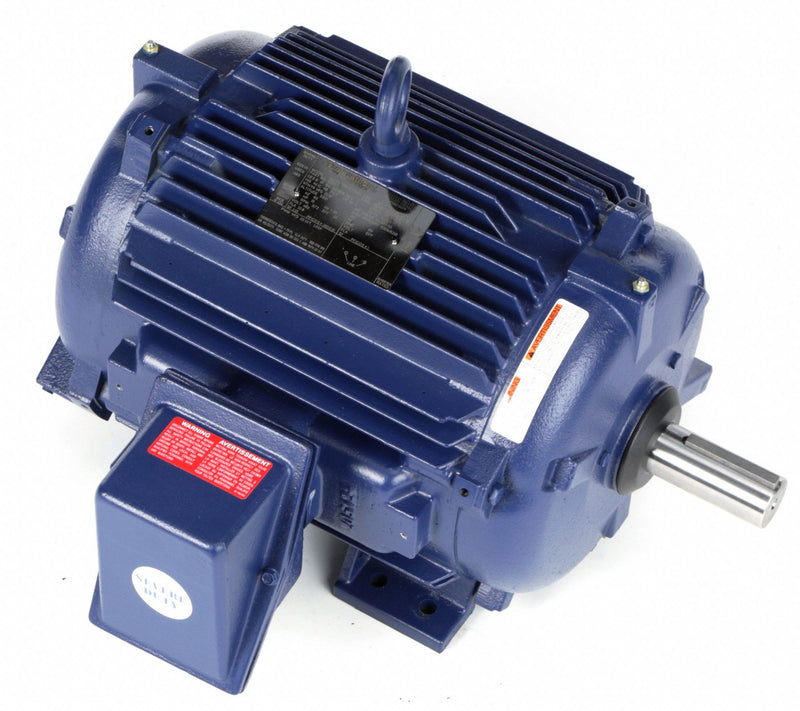

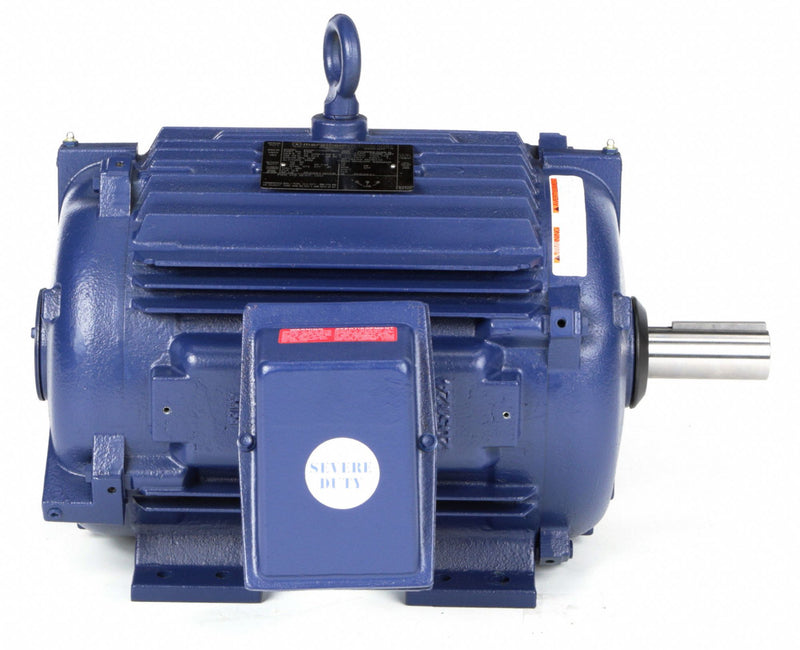

Kiln Motor; Motor Application: Kiln; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Air-Over; HP: 10; Nameplate RPM: 1172; Frame: 256T; Voltage: 230/460; Hz: 60; Phase: 3; Full Load Amps: 12.8 A; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Thermal Protection: T-Stat; Ins. Class: H; Motor Service Factor: 1.15; Motor Bearings: Ball; Max. Ambient Temp.: 90 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 1 5/8 in; Shaft Length: 4 3/16 in; Length Less Shaft: 18 3/16 in; Lead Length: 8 ft; Overall Length: 22 3/8 in; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 94.5 %; CC Number: CC003A; Inverter Rated: Yes; Motor Frame Material: Cast Iron; Standards: CSA Certified (LR2025), UL Recognized (E49747); Warranty (Years): 2; Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460; Green Certification or Other Recognition: NEMA Premium(R) Rated
| Item | Kiln Motor |
| Motor Application | Kiln |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| HP | 10 |
| Nameplate RPM | 1172 |
| Frame | 256T |
| Voltage | 230/460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 12.8 A |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Thermal Protection | T-Stat |
| Ins. Class | H |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Max. Ambient Temp. | 90 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1 5/8 in |
| Shaft Length | 4 3/16 in |
| Length Less Shaft | 18 3/16 in |
| Lead Length | 8 ft |
| Overall Length | 22 3/8 in |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 94.5 % |
| CC Number | CC003A |
| Inverter Rated | Yes |
| Motor Frame Material | Cast Iron |
| Standards | CSA Certified (LR2025), UL Recognized (E49747) |
| Warranty (Years) | 2 |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
