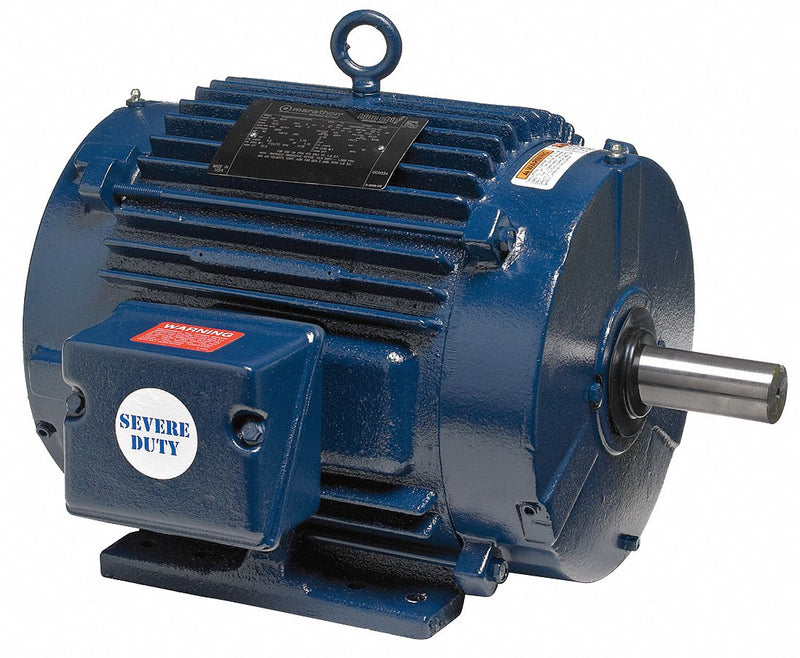

Kiln Motor; Motor Application: Kiln; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Air-Over; HP: 5; Nameplate RPM: 1170; Frame: 215T; Voltage: 460; Hz: 60; Phase: 3; Full Load Amps: 6.9 A; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Thermal Protection: T-Stat; Ins. Class: H; Motor Service Factor: 1.15; Motor Bearings: Ball; Max. Ambient Temp.: 90 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 1 3/8 in; Shaft Length: 3 9/16 in; Length Less Shaft: 13 5/8 in; Lead Length: 8 ft; Overall Length: 17 3/16 in; Motor Efficiency Group: Energy Efficient; Nominal Efficiency: 92.4 %; Inverter Rated: Yes; Motor Frame Material: Cast Iron; Standards: CSA Certified (LR2025), UL Recognized (E49747); Warranty (Years): 2; Voltage Compatibility: 208-230/460, 460
| Item | Kiln Motor |
| Motor Application | Kiln |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| HP | 5 |
| Nameplate RPM | 1170 |
| Frame | 215T |
| Voltage | 460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 6.9 A |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Thermal Protection | T-Stat |
| Ins. Class | H |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Max. Ambient Temp. | 90 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1 3/8 in |
| Shaft Length | 3 9/16 in |
| Length Less Shaft | 13 5/8 in |
| Lead Length | 8 ft |
| Overall Length | 17 3/16 in |
| Motor Efficiency Group | Energy Efficient |
| Nominal Efficiency | 92.4 % |
| Inverter Rated | Yes |
| Motor Frame Material | Cast Iron |
| Standards | CSA Certified (LR2025), UL Recognized (E49747) |
| Warranty (Years) | 2 |
| Voltage Compatibility | 208-230/460, 460 |
