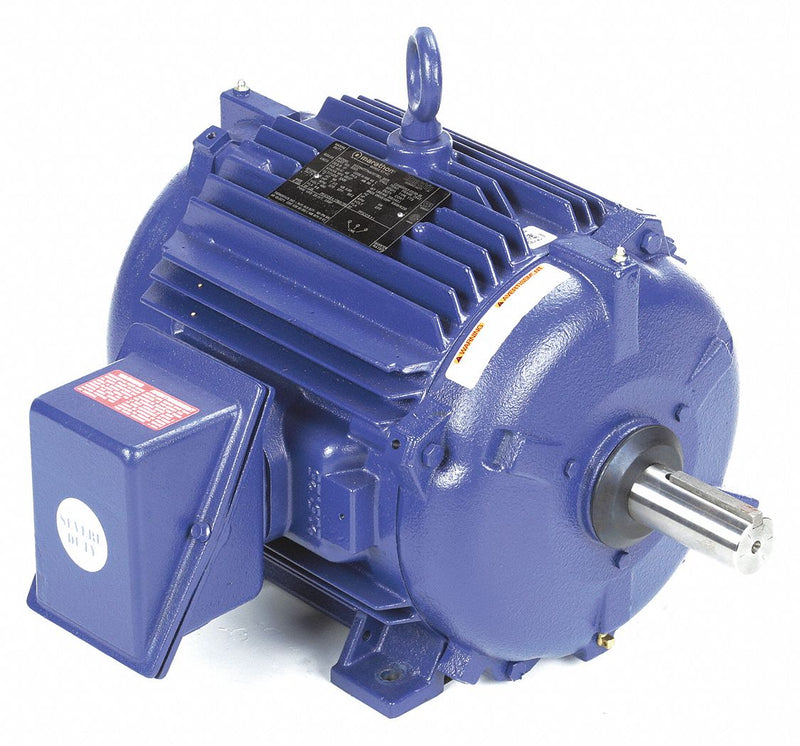

Marathon Motors 7 1/2 HP Kiln Motor,3-Phase,1170 Nameplate RPM,460 Voltage,Frame 254T - 254TTTNA17077

MarathonSKU: C1509618
MPN : 254TTTNA17077
Weight : 318.0 lb
filler

Price:
$3,814.87 $4,652.28

Availability : Usually Ships in 1-3 Business Days

Kiln Motor; Motor Application: Kiln; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Air-Over; HP: 7 1/2; Nameplate RPM: 1170; Frame: 254T; Voltage: 460; Hz: 60; Phase: 3; Full Load Amps: 9.8 A; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Thermal Protection: T-Stat; Ins. Class: H; Motor Service Factor: 1.15; Motor Bearings: Ball; Max. Ambient Temp.: 90 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 1 5/8 in; Shaft Length: 4 3/16 in; Length Less Shaft: 16 7/16 in; Lead Length: 8 ft; Overall Length: 20 5/8 in; Motor Efficiency Group: Energy Efficient; Nominal Efficiency: 92.4 %; Inverter Rated: Yes; Motor Frame Material: Cast Iron; Standards: CSA Certified (LR2025), UL Recognized (E49747); Warranty (Years): 2; Voltage Compatibility: 208-230/460, 460

ItemKiln Motor
Motor ApplicationKiln
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Air-Over
HP7 1/2
Nameplate RPM1170
Frame254T
Voltage460
Hz60
Phase3
Full Load Amps9.8 A
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Thermal ProtectionT-Stat
Ins. ClassH
Motor Service Factor1.15
Motor BearingsBall
Max. Ambient Temp.90 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 5/8 in
Shaft Length4 3/16 in
Length Less Shaft16 7/16 in
Lead Length8 ft
Overall Length20 5/8 in
Motor Efficiency GroupEnergy Efficient
Nominal Efficiency92.4 %
Inverter RatedYes
Motor Frame MaterialCast Iron
StandardsCSA Certified (LR2025), UL Recognized (E49747)
Warranty (Years)2
Voltage Compatibility208-230/460, 460
