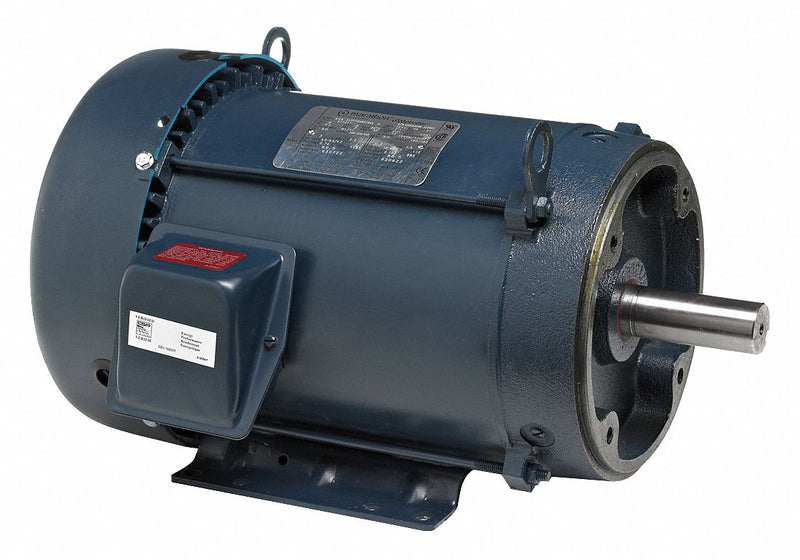

Marathon Motors 1 1/2 HP, General Purpose Motor, 3-Phase, 1185 Nameplate RPM, 230/460 Voltage, 182TC Frame - 182TTFBD6078

MarathonSKU: C1491819
MPN : 182TTFBD6078
Weight : 91.0 lb


$1,244.84 $2,007.80

Availability : Usually Ships in 15 Business Days

Designed for air moving equipment, this general purpose motor helps keep fans moving. It features a totally enclosed, fan-cooled enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1 1/2
Nameplate RPM1185
Full Load Amps4.8/2.4
No. of Speeds1
Motor Mounting TypeFace/Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 1/8 in
Shaft Length2 7/8 in
Length Less Shaft12 7/8 in
Overall Length15 3/4 in
Motor Shaft DesignKeyed
StandardsCE, CSA (LR2025), UL (E49747)
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency89.5 %
CC NumberCC003A
Inverter RatedNo
Manufacturers Warranty Length1 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
