Availability : Usually Ships in 15 Business Days

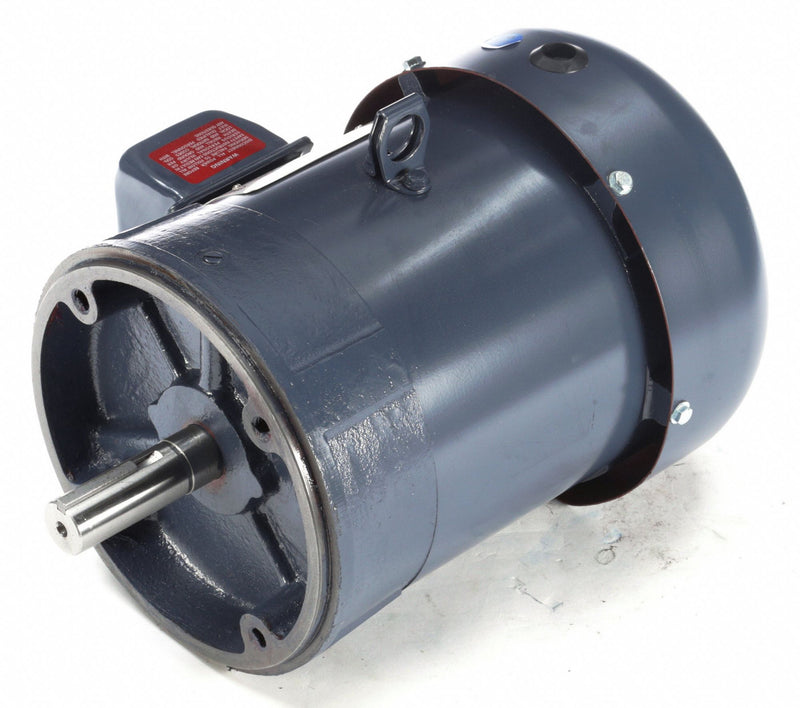

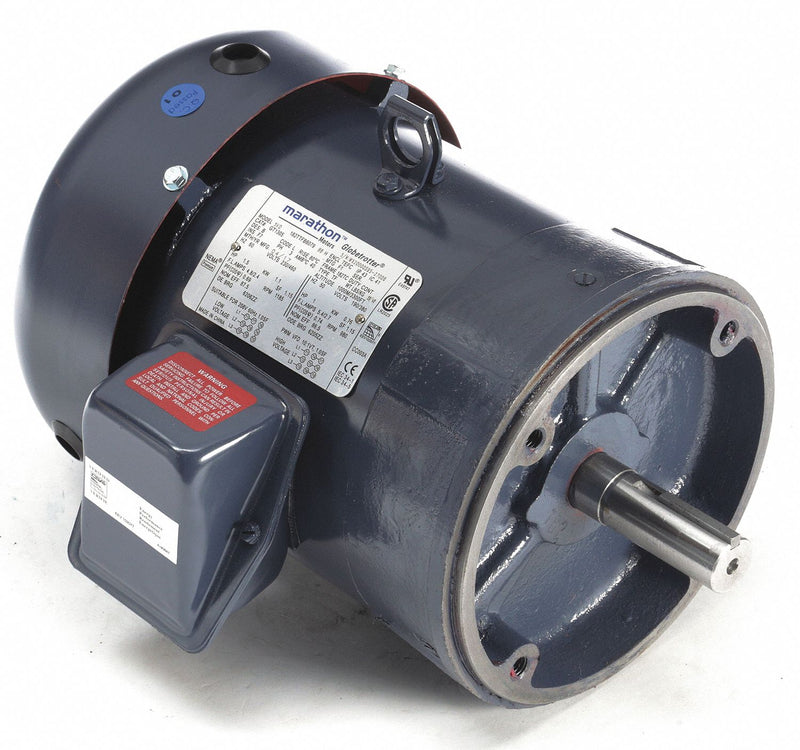

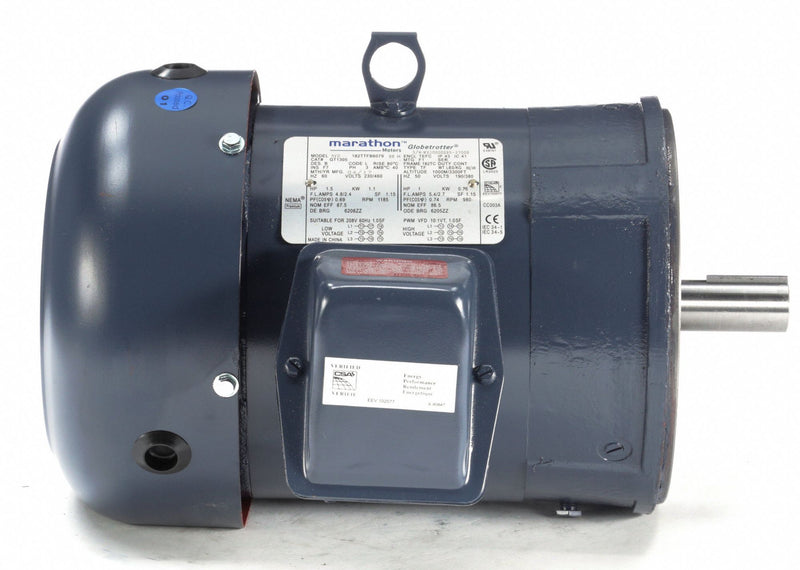

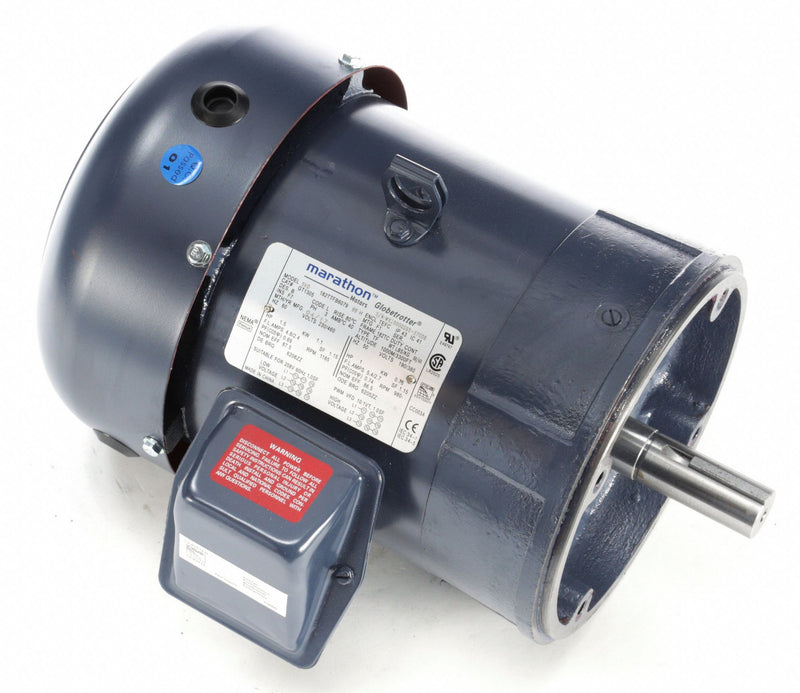

Designed for air moving equipment, this general purpose motor helps keep fans moving. It features a totally enclosed, fan-cooled enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.
Item | General Purpose Motor |
Motor Application | General Application |
Motor Design | 3-Phase |
Motor Enclosure Design | Totally Enclosed Fan-Cooled |
HP | 1 1/2 |
Nameplate RPM | 1185 |
Frame | 182TCV |
Voltage | 230/460 |
Hz | 60/50 |
Phase | 3 |
Full Load Amps | 4.8/2.4 |
No. of Speeds | 1 |
Motor Mounting Type | Face |
Motor Mounting Position | Vertical Shaft Down |
Motor Thermal Protection | None |
Ins. Class | F |
Motor Service Factor | 1.15 |
Motor Bearings | Ball |
Motor Frame Material | Rolled Steel |
Max. Ambient Temp. | 40 Degrees C |
Motor Shaft Rotation | CW/CCW |
Shaft Dia. | 1 1/8 in |
Shaft Length | 2 7/8 in |
Length Less Shaft | 12 7/8 in |
Overall Length | 15 3/4 in |
Motor Shaft Design | Keyed |
Standards | CE, CSA (LR2025), UL (E49747) |
Duty | Continuous |
Motor Efficiency Group | NEMA Premium Efficient |
Nominal Efficiency | 87.5 % |
CC Number | CC003A |
Inverter Rated | No |
Manufacturers Warranty Length | 1 yr |
