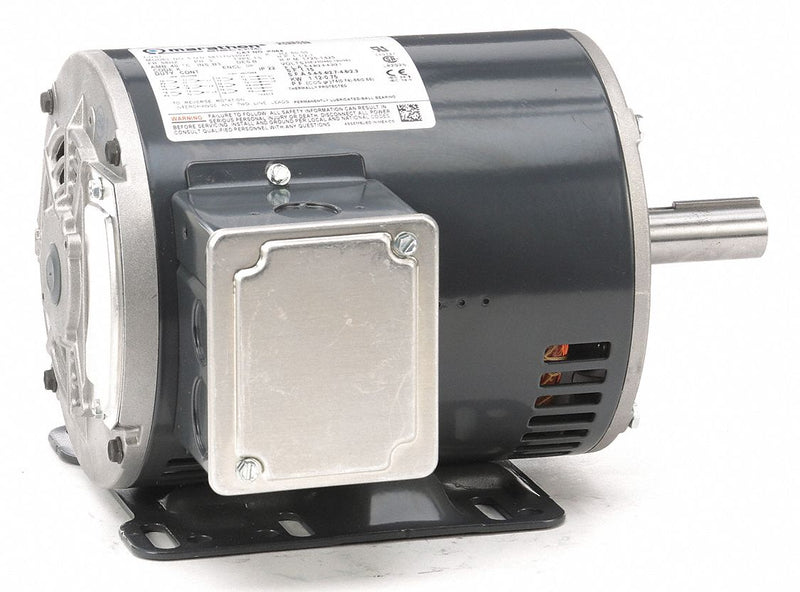

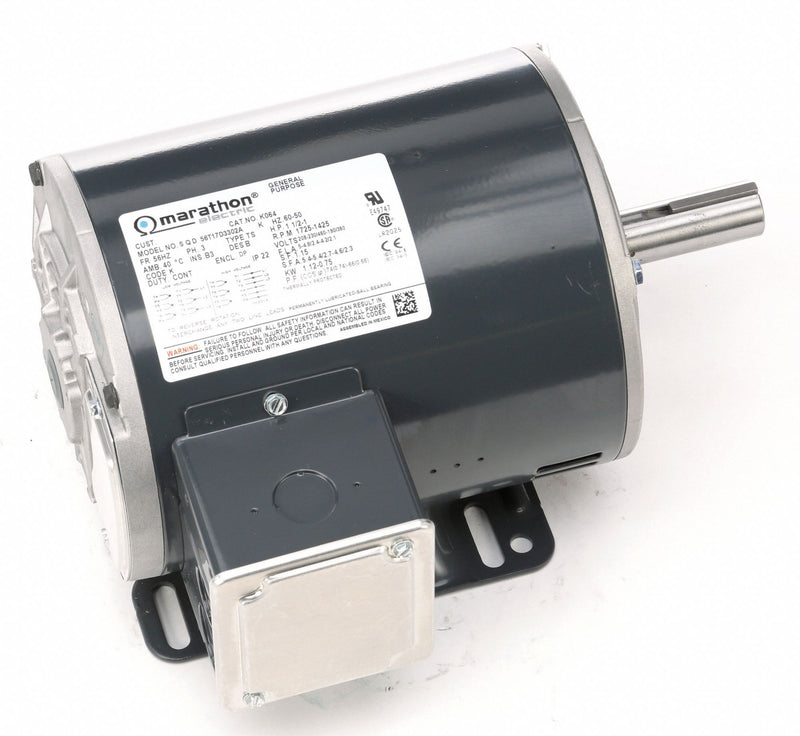

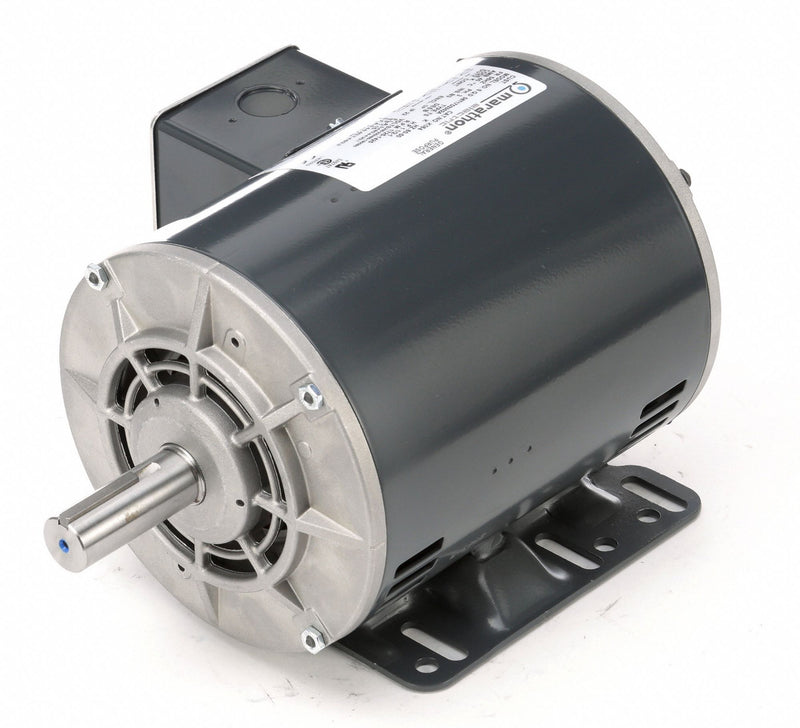

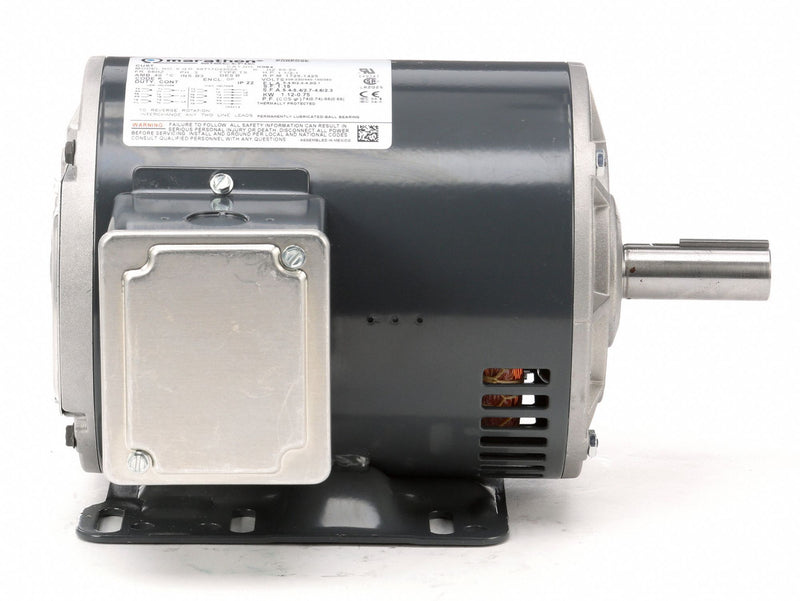

Marathon Motors 1 1/2 HP, General Purpose Motor, 3-Phase, 1725 Nameplate RPM, 208-230/460 Voltage, 56HZ Frame - 056T17D3302

MarathonSKU: C1559344
MPN : 056T17D3302
Weight : 29.55 lb
filler

Price:
$468.32 $571.12

Availability : Usually Ships in 1-3 Business Days

Designed for mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps, this general purpose motor helps keep equipment moving. It features an open dripproof motor enclosure design.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP1 1/2
Nameplate RPM1725
Frame56HZ
Voltage208-230/460
Hz60/50
Phase3
Full Load Amps4.8-4.8/2.4
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionAuto
Ins. ClassB
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Length Less Shaft8 11/16 in
Overall Length11 in
Motor Shaft DesignKeyed
StandardsCSA (LR2025), UL (E49747)
DutyContinuous
Motor Efficiency GroupStandard Efficient
Nominal Efficiency85.5 %
Inverter RatedYes
Manufacturers Warranty Length1 yr
