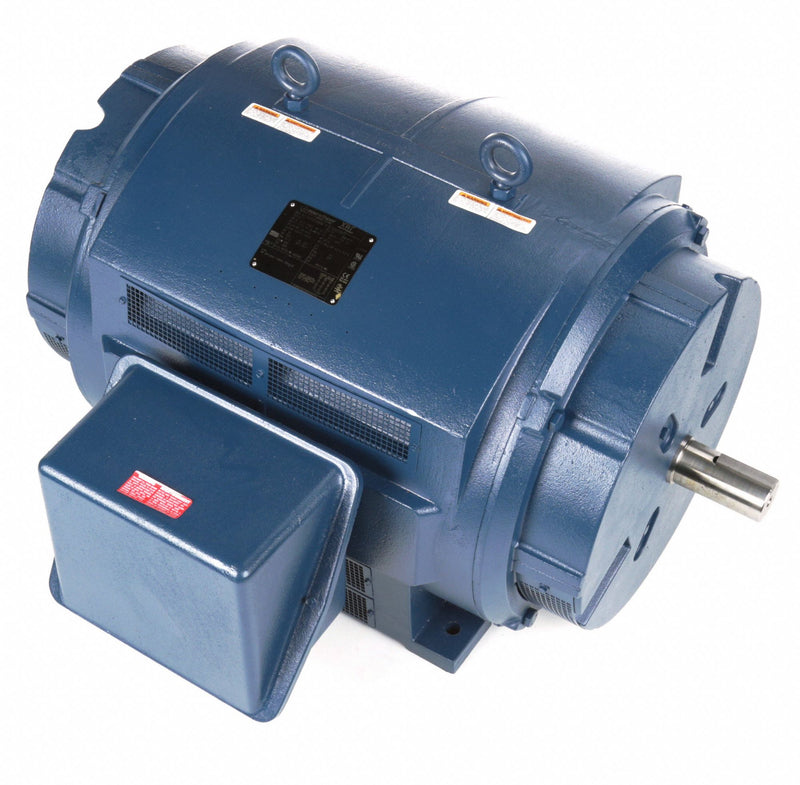

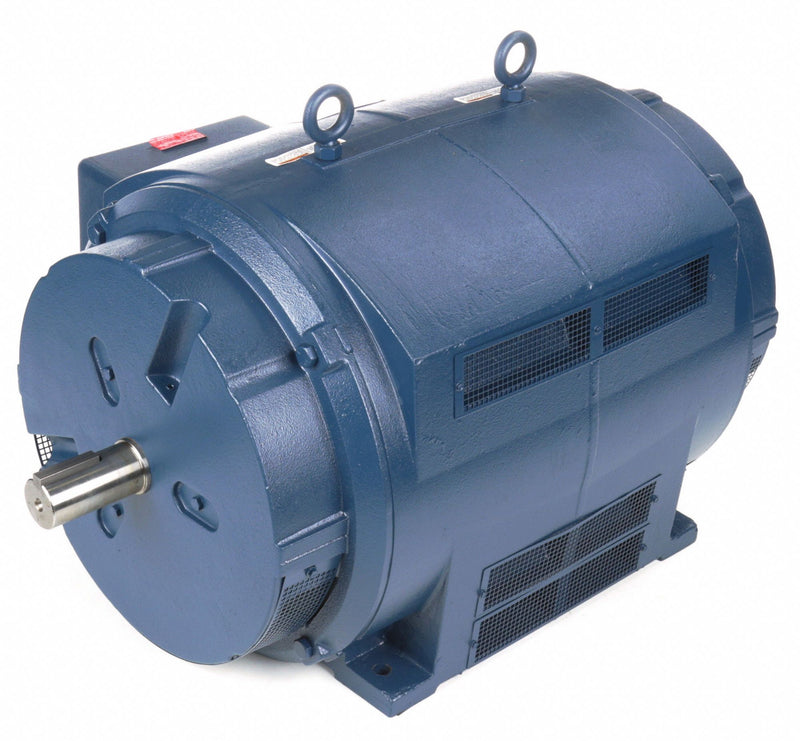

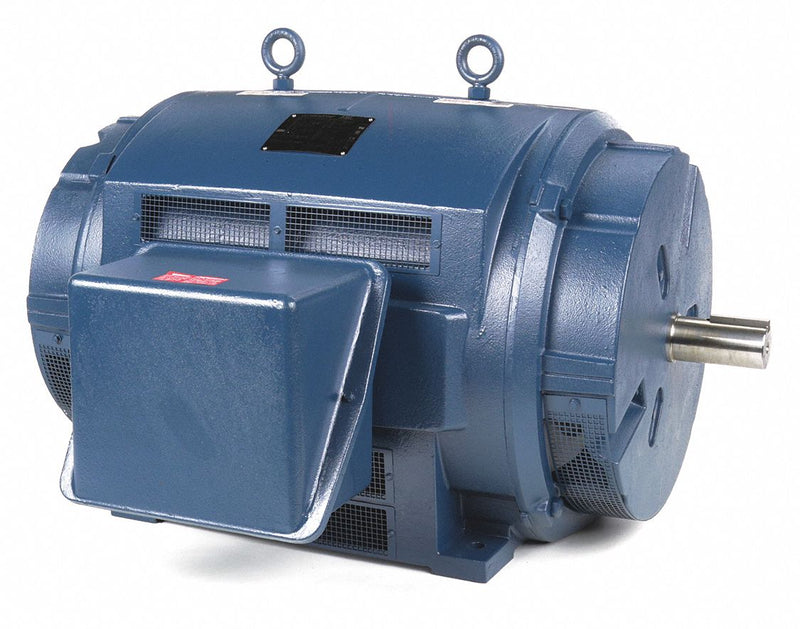

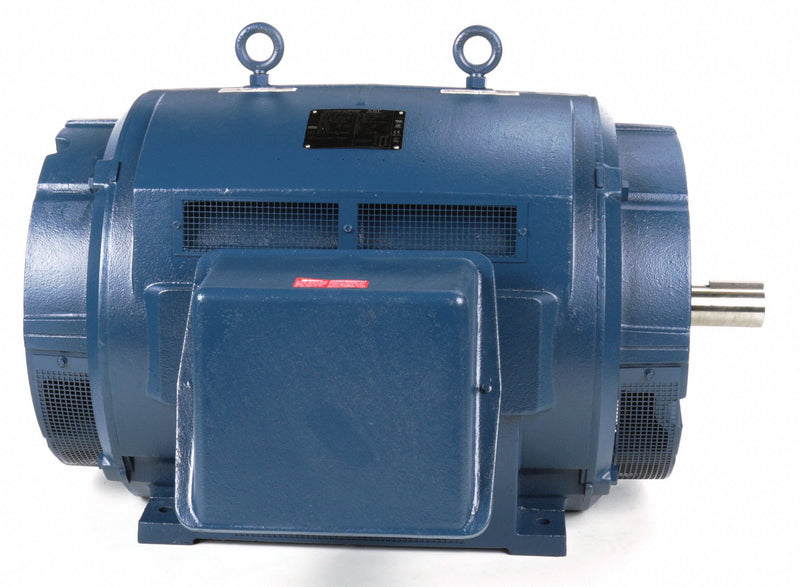

Marathon Motors 350 HP, General Purpose Motor, 3-Phase, 3570 Nameplate RPM, 460 Voltage, 447TS Frame - 447TSTDCD6003

MarathonSKU: C1517144
MPN : 447TSTDCD6003
Weight : 1900.0 lb

filler

Price:
$26,601.14 $42,905.06

Availability : Usually Ships in 15 Business Days

Designed for mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps, this general purpose motor helps keep equipment moving. It features an open dripproof motor enclosure design.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP350
Nameplate RPM3570
Frame447TS
Voltage460
Hz60
Phase3
Full Load Amps385
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.2 3/8 in
Shaft Length4 3/4 in
Length Less Shaft34 1/2 in
Overall Length39 1/2 in
Motor Shaft DesignKeyed
StandardsCE, CSA (LR2025), UL (E49747)
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency86.5 %
CC NumberCC003A
Inverter RatedYes
Manufacturers Warranty Length1 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
