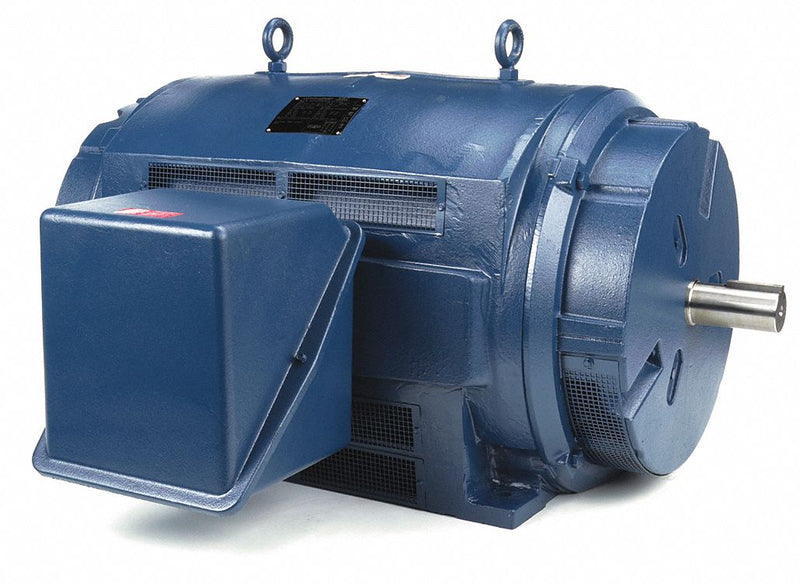

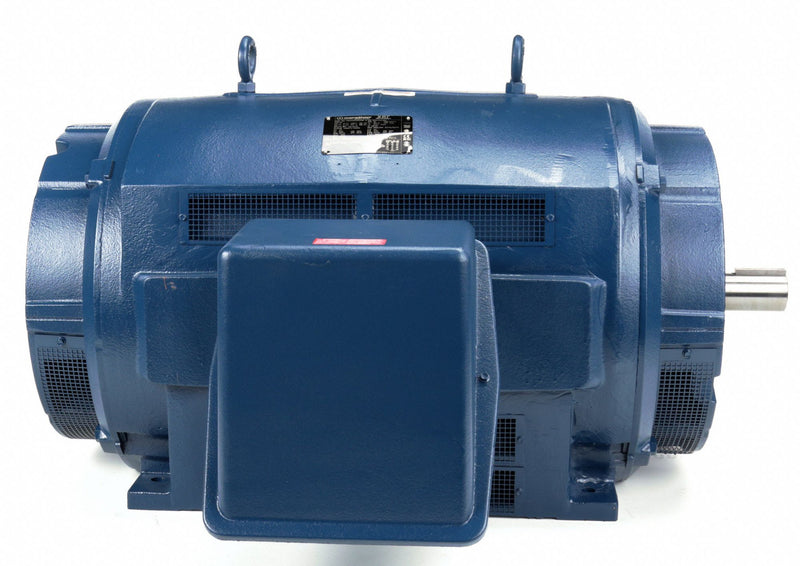

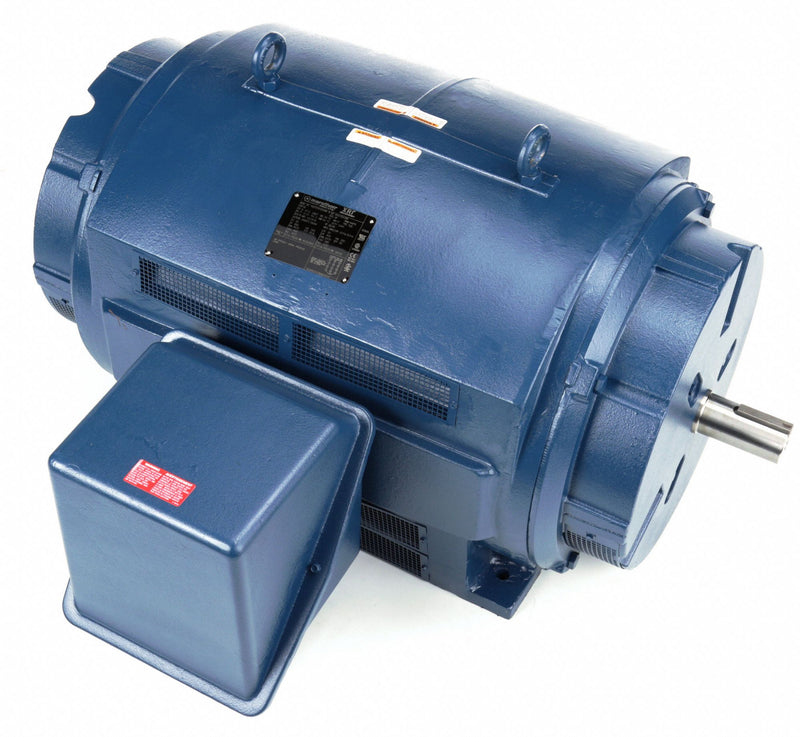

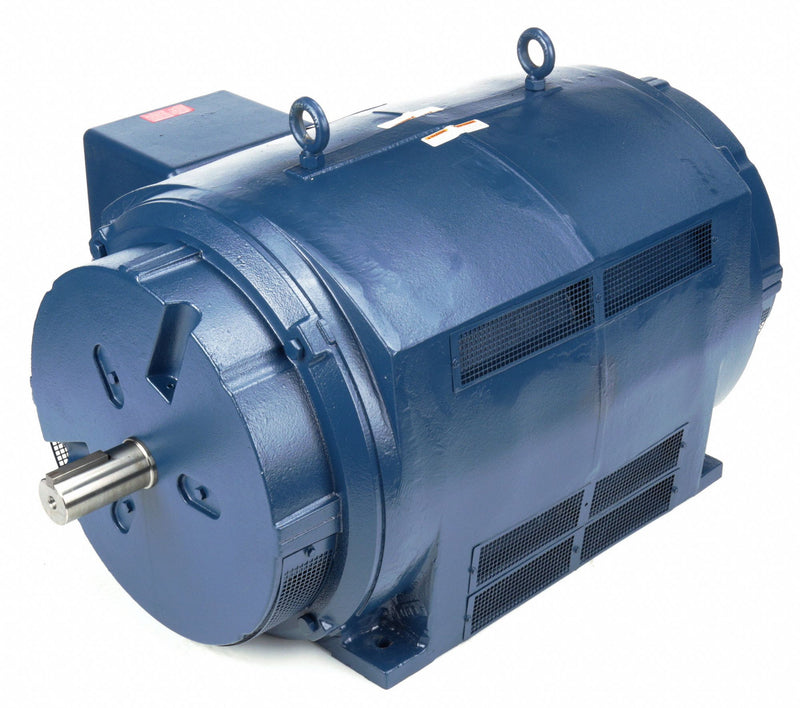

Marathon Motors 450 HP, General Purpose Motor, 3-Phase, 3670 Nameplate RPM, 460 Voltage, 449TS Frame - 449TSTDCD6002

MarathonSKU: C1517147
MPN : 449TSTDCD6002
Weight : 1900.0 lb


$35,956.54 $57,994.43

Availability : Usually Ships in 15 Business Days

Designed for mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps, this general purpose motor helps keep equipment moving. It features an open dripproof motor enclosure design.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
Nameplate RPM3670
Full Load Amps495
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.2 3/8 in
Shaft Length4 3/4 in
Length Less Shaft39 1/2 in
Overall Length44 1/2 in
Motor Shaft DesignKeyed
StandardsCE, CSA (LR2025), UL (E49747)
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency90.2 %
CC NumberCC003A
Inverter RatedYes
Manufacturers Warranty Length1 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
