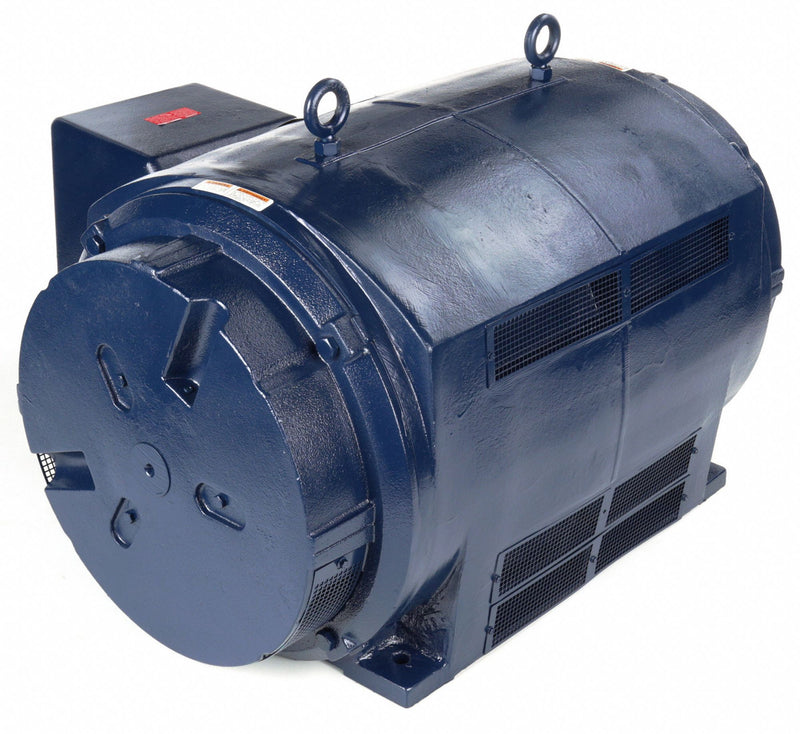

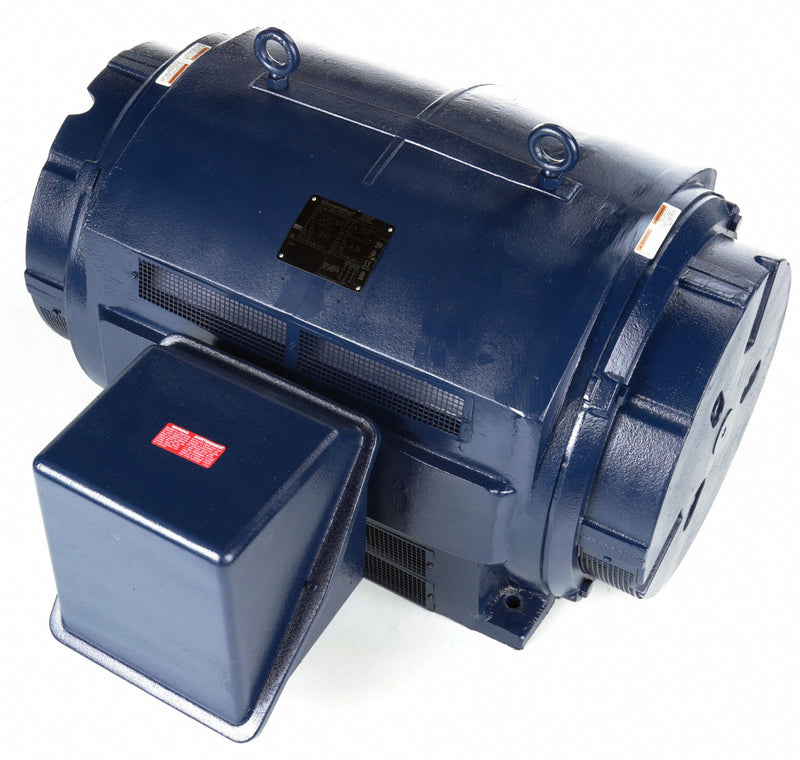

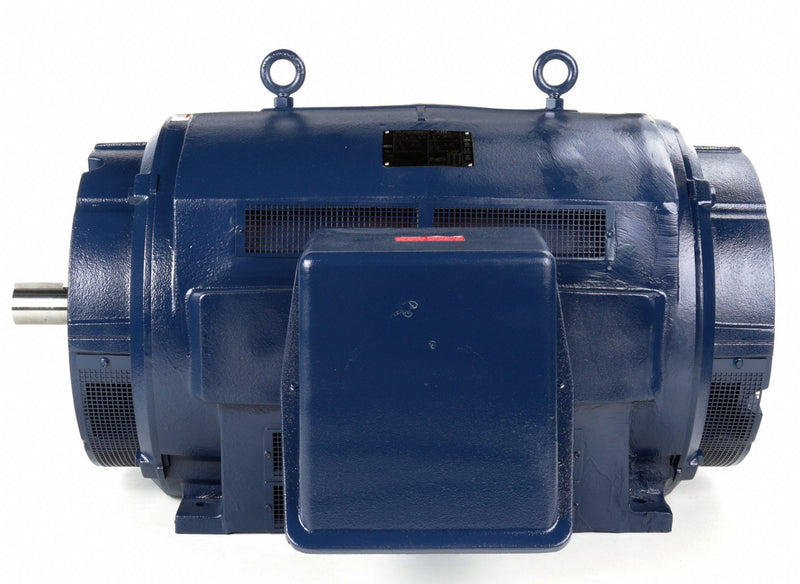

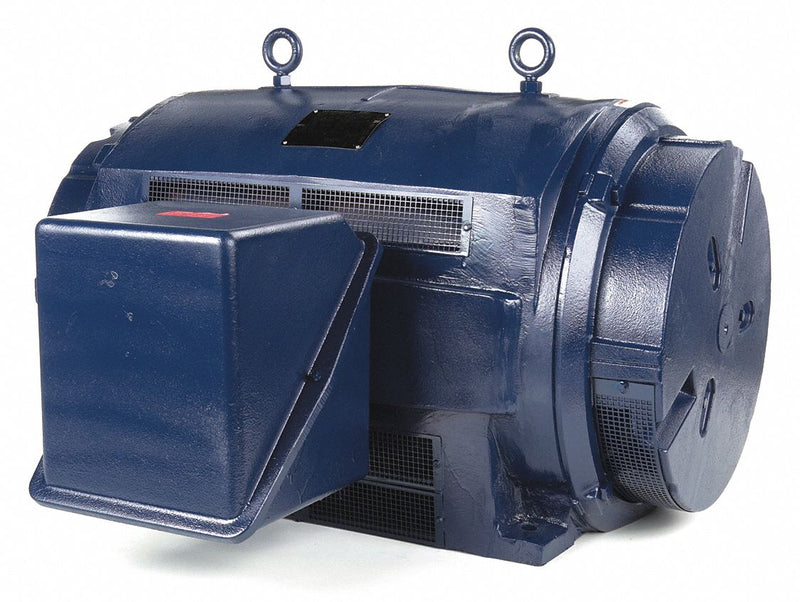

Marathon Motors 500 HP, General Purpose Motor, 3-Phase, 3570 Nameplate RPM, 460 Voltage, 449TS Frame - 449TSTDN16005

MarathonSKU: C1517148
MPN : 449TSTDN16005
Weight : 1900.0 lb
filler

Price:
$39,507.19 $48,179.50

Availability : Usually Ships in 1-3 Business Days

Designed for mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps, this general purpose motor helps keep equipment moving. It features an open dripproof motor enclosure design.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP500
Nameplate RPM3570
Frame449TS
Voltage460
Hz60/50
Phase3
Full Load Amps546
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassH
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.2 3/8 in
Shaft Length4 3/4 in
Length Less Shaft39 1/2 in
Overall Length44 1/2 in
Motor Shaft DesignKeyed
StandardsCE, CSA (LR2025), UL (E49747)
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency89.5 %
CC NumberCC003A
Inverter RatedYes
Manufacturers Warranty Length1 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
