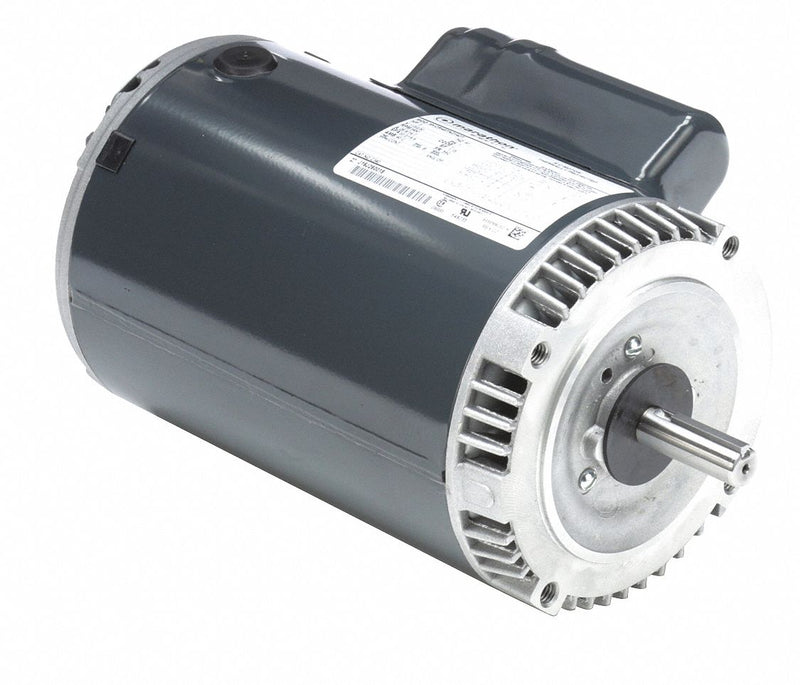

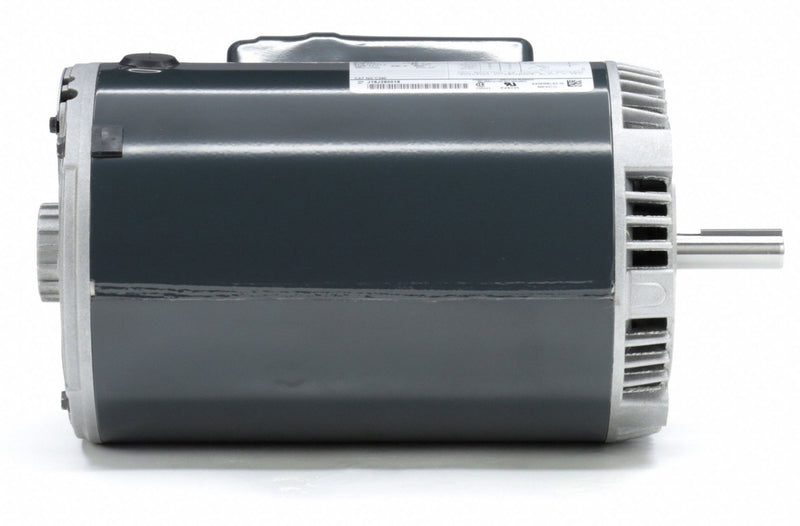

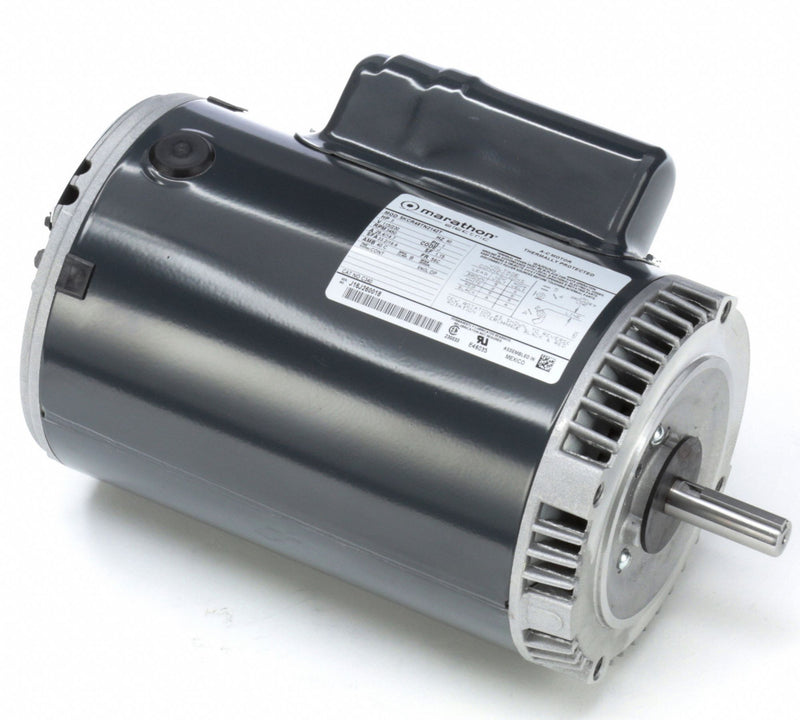

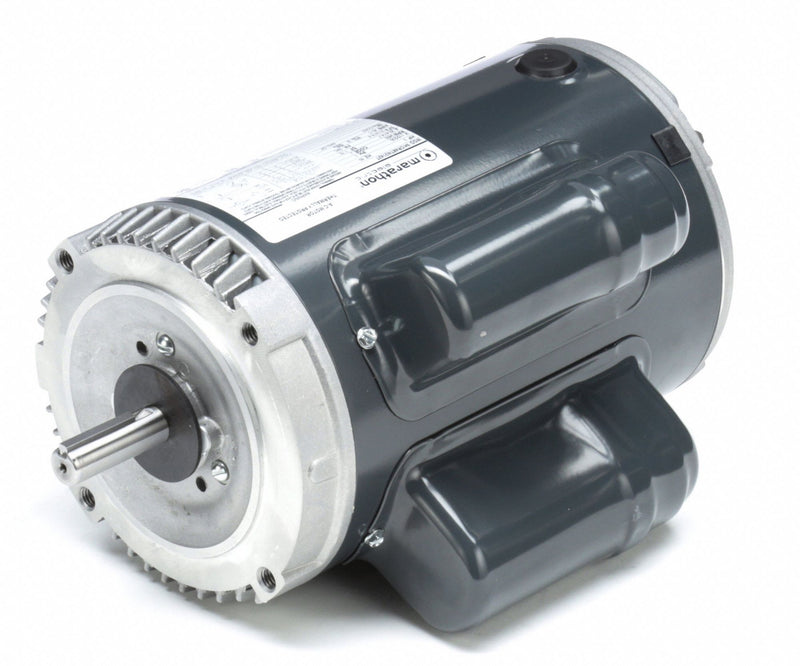

Marathon Motors 3 HP Jet Pump Motor, Capacitor-Start, 3450 Nameplate RPM, 115/230 Voltage, 56C Frame - 5KCR48TN2142T

MarathonSKU: C1560907
MPN : 5KCR48TN2142T
Weight : 37.05 lb
filler

Price:
$1,062.43 $1,295.65

Availability : Usually Ships in 1-3 Business Days

1-phase jet pump motor features a 2-compartment design with locked ball bearings on shaft end. Voltage-change plug and enlarged conduit box provide easy terminal lead connection.

ItemJet Pump Motor
Motor ApplicationPump
Motor Sub ApplicationJet Pump
Motor DesignCapacitor-Start
Motor Enclosure DesignOpen Dripproof
HP3
Nameplate RPM3450
Frame56C
Motor Shaft RotationCW/CCW
Voltage115/230
Full Load Amps29.4/14.7
Phase1
Hz60
Motor Mounting TypeFace
Motor Mounting PositionAll Angle
Motor BearingsBall
Motor Thermal ProtectionAuto
Motor Service Factor1.15
Max. Ambient Temp.40 Degrees C
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Motor Shaft DesignKeyed
Shaft MaterialStainless Steel
Overall Length12 11/16 in
Body Dia.6 21/50 in
Ins. ClassB
DutyContinuous
Motor Efficiency GroupStandard Efficient
Nominal Efficiency80 %
IncludesShaft Slinger
StandardsCSA Certified, UL Recognized
Voltage Compatibility115, 115/230, 120, 120/240, 230, 240
