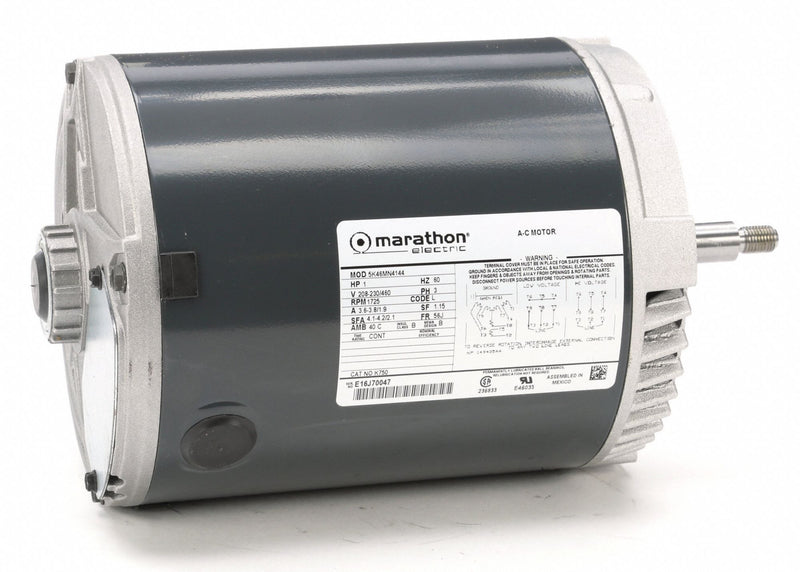

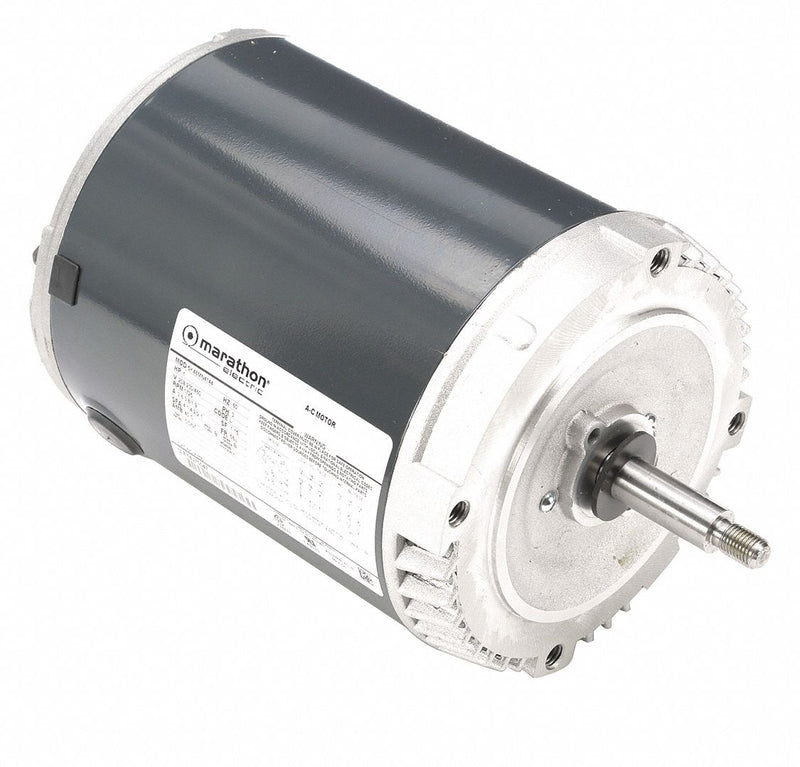

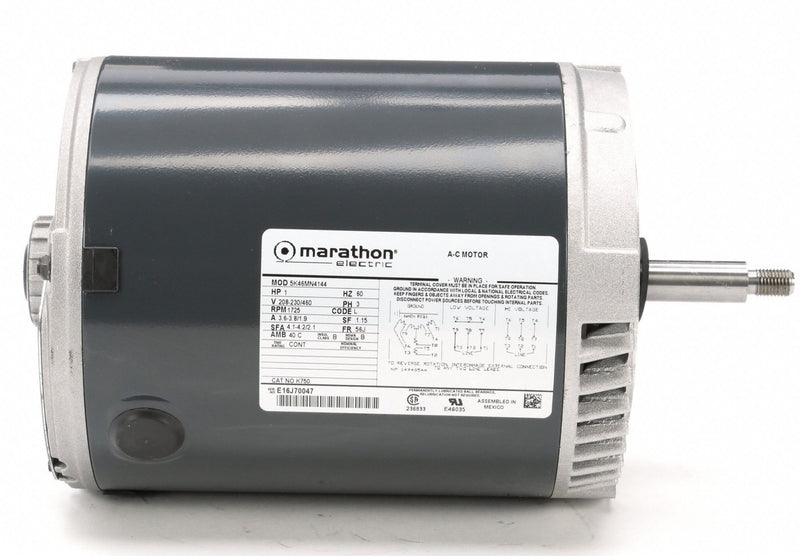

Marathon Motors 1 HP Jet Pump Motor, 3-Phase, 1725 Nameplate RPM, 208-230/460 Voltage, 56J Frame - 5K46MN4144

MarathonSKU: C1561505
MPN : 5K46MN4144
Weight : 23.6 lb

filler

Price:
$467.92 $570.63

Availability : Usually Ships in 1-3 Business Days

This durable MARATHON MOTORS jet pump motor is suitable for use in industrial, commercial, centrifugal, and hydraulic pumps. Model comes with a shaft slinger and a gasketed conduit box to help protect motor against moisture and contamination.

ItemJet Pump Motor
Motor ApplicationPump
Motor Sub ApplicationJet Pump
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP1
Nameplate RPM1725
Frame56J
Motor Shaft RotationCW/CCW
Voltage208-230/460
Full Load Amps3.6-3.8/1.9
Phase3
Hz60
Motor Mounting TypeFace
Motor Mounting PositionAll Angle
Motor BearingsBall
Motor Thermal ProtectionNone
Motor Service Factor1.15
Max. Ambient Temp.40 Degrees C
Shaft Dia.5/8 in
Shaft Length2 3/8 in
Motor Shaft DesignThreaded
Shaft MaterialStainless Steel
Overall Length11 1/4 in
Body Dia.6 21/50 in
Ins. ClassB
DutyContinuous
Motor Efficiency GroupStandard Efficient
Nominal Efficiency78.5 %
IncludesShaft Slinger and Gasketed Conduit Box
StandardsCSA Certified, UL Recognized
Voltage Compatibility208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
