Marathon Motors 2 HP Jet Pump Motor, 3-Phase, 3450 Nameplate RPM, 208-230/460 Voltage, 56J Frame - 5K49NN2178

MarathonSKU: C1561490
MPN : 5K49NN2178
Weight : 27.95 lb


$544.61 $664.16

Availability : Usually Ships in 1-3 Business Days

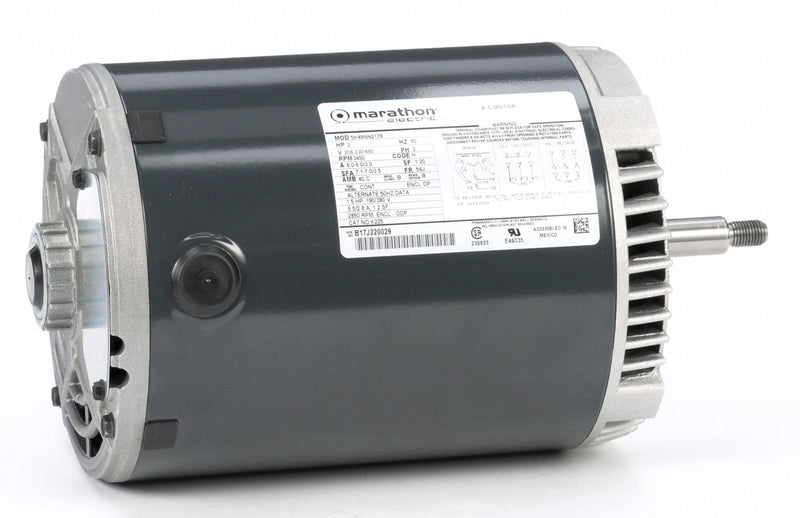

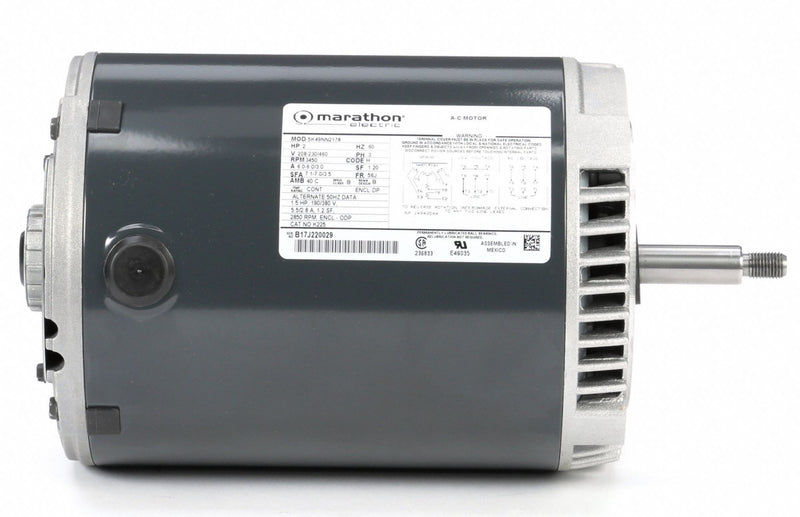

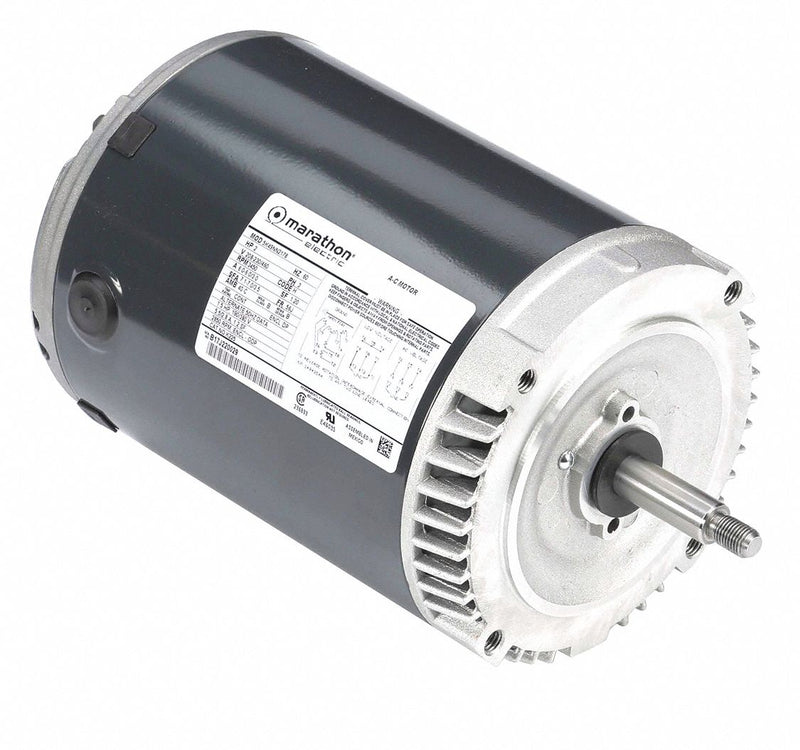

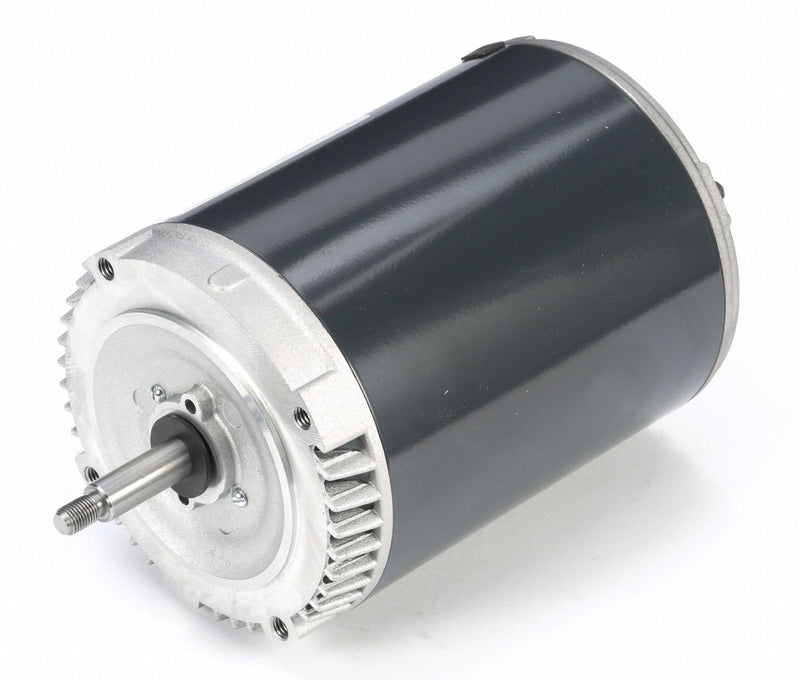

This durable MARATHON MOTORS jet pump motor is suitable for use in industrial, commercial, centrifugal, and hydraulic pumps. Model comes with a shaft slinger and a gasketed conduit box to help protect motor against moisture and contamination.

ItemJet Pump Motor
Motor ApplicationPump
Motor Sub ApplicationJet Pump
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
Nameplate RPM3450
Motor Shaft RotationCW/CCW
Full Load Amps6-6/3
Motor Mounting TypeFace
Motor Mounting PositionAll Angle
Motor BearingsBall
Motor Thermal ProtectionNone
Motor Service Factor1.2
Max. Ambient Temp.40 Degrees C
Shaft Dia.5/8 in
Shaft Length2 3/8 in
Motor Shaft DesignThreaded
Shaft MaterialStainless Steel
Overall Length11 7/8 in
Body Dia.6 21/50 in
Ins. ClassB
Motor Efficiency GroupStandard Efficient
Nominal Efficiency80 %
IncludesShaft Slinger and Gasketed Conduit Box
StandardsCSA Certified, UL Recognized
Voltage Compatibility208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
