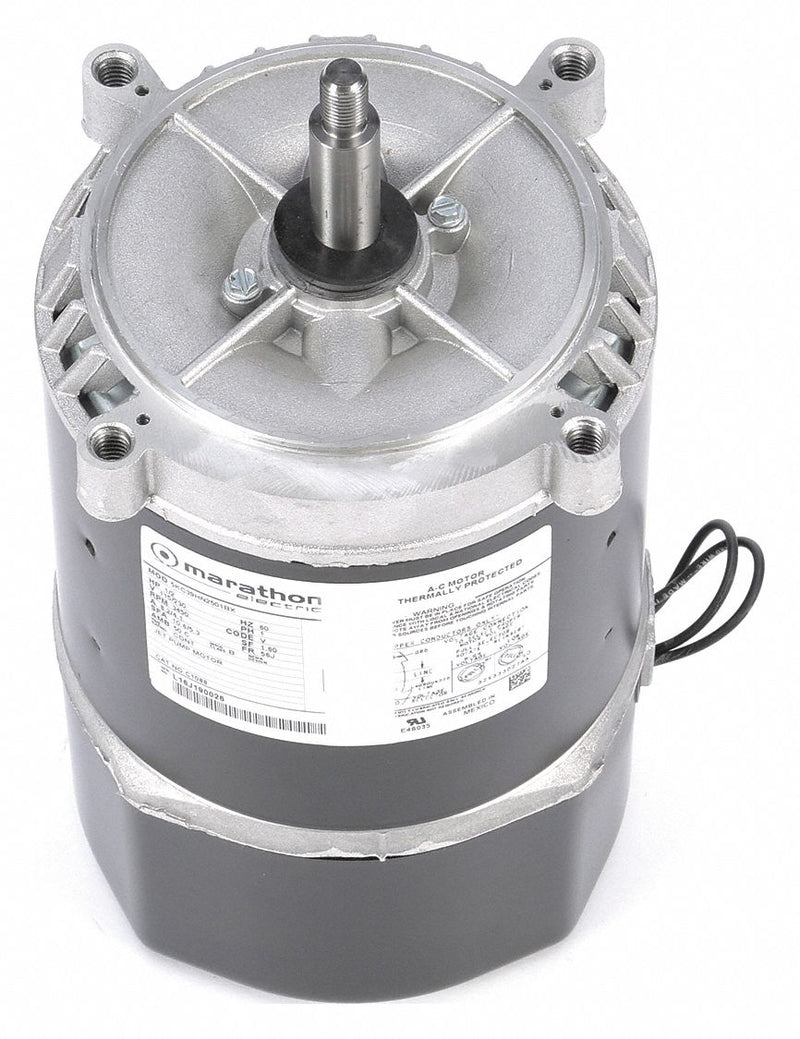

Marathon Motors 1/2 HP Jet Pump Motor, Capacitor-Start, 3450 Nameplate RPM, 115/230 Voltage, 56J Frame - 5KC39HN2501X

MarathonSKU: C1551038
MPN : 5KC39HN2501X
Weight : 15.95 lb
filler

Price:
$221.40 $270.00

Availability : Usually Ships in 1-3 Business Days

1-phase jet pump motor features a 2-compartment design with locked ball bearings on shaft end. Voltage-change plug and enlarged conduit box provide easy terminal lead connection.

ItemJet Pump Motor
Motor ApplicationPump
Motor Sub ApplicationJet Pump
Motor DesignCapacitor-Start
Motor Enclosure DesignOpen Dripproof
HP1/2
Nameplate RPM3450
Frame56J
Motor Shaft RotationCCWSE
Voltage115/230
Full Load Amps8.2/4.1
Phase1
Hz60
Motor Mounting TypeFace
Motor Mounting PositionAll Angle
Motor Thermal ProtectionAuto
Motor Service Factor1.6
Max. Ambient Temp.50 Degrees C
Shaft Dia.5/8 in
Shaft Length2 3/8 in
Motor Shaft DesignThreaded
Shaft MaterialStainless Steel
Overall Length11 1/2 in
Body Dia.5 61/100 in
Ins. ClassB
DutyContinuous
Motor Efficiency GroupStandard Efficient
Nominal Efficiency62 %
StandardsCSA Certified, UL Recognized
Voltage Compatibility115, 115/230, 120, 120/240, 230, 240
