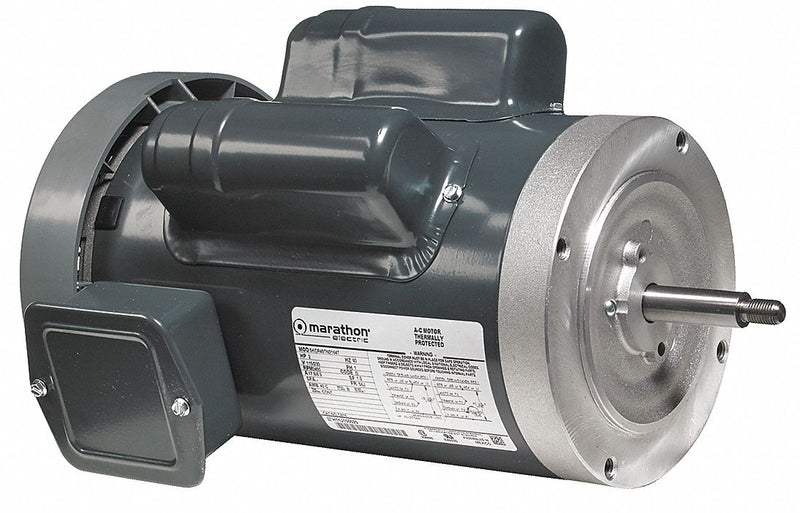

1-phase jet pump motor features a 2-compartment design with locked ball bearings on shaft end. Voltage-change plug and enlarged conduit box provide easy terminal lead connection.
| Item | Jet Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Jet Pump |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 2 |
| Nameplate RPM | 3450 |
| Frame | 56J |
| Motor Shaft Rotation | CCWSE |
| Voltage | 115/230 |
| Full Load Amps | 17.8/8.9 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Face |
| Motor Mounting Position | All Angle |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1 |
| Max. Ambient Temp. | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 3/8 in |
| Motor Shaft Design | Threaded |
| Shaft Material | Stainless Steel |
| Overall Length | 14 13/16 in |
| Body Dia. | 6 21/50 in |
| Ins. Class | B |
| Duty | Continuous |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 78.5 % |
| Includes | Shaft Slinger and Gasketed Conduit Box |
| Standards | CSA Certified, UL Recognized |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
