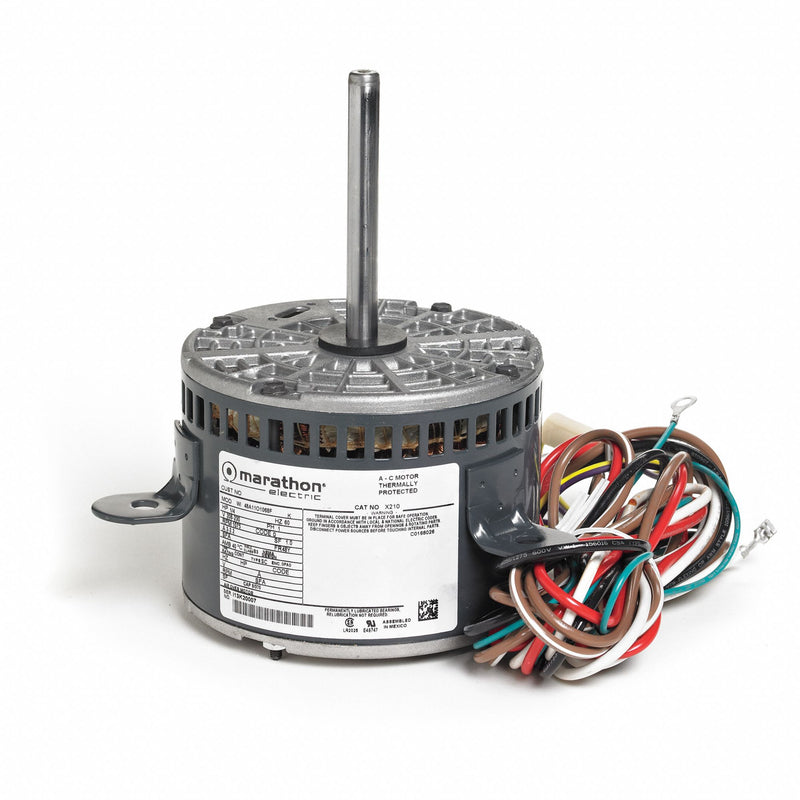

Direct Drive Motor; Motor Design: Permanent Split Capacitor; Phase: 1; HP: 1/5; No. of Speeds: 1; Voltage: 230; Motor Shaft Rotation: CCWSE; Frame: 48Z; Motor Enclosure Design: Open Air-Over; Motor Mounting Type: Lug; Shaft Dia.: 1/2 in; Shaft Length: 2 7/8 in; Number of Shafts: 1; Motor Thermal Protection: Auto; Nameplate RPM: 1075; Motor Application: OEM Replacement; Motor Sub Application: Direct Drive Fan/Blower; Full Load Amps: 1; Hz: 60; Ins. Class: B; Max. Ambient Temp.: 40 Degrees C; Motor Service Factor: 1; Motor Bearings: Ball; Body Dia.: 5 11/16 in; Length Less Shaft: 3 3/4 in; Overall Length: 6 5/8 in; Stud Size: 8-32 UNC- 2A; Capacitor Required: 2MDV3; Application: Fans and Blowers; Standards: CSA (LR2025), UL (E6312)
| Item | Direct Drive Motor |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 1/5 |
| No. of Speeds | 1 |
| Voltage | 230 |
| Motor Shaft Rotation | CCWSE |
| Frame | 48Z |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Lug |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2 7/8 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1075 |
| Motor Application | OEM Replacement |
| Motor Sub Application | Direct Drive Fan/Blower |
| Full Load Amps | 1 |
| Hz | 60 |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Body Dia. | 5 11/16 in |
| Length Less Shaft | 3 3/4 in |
| Overall Length | 6 5/8 in |
| Stud Size | 8-32 UNC- 2A |
| Capacitor Required | 2MDV3 |
| Application | Fans and Blowers |
| Standards | CSA (LR2025), UL (E6312) |
