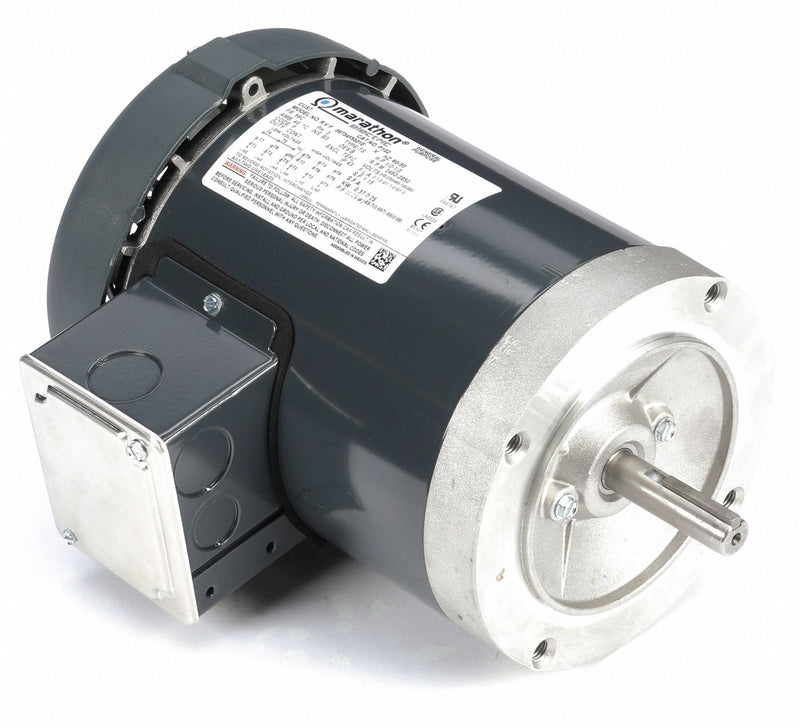

Jet Pump Motor; Motor Application: Pump; Motor Sub Application: Jet Pump; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1/2; Nameplate RPM: 3600; Frame: 56C; Motor Shaft Rotation: CW/CCW; Voltage: 208-230/460; Full Load Amps: 2.1-2.2/1.1/2/1; Phase: 3; Hz: 60/50; Motor Mounting Type: Face; Motor Mounting Position: Horizontal; Motor Bearings: Ball; Motor Service Factor: 1.15; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 5/8 in; Shaft Length: 2 1/8 in; Motor Shaft Design: Keyed; Overall Length: 11 7/8 in; Ins. Class: B; Duty: Continuous; Motor Efficiency Group: Standard Efficient; Nominal Efficiency: 66 %; Standards: CE, CSA Certified, UL Recognized; Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
| Item | Jet Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Jet Pump |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1/2 |
| Nameplate RPM | 3600 |
| Frame | 56C |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 208-230/460 |
| Full Load Amps | 2.1-2.2/1.1/2/1 |
| Phase | 3 |
| Hz | 60/50 |
| Motor Mounting Type | Face |
| Motor Mounting Position | Horizontal |
| Motor Bearings | Ball |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/8 in |
| Motor Shaft Design | Keyed |
| Overall Length | 11 7/8 in |
| Ins. Class | B |
| Duty | Continuous |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 66 % |
| Standards | CE, CSA Certified, UL Recognized |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460 |
