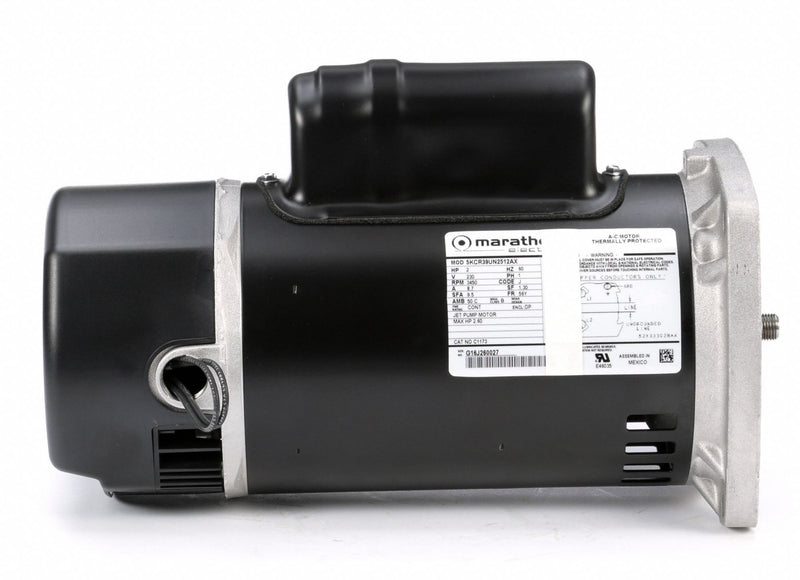

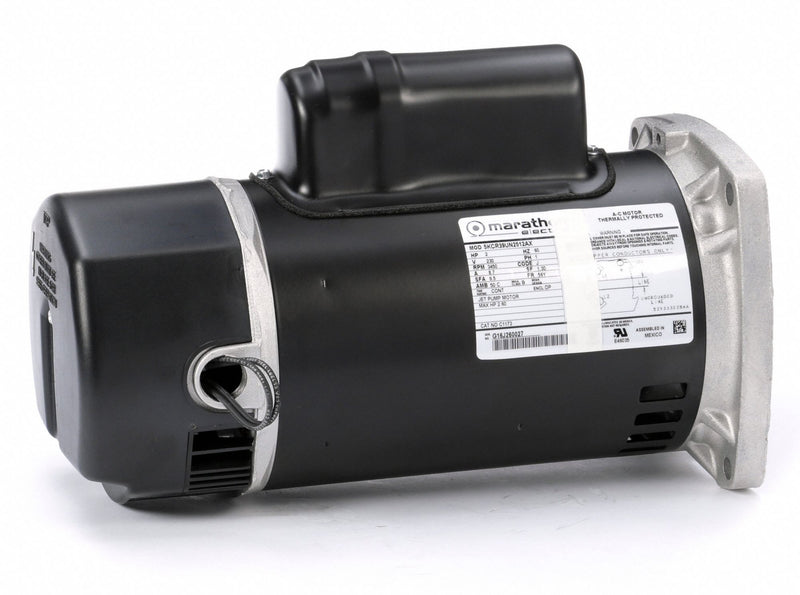

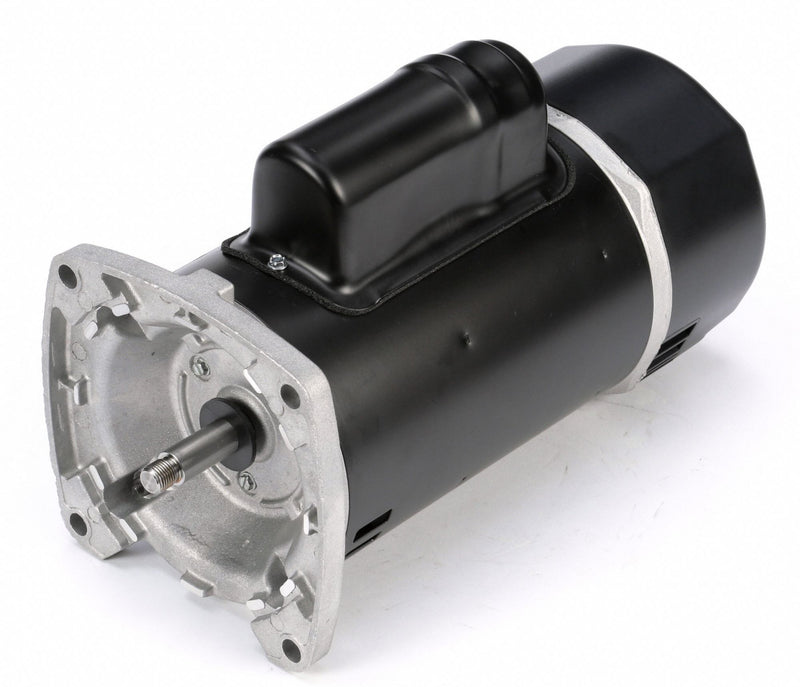

A 2-compartment, capacitor-start/run motor from Marathon Motors can be used as an equivalent replacement for most popular pool and spa manufacturers' pumps. Must equal or exceed service factor and HP for proper replacement., Auto thermal protection protects against damage from overheating,Ball bearings
| Item | Square Flange Pool Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Pool and Spa Pump |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| HP | 2 |
| Nameplate RPM | 3450 |
| Frame | 56Y |
| Voltage | 230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 8.7 |
| Motor Mounting Type | Face |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1.3 |
| Max. Ambient Temp. | 50 Degrees C |
| Motor Shaft Rotation | CCWSE |
| Shaft | Threaded 1/2-20 UNF-2A RH |
| Shaft Material | 303 Stainless Steel |
| Shaft Dia. | 5/8 in |
| Motor Efficiency Group | Energy Efficient |
| RPM Range | 3001-3600 |
| Design | Two Compartment |
| Voltage Compatibility | 115/230, 120/240, 230, 240 |
