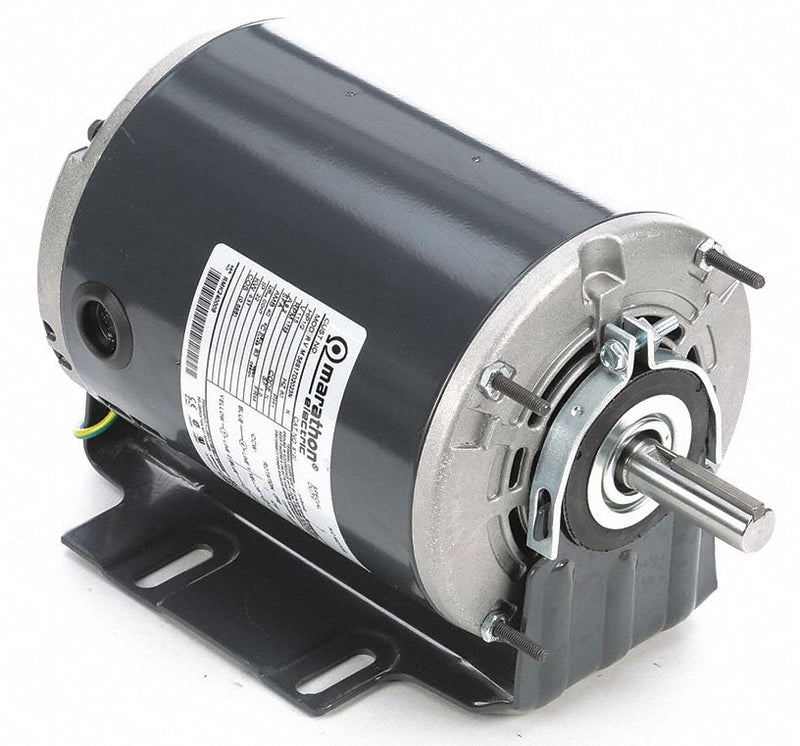

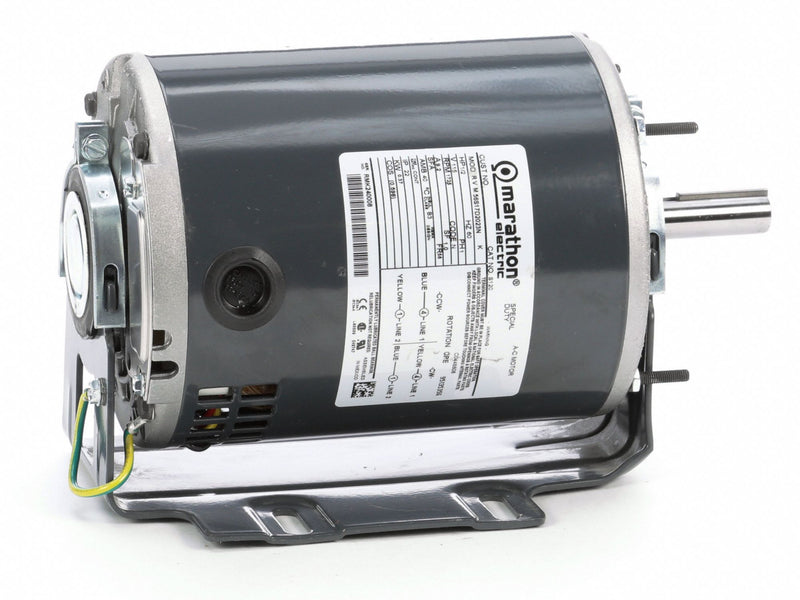

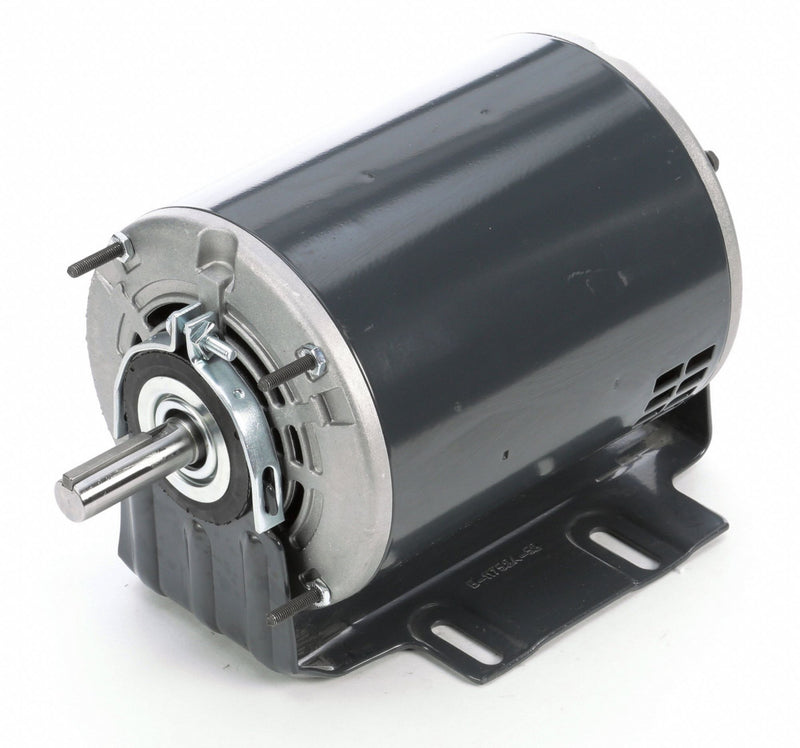

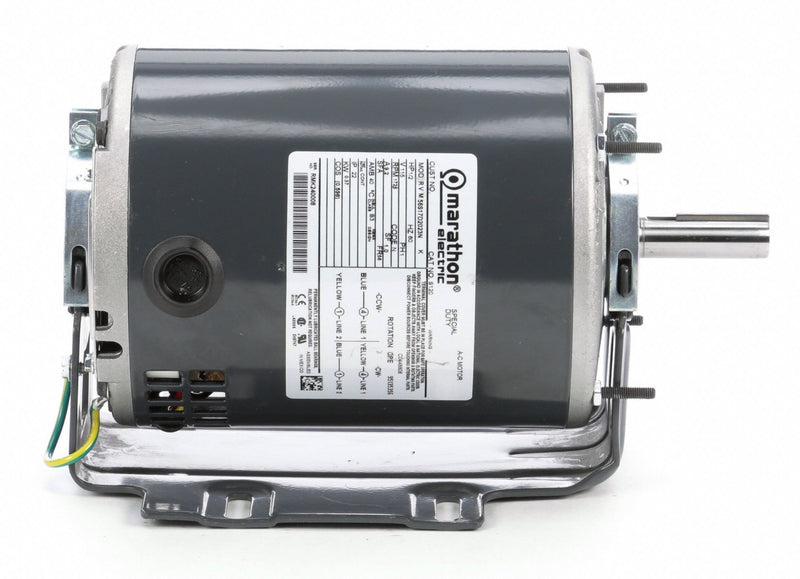

Marathon Motors 1/2 HP, General Purpose Motor, Split-Phase, 1725 Nameplate RPM, 115 Voltage, 56 Frame - 056S17D2023

MarathonSKU: C1544803
MPN : 056S17D2023
Weight : 18.31 lb
filler

Price:
$215.81 $263.18

Availability : Usually Ships in 1-3 Business Days

Keep equipment running with this general purpose motor. It features a split-phase motor design, making is suitable for use in used in belt-drive and direct-drive fans and blowers, small tools, centrifugal pumps, and appliances. It also features an open dripproof motor enclosure design, which is engineered to permit good airflow while resisting the ingress of dripping water. The vents are angled to prevent water from entering the enclosure from above. The motor's shaft also turns a cooling fan to help pull air through the motor.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor DesignSplit-Phase
Motor Enclosure DesignOpen Dripproof
HP1/2
Nameplate RPM1725
Frame56
Voltage115
Hz60
Phase1
Full Load Amps9.2
No. of Speeds1
Motor Mounting TypeCradle Base
Motor Thermal ProtectionNone
Ins. ClassB
Motor Service Factor1
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length2 in
Length Less Shaft8 1/4 in
StandardsCSA (LR2025), UL (E49747)
DutyContinuous
Motor Efficiency GroupStandard Efficient
Nominal Efficiency82.5 %
