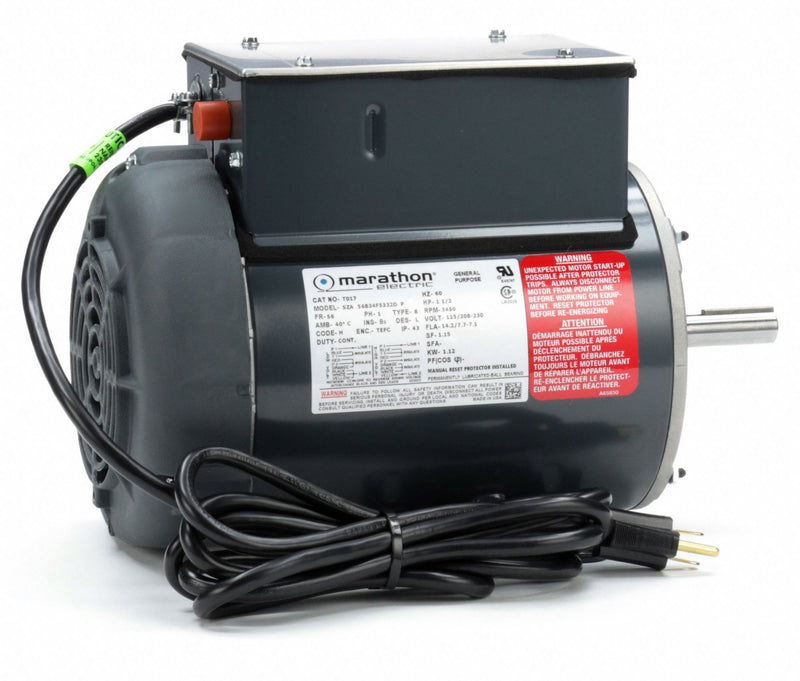

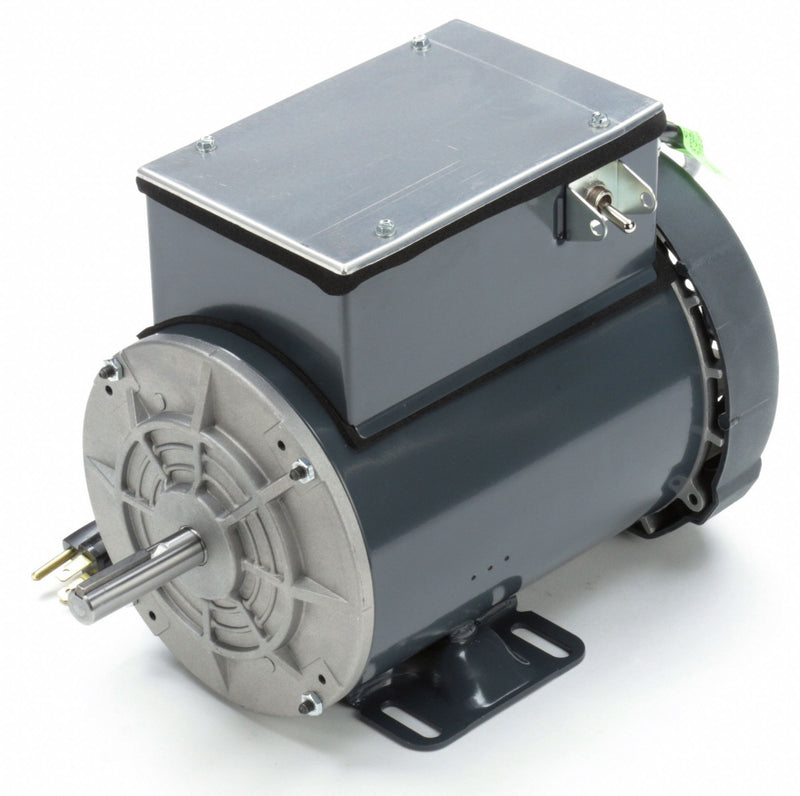

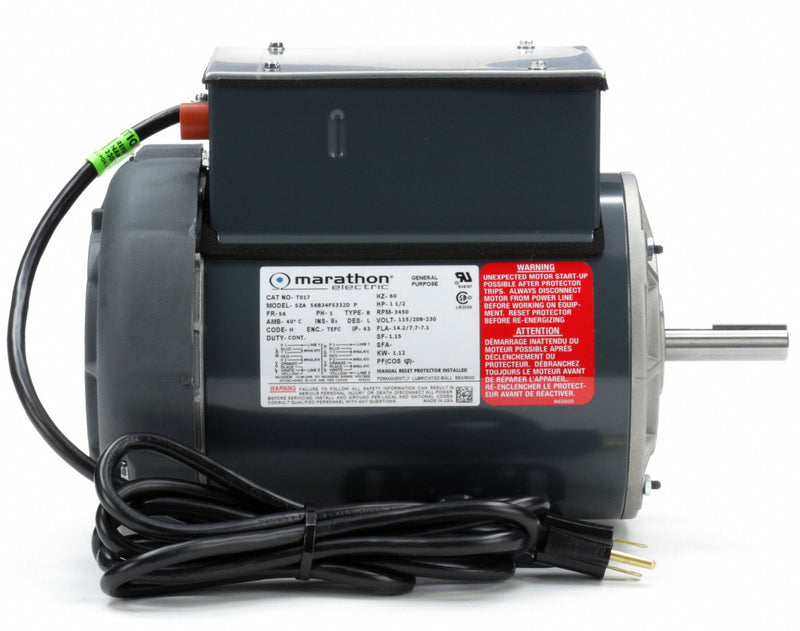

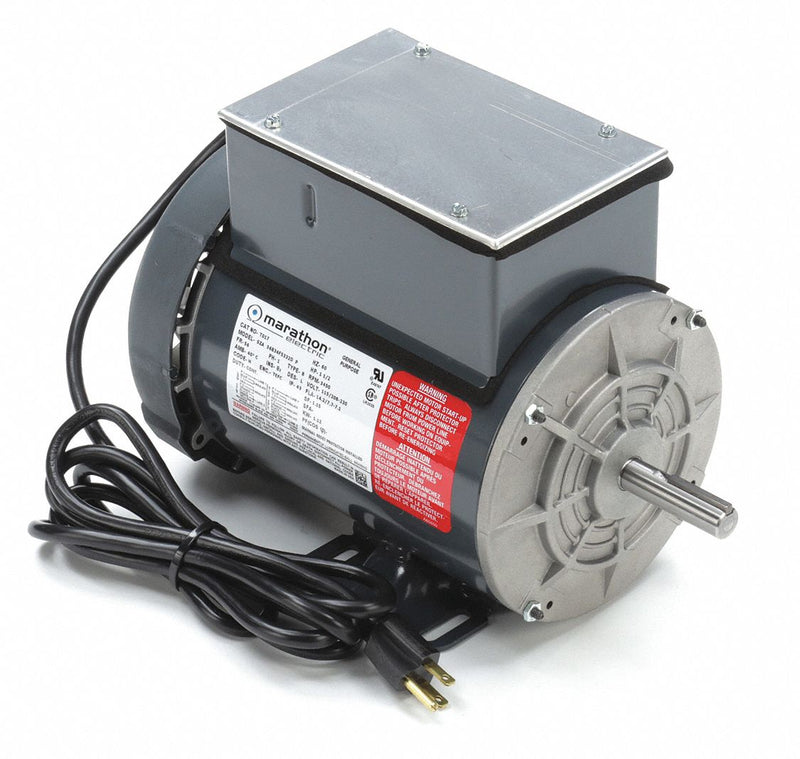

Marathon Motors 1 1/2 HP Power Tool Motor,Capacitor-Start,3450 Nameplate RPM,115/208-230 Voltage,Frame 56 - 056B34F5332

MarathonSKU: C1542988
MPN : 056B34F5332
Weight : 33.9 lb

filler

Price:
$568.50 $693.29

Availability : Usually Ships in 1-3 Business Days

Power Tool Motors,Type: 1-phase Enclosure: totally enclosed fan-cooled Mounting: rigid Service factor: 1.15 Insulation: Class B3 Thermal protection: manual Bearings: ball,Designed for lathes, planers, table saws, and other equipment used in metalworking and woodworking applications. Can be used in dirty and dusty environments. Feature heavy-gauge steel frame/base and dustproof centrifugal starting switch. 1/2- to 1-1/2-HP models have On/Off toggle switch and 8-ft. power cord with 115V plug.,All models are UL Recognized and CSA Certified.

ItemPower Tool Motor
Motor ApplicationPower Tool
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1 1/2
Nameplate RPM3450
Frame56
Voltage115/208-230
Hz60
Phase1
Full Load Amps14.2/7.7-7.1
Motor Mounting TypeRigid Base
Motor Thermal ProtectionManual
Ins. ClassB
Motor Service Factor1.15
Motor BearingsBall
Ambient Temperature40 Degrees C
Motor Shaft RotationCW/CCW
Length Less Shaft10 1/2 in
Shaft Dia.5/8 in
Shaft Length1 7/8 in
StandardsCSA Certified, UL Recocgnized
RPM Range3001-3600
Voltage Compatibility115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240
