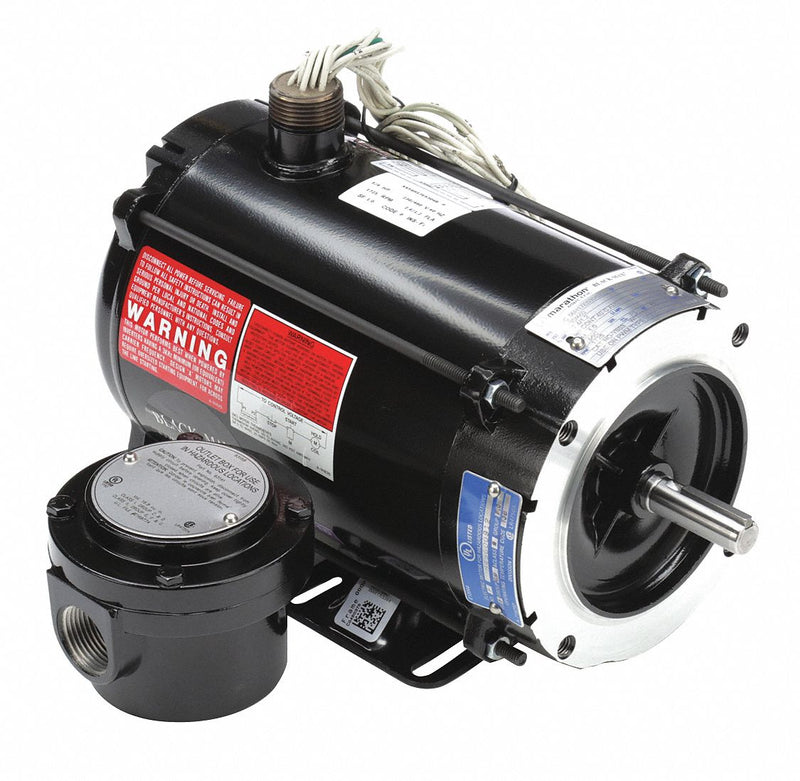

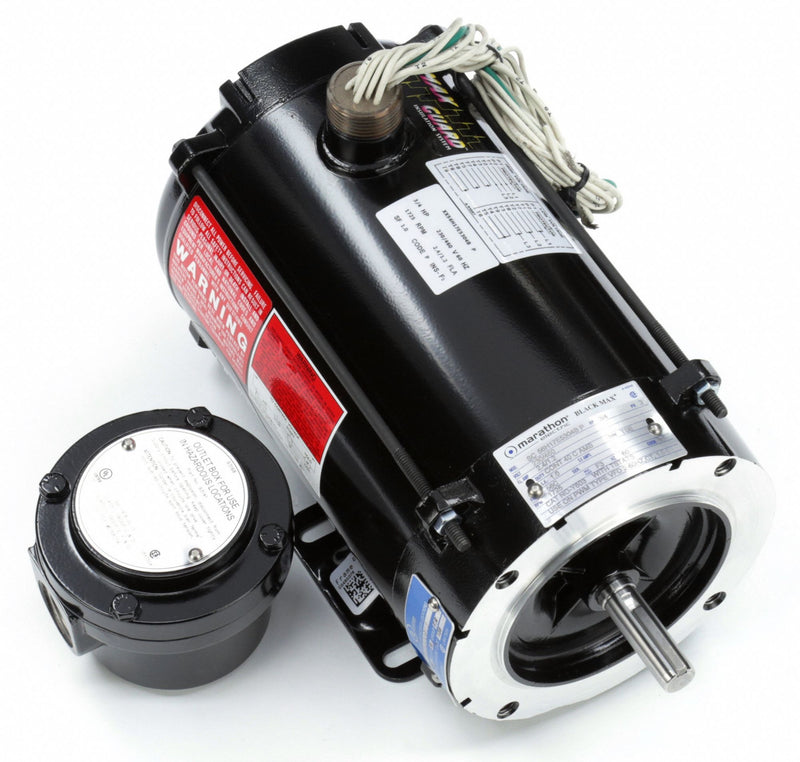

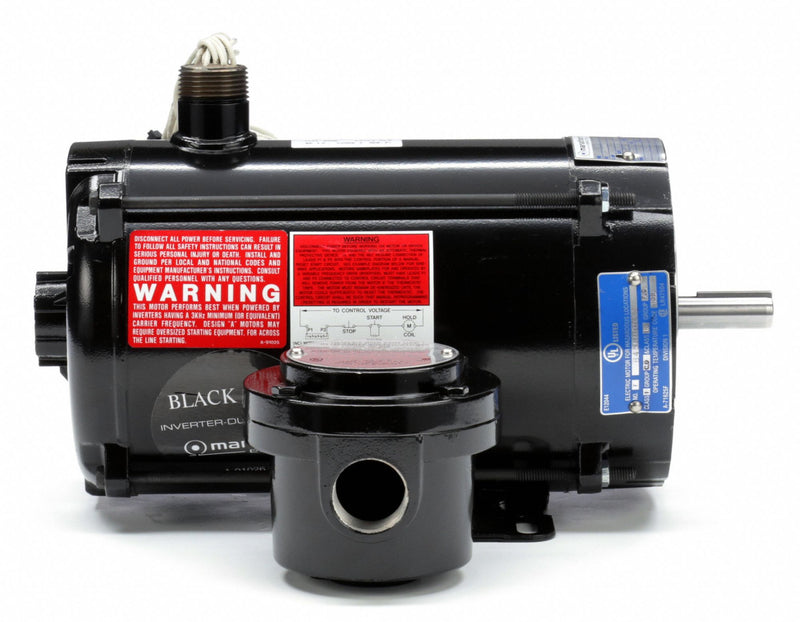

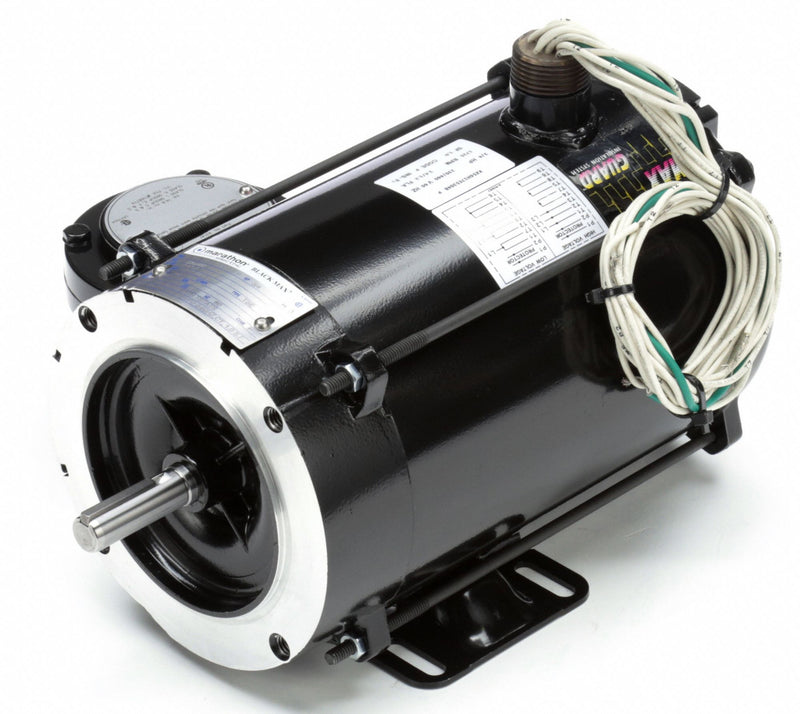

Marathon Motors 3/4 HP Vector Motor,3-Phase,1725 Nameplate RPM,230/460 Voltage,Frame 56C - 056H17E5304

MarathonSKU: C1542982
MPN : 056H17E5304
Weight : 38.55 lb
filler

Price:
$1,243.04 $1,515.90

Availability : Usually Ships in 10-15 Business Days

Black Max 3-Phase Hazardous-Location Vector Motors,Enclosure: totally-enclosed nonventilated Service factor: 1.0 Insulation: Class F3 Temp. code: T3B Max. ambient: 40C Max. Operating Frequency: 120 Hz Bearings: ball Rotation: CW/CCW Duty: continuous,Feature constant torque operation from 0 to base speed on vector drive and constant HP operation to twice base rpm. For use in crane, conveyor, hoist, machine tools, material handling, and other variable-speed applications.,Meet Class I and II (gases and dust); Groups C, D, F, and G standards. UL Listed and CSA Certified.

ItemVector Motor
Motor ApplicationCrane
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Nonventilated
HP3/4
Torque2.25 lb-ft
Nameplate RPM1725
Speed Range1 CT
Max. Speed3,600 RPM
Frame56C
Max. Operating Frequency120 Hz
Voltage230/460
Hz60
Phase3
Full Load Amps2.4/1.2
Motor Mounting TypeFace/Base
Motor Mounting PositionHorizontal
Motor Shaft RotationCW/CCW
Motor BearingsBall
Motor Service Factor1
Motor Thermal ProtectionNone
Ins. ClassF
Insulation FeatureMAX GUARD Class F
Ambient Temperature40 Degrees C
Nominal Efficiency86.5 %
Motor Efficiency GroupStandard Efficient
Motor Frame MaterialRolled Steel
FinishBlack
BaseRigid
DutyContinuous
Encoder AcceptableNo
Encoder ShaftNone
Motor Shaft DesignKeyed
Shaft Dia.5/8 in
Shaft Length2 1/16 in
Overall Length12 1/2 in
StandardsCSA Cert (LR47504), UL Listed (E12044)
Warranty3 yr
RPM Range1701-1800
Voltage Compatibility220-230/460, 230/460, 460
