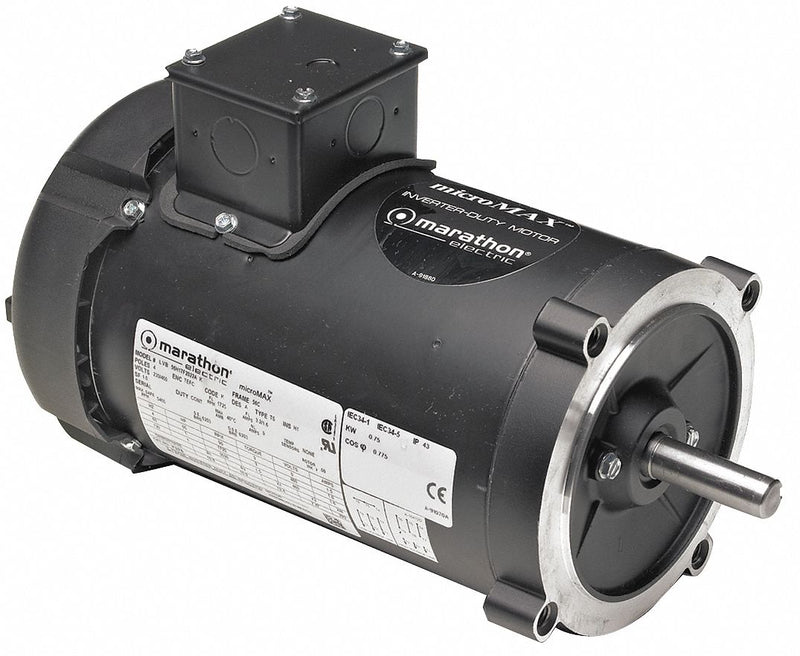

Vector Motor; Motor Application: Crane; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 3/4; Torque: 2.28 ft-lb; Nameplate RPM: 1725; Speed Range: 20:1 CT; Max. Speed: 5,400 RPM; Frame: 56C; Max. Operating Frequency: 120 Hz; Voltage: 575; Hz: 60; Phase: 3; Full Load Amps: 1.1; Motor Mounting Type: Face; Motor Mounting Position: Horizontal; Motor Shaft Rotation: CW/CCW; Motor Bearings: Ball; Motor Service Factor: 1; Motor Thermal Protection: None; Ins. Class: H; Insulation Feature: CR200 Magnet Wire Class H; Ambient Temperature: 40 Degrees C; Nominal Efficiency: 86.5 %; Motor Efficiency Group: Standard Efficient; NEMA Design: B; Motor Frame Material: Rolled Steel; Finish: Black; Duty: Continuous; Encoder Acceptable: No; Encoder Shaft: None; Motor Shaft Design: Keyed; Shaft Dia.: 5/8 in; Shaft Length: 2 1/16 in; Overall Length: 11 3/16 in; Standards: CE, CSA Certified (LR2025), UL Recognized (E49747); RPM Range: 1701-1800; Voltage Compatibility: 575
| Item | Vector Motor |
| Motor Application | Crane |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 3/4 |
| Torque | 2.28 ft-lb |
| Nameplate RPM | 1725 |
| Speed Range | 1 CT |
| Max. Speed | 5,400 RPM |
| Frame | 56C |
| Max. Operating Frequency | 120 Hz |
| Voltage | 575 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 1.1 |
| Motor Mounting Type | Face |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | CW/CCW |
| Motor Bearings | Ball |
| Motor Service Factor | 1 |
| Motor Thermal Protection | None |
| Ins. Class | H |
| Insulation Feature | CR200 Magnet Wire Class H |
| Ambient Temperature | 40 Degrees C |
| Nominal Efficiency | 86.5 % |
| Motor Efficiency Group | Standard Efficient |
| NEMA Design | B |
| Motor Frame Material | Rolled Steel |
| Finish | Black |
| Duty | Continuous |
| Encoder Acceptable | No |
| Encoder Shaft | None |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/16 in |
| Overall Length | 11 3/16 in |
| Standards | CE, CSA Certified (LR2025), UL Recognized (E49747) |
| RPM Range | 1701-1800 |
| Voltage Compatibility | 575 |
